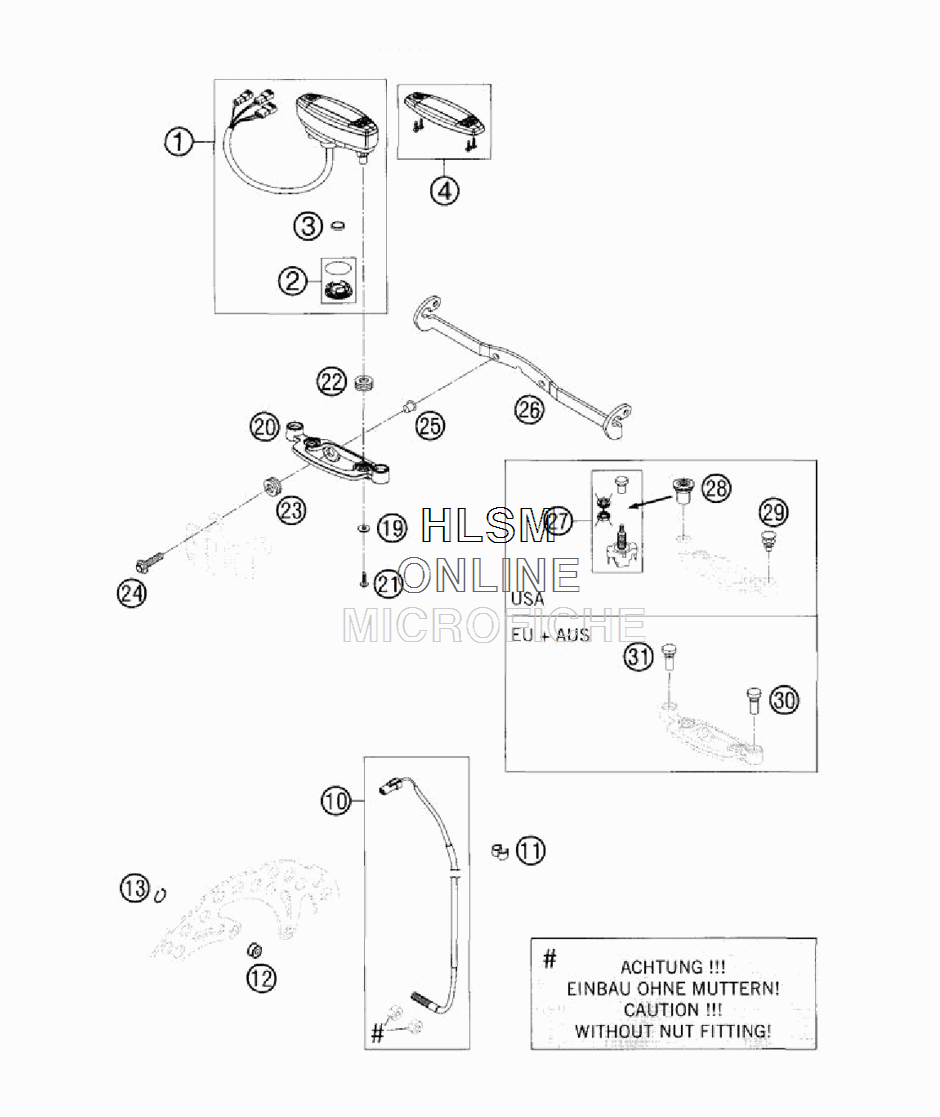

SPEEDOMETER для Ktm 125 SX TYLA RATTRAY - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    54814069000 SPEEDOMETER KM/H F. 21" (REPROGRAMMABLE: KM/H - MPH)
    SPEEDOMETER KM/H F. 21" (REPROGRAMMABLE: KM/H - MPH)
  • 1
    54814069200 SPEEDOMETER KM/H F. 17" (REPROGRAMMABLE: KM/H - MPH)
    SPEEDOMETER KM/H F. 17" (REPROGRAMMABLE: KM/H - MPH)
  • 2
    54814069010 BATTERY COVER F. SPEEDOMETER
    BATTERY COVER F. SPEEDOMETER
  • 3
    58314068000 BATTERY F. SPEEDOM M.A.E.
    BATTERY F. SPEEDOM M.A.E.
  • 4
    54814069020 SPEEDOMETER TOP PART
    SPEEDOMETER TOP PART
  • 10
    54814068000 CABLE FOR DIGITAL SPEEDOM.
    CABLE FOR DIGITAL SPEEDOM.
  • 11
    55011022100 CLAMP 6/8MM BLACK
    CLAMP 6/8MM BLACK
  • 12
    54814069050 MAGNET FOR DIGITAL SPEEDOM.
    MAGNET FOR DIGITAL SPEEDOM.
  • 13
    0471009104 CIRCLIP DIN0471- 9X1 INOX
    CIRCLIP DIN0471- 9X1 INOX
  • 19
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 20
    54814060000 SPEEDOMETER BRACKET
    SPEEDOMETER BRACKET
  • 21
    0016050121 SCREW FOR PLASTIC D=5X12
    SCREW FOR PLASTIC D=5X12
  • 22
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 23
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 24
    0014060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 25
    58314060050 SPACER BUSH. F SPEEDOMETER BRACKET
    SPACER BUSH. F SPEEDOMETER BRACKET
  • 26
    58314033100 FLASHER BRACKET
    FLASHER BRACKET
  • 27
    55011599000 PULL SWITCH LOOSE
    PULL SWITCH LOOSE
  • 28
    54814060050 SPEC. NUT F. PULL SWITCH WS=17
    SPEC. NUT F. PULL SWITCH WS=17
  • 29
    50210086000 COVERING CAP SFL16
    COVERING CAP SFL16
  • 30
    58011021300 HBEAM INDICATOR LIGHT BLUE
    HBEAM INDICATOR LIGHT BLUE
  • 31
    58011024300 FLASHER INDICAT LIGHT GREEN
    FLASHER INDICAT LIGHT GREEN
