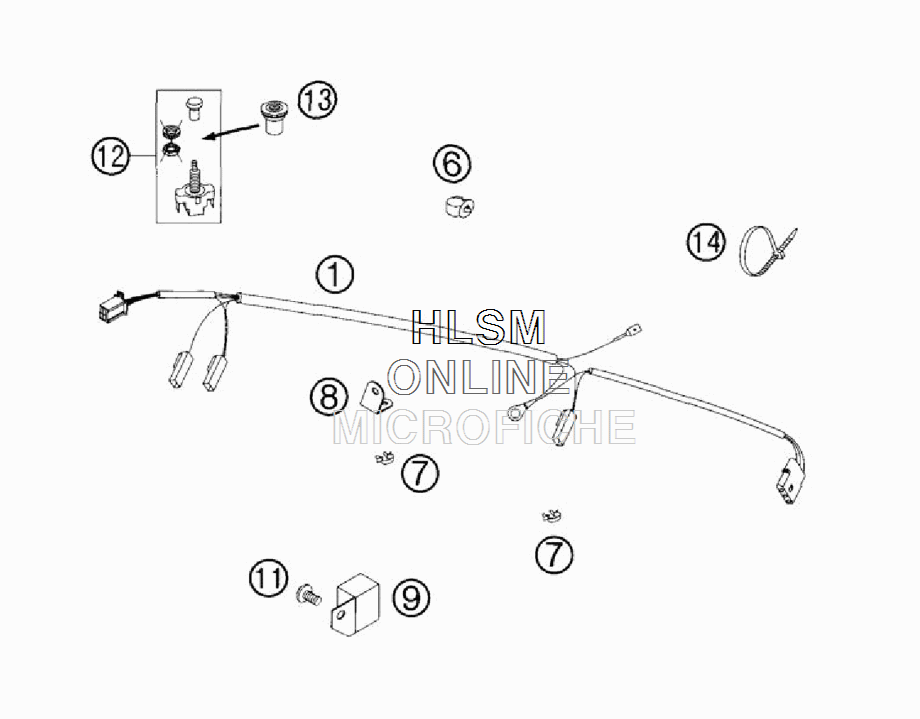

WIRING HARNESS (USA) для Ktm 125 EXC - 2005 года выпуска`
-
№АртикулНазвание
-
154811075000 WIRING HARNESSWIRING HARNESS
-
354811001050 CABLE FOR HEAD LIGHTCABLE FOR HEAD LIGHT
-
449011435000 BULB 12V 5W (W2,1X9.5D)BULB 12V 5W (W2,1X9.5D)
-
658111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
757013072000 WIRING HOLDER 12MMWIRING HOLDER 12MM
-
757013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
854611090000 RETAINING PLATE FOR BATTERYRETAINING PLATE FOR BATTERY
-
954711034000 VOLTAGE REGULATOR KOKU.VOLTAGE REGULATOR KOKU.
-
110014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
1255011599000 PULL SWITCH LOOSEPULL SWITCH LOOSE
-
1354814060050 SPEC. NUT F. PULL SWITCH WS=17SPEC. NUT F. PULL SWITCH WS=17
-
1444011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
1444011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
