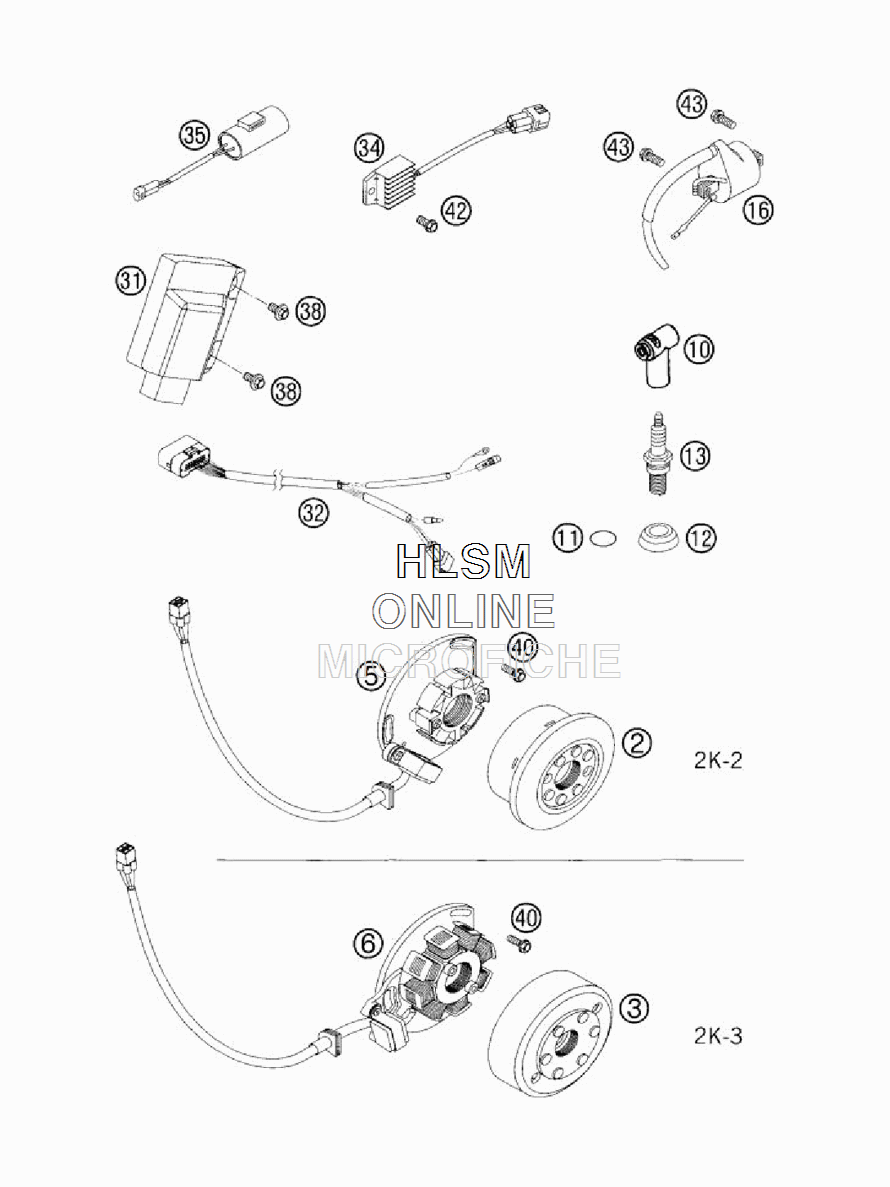

IGNITION SYSTEM 2K-2 + 2K-3 для Ktm 125 EXC - 2005 года выпуска

  • №
    Артикул
    Название
  • 2
    54739005144 FLYWHEEL KOKUSAN 2K-2 CPL.
    FLYWHEEL KOKUSAN 2K-2 CPL.
  • 3
    50339005200 FLYWHEEL KOKUSAN 2K-3
    FLYWHEEL KOKUSAN 2K-3
  • 5
    54839104000 STATOR KOKUSAN 2K-2
    STATOR KOKUSAN 2K-2
  • 6
    54839204000 STATOR KOKUSAN 2K-3
    STATOR KOKUSAN 2K-3
  • 10
    47039090000 SPARK PLUG CAP NGK REINFORC.
    SPARK PLUG CAP NGK REINFORC.
  • 11
    0770150040 O-RING 15,00X4,00 NBR 70
    O-RING 15,00X4,00 NBR 70
  • 13
    50339093100 SPARK PLUG NGK BR 9EVX
    SPARK PLUG NGK BR 9EVX
  • 16
    50339006000 IGNLCOIL KOKU.3834
    IGNLCOIL KOKU.3834
  • 31
    50339031600 CDI UNIT
    CDI UNIT
  • 32
    54839032000 WIRING HARNESS FOR CDI 2-ST.
    WIRING HARNESS FOR CDI 2-ST.
  • 34
    80011034000 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 35
    50311035000 CONDENSATOR 2200MFADP-48
    CONDENSATOR 2200MFADP-48
  • 38
    0014060103 HH COLLAR SCREW M6X10 WS=8
    HH COLLAR SCREW M6X10 WS=8
  • 40
    0015050163 HH COLLAR SCREW M5X16 WS=8
    HH COLLAR SCREW M5X16 WS=8
  • 42
    0015060123 HH COLLAR SCREW M6X12 WS=8
    HH COLLAR SCREW M6X12 WS=8
  • 43
    0015060163 HH COLLAR SCREW M6X16 WS=8
    HH COLLAR SCREW M6X16 WS=8
