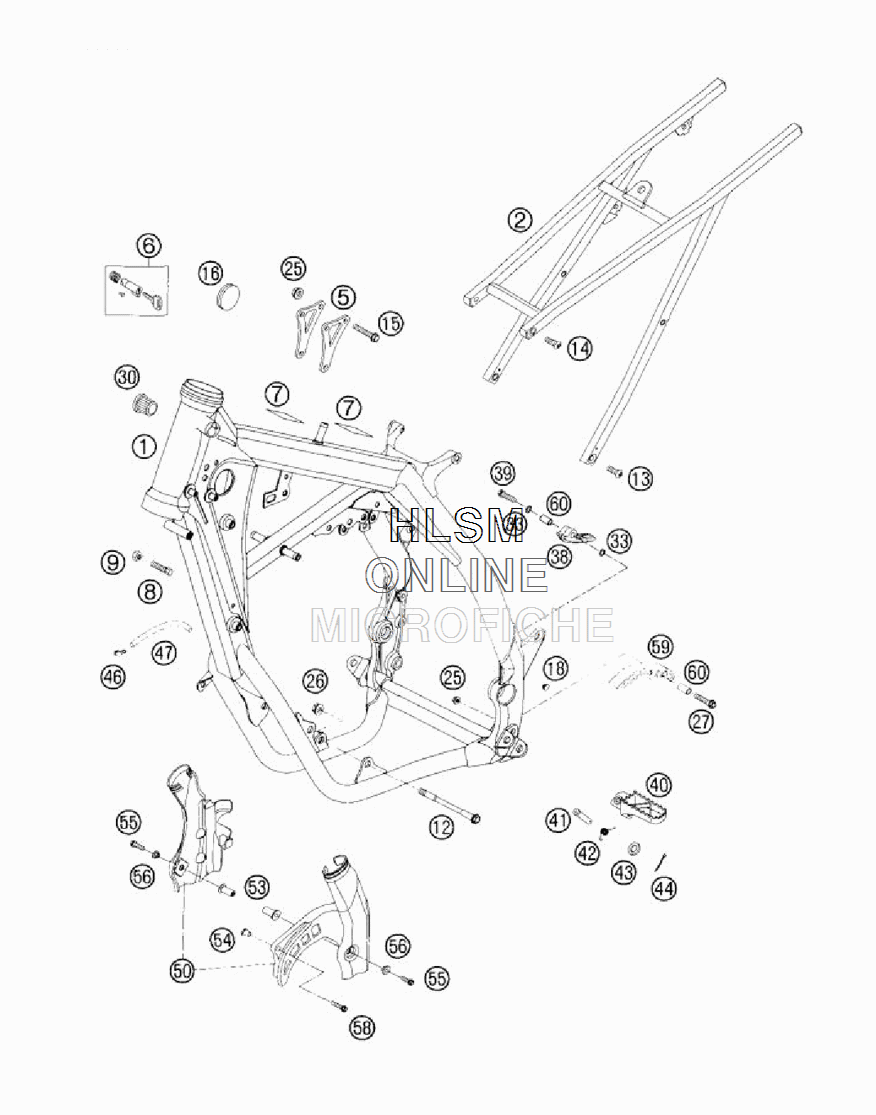

FRAME W/ SUB FRAME для Ktm 125 EXC - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    5030300190096 FRAME (USA)
    FRAME (USA)
  • 1
    5030310100096 FRAME (EURO)
    FRAME (EURO)
  • 2
    54803002344 SUB FRAME CPL. 2-T EXC
    SUB FRAME CPL. 2-T EXC
  • 5
    50303013000 REINFORCING BRACKET
    REINFORCING BRACKET
  • 6
    71003007000 STEERING HEAD LOCK CPL. ZADI
    STEERING HEAD LOCK CPL. ZADI
  • 7
    50307012000 ADH. FOIL TRANSP. 80X80 MM
    ADH. FOIL TRANSP. 80X80 MM
  • 8
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 9
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 12
    54603013000 ENGINE BRAC.SCR. M1 0X105 WS=13
    ENGINE BRAC.SCR. M1 0X105 WS=13
  • 13
    54610052000 SPROCKET SCREW-AH M8X20 WS=6
    SPROCKET SCREW-AH M8X20 WS=6
  • 14
    54510052100 SPROCKET SCREW-AH M8X26 WS=6
    SPROCKET SCREW-AH M8X26 WS=6
  • 15
    56530079000 COLLAR SCREW M8X42 WS=13 10.9
    COLLAR SCREW M8X42 WS=13 10.9
  • 16
    54606004000 PLUG 37MM
    PLUG 37MM
  • 18
    54403135000 PLASTIC CAP SFL10
    PLASTIC CAP SFL10
  • 25
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 26
    54310086100 SELF LOCKING NUT M10 CU WS=14
    SELF LOCKING NUT M10 CU WS=14
  • 27
    0015080353 HH COLLAR SCREW M 8X35 WS=10
    HH COLLAR SCREW M 8X35 WS=10
  • 30
    42007049000 PLASTIC CAP
    PLASTIC CAP
  • 33
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 38
    54804067000 CHAIN SLIDING PIECE
    CHAIN SLIDING PIECE
  • 39
    0015080303 HH COLLAR SCREW M 8X30 WS=10
    HH COLLAR SCREW M 8X30 WS=10
  • 40
    59003040250 FOOT PED US SILVER
    FOOT PED US SILVER
