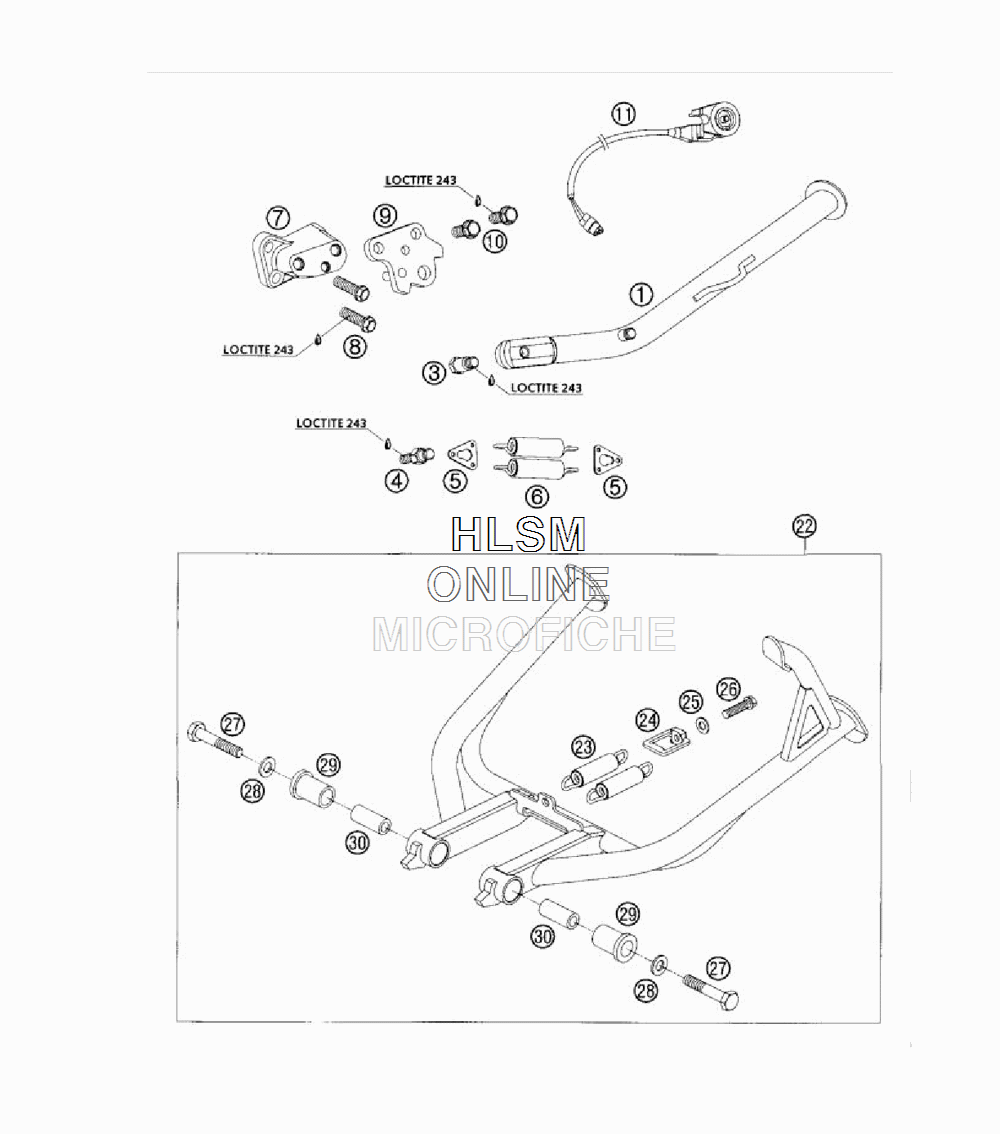

SIDE AND CENTER STAND для Ktm 950 Adventure S - 2004 года выпуска
-
№АртикулНазвание
-
160003023000 SIDESTAND LC8 ADV.S L=349MMSIDESTAND LC8 ADV.S L=349MM
-
358203027200 SCREW FOR SIDE STAND M10X26,7SCREW FOR SIDE STAND M10X26,7
-
460003028001 SCREW SIDE STAND SPRINGSCREW SIDE STAND SPRING
-
560003028003 SUPPORT SIDE STAND SPRINGSUPPORT SIDE STAND SPRING
-
660003024000 SPRING FOR SIDE STANDSPRING FOR SIDE STAND
-
760003026000 SIDE STAND BRACKETSIDE STAND BRACKET
-
80015100303 HH COLLAR SCREW M10X30 WS=13HH COLLAR SCREW M10X30 WS=13
-
960003023001 SIDE STAND PICKUP CPL.SIDE STAND PICKUP CPL.
-
100015100243 HH COLLAR SCREW M10X24 WS=13HH COLLAR SCREW M10X24 WS=13
-
1160011045000 SIDE STAND SWITCHSIDE STAND SWITCH
-
2260003022044 CENTER STAND KIT L=379CENTER STAND KIT L=379
-
2360003030000 SPRING FOR CENTER STANDSPRING FOR CENTER STAND
-
2460003022115 SPRING TENSIONERSPRING TENSIONER
-
250125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
260015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
2756503093000 SPECIAL SCREW M10X55 WS=17SPECIAL SCREW M10X55 WS=17
-
280125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
2960003022020 BEARING BUSH CENTER STANDBEARING BUSH CENTER STAND
-
3060003022021 BUSH CENTER STANDBUSH CENTER STAND
