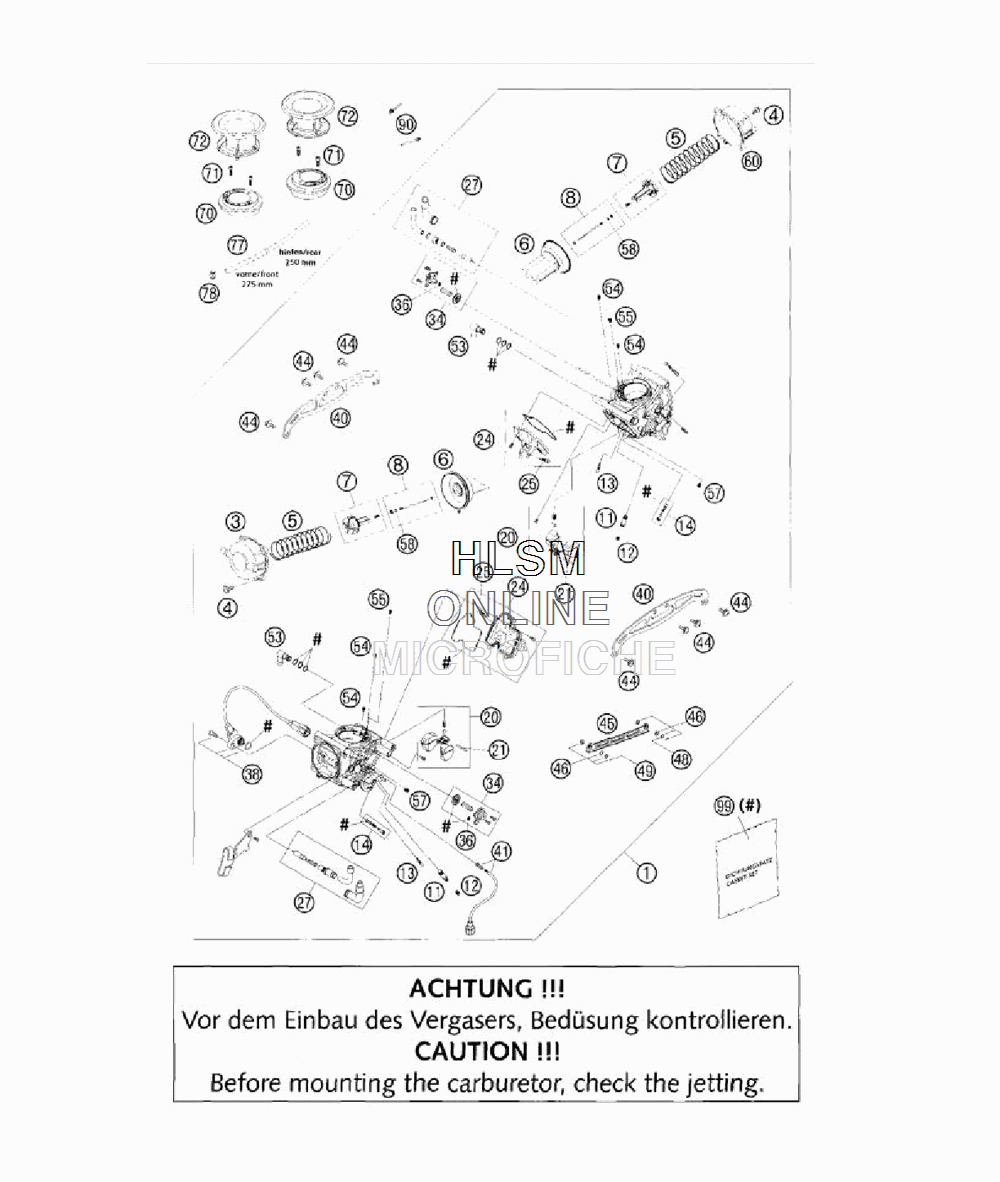

CARBURETOR KEIHIN CVRD 43 для Ktm 950 Adventure S - 2004 года выпуска`
-
№АртикулНазвание
-
160031001000 CARBURETOR CPL. LC8 CVRD 43 (EURO/AUS)CARBURETOR CPL. LC8 CVRD 43 (EURO/AUS)
-
160031001100 CARBURETOR CPL. USA CVRD 43 (USA)CARBURETOR CPL. USA CVRD 43 (USA)
-
360031027000 DIAPHRAGM COV. KEIHIN FRONT (EURO/AUS)DIAPHRAGM COV. KEIHIN FRONT (EURO/AUS)
-
360031127000 DIAPHRAGM C. FR/RE W.O. EPC-C. (USA)DIAPHRAGM C. FR/RE W.O. EPC-C. (USA)
-
460031028000 SCREW KEIHINSCREW KEIHIN
-
560031030000 SPRING KEIHIN LC8SPRING KEIHIN LC8
-
660031035000 VACUUM PISTON CPL.VACUUM PISTON CPL.
-
760031032000 JED NEEDLE HOLDER CPL.JED NEEDLE HOLDER CPL.
-
860031034000 JET NEEDLE KEHIN CPL. NDFBJET NEEDLE KEHIN CPL. NDFB
-
1160031083000 JET HOLDERJET HOLDER
-
1260031023150 MAIN JET 150 KEIHINMAIN JET 150 KEIHIN
-
1260031023155 MAIN JET 155 KEIHINMAIN JET 155 KEIHIN
-
1260031023160 MAIN JET 160 KEIHINMAIN JET 160 KEIHIN
-
1260031023165 MAIN JET 165 KEIHINMAIN JET 165 KEIHIN
-
1260031023170 MAIN JET 170 KEIHINMAIN JET 170 KEIHIN
-
1360031007042 IDLE JET 42 KEIHINIDLE JET 42 KEIHIN
-
1460031017000 ADJUST SCREW CPL.ADJUST SCREW CPL.
-
2060031009000 FLOAT CPL.FLOAT CPL.
-
2157331008000 ARM PIN FLOATARM PIN FLOAT
-
2460031011044 FLOAT CHAMBER CPL.FLOAT CHAMBER CPL.
-
2557331155000 DRAIN SCREW FLOAT CHAMBERDRAIN SCREW FLOAT CHAMBER
-
2760031048000 CHOKE CPL.CHOKE CPL.
-
3460031090000 AIR CUT VALVEAIR CUT VALVE
-
3659031058000 U-RINGU-RING
-
3860031077000 THROTTLE POSITION SENSOR CPL.THROTTLE POSITION SENSOR CPL.
-
4060031091000 CARBURETOR CONNECTING PLATECARBURETOR CONNECTING PLATE
-
4160031025000 STOP SCREW CPL.STOP SCREW CPL.
-
4460031094000 SCREW KEIHINSCREW KEIHIN
-
4560031056000 LINK LEVERLINK LEVER
-
4660031087000 LINK LEVER FIXINGLINK LEVER FIXING
-
4857331087000 WASHER LINK LEVERWASHER LINK LEVER
-
490094010103 SPLIT PIN 1,0X10SPLIT PIN 1,0X10
-
5360031013000 HOSE CONNECTORHOSE CONNECTOR
-
5460031037040 AIR JET 40 KEIHINAIR JET 40 KEIHIN
-
5460031037070 AIR JET 70 KEIHINAIR JET 70 KEIHIN
-
5460031037080 AIR JET 80 KEIHINAIR JET 80 KEIHIN
-
5460031037090 AIR JET 90 KEIHINAIR JET 90 KEIHIN
-
5460031037100 AIR JET 100 KEIHINAIR JET 100 KEIHIN
-
5560031047050 AIR JET 50 KEIHINAIR JET 50 KEIHIN
-
5760031051068 STARTER JET 68 KEIHINSTARTER JET 68 KEIHIN
-
5854531629000 CLIP FOR JET NEEDLECLIP FOR JET NEEDLE
-
6060031027100 DIAPHRAGM COV KEIHIN REAR (EURO/AUS)DIAPHRAGM COV KEIHIN REAR (EURO/AUS)
-
6060031127000 DIAPHRAGM C. FR/RE W.O. EPC-C. (USA)DIAPHRAGM C. FR/RE W.O. EPC-C. (USA)
-
7060031041000 CARBURETOR TRUMPET SUPPORTCARBURETOR TRUMPET SUPPORT
-
710912040163 AH SCREW DIN0912-M 4X16AH SCREW DIN0912-M 4X16
-
7260031040000 CARBURETOR TRUMPETCARBURETOR TRUMPET
-
7760007116001 HOSE 6X12 PER METER (BREATHING HOSE)HOSE 6X12 PER METER (BREATHING HOSE)
-
7858031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
9060031029337 SLIDE STOP M5SLIDE STOP M5
-
9960031099000 GASKET SET KEIHINGASKET SET KEIHIN
