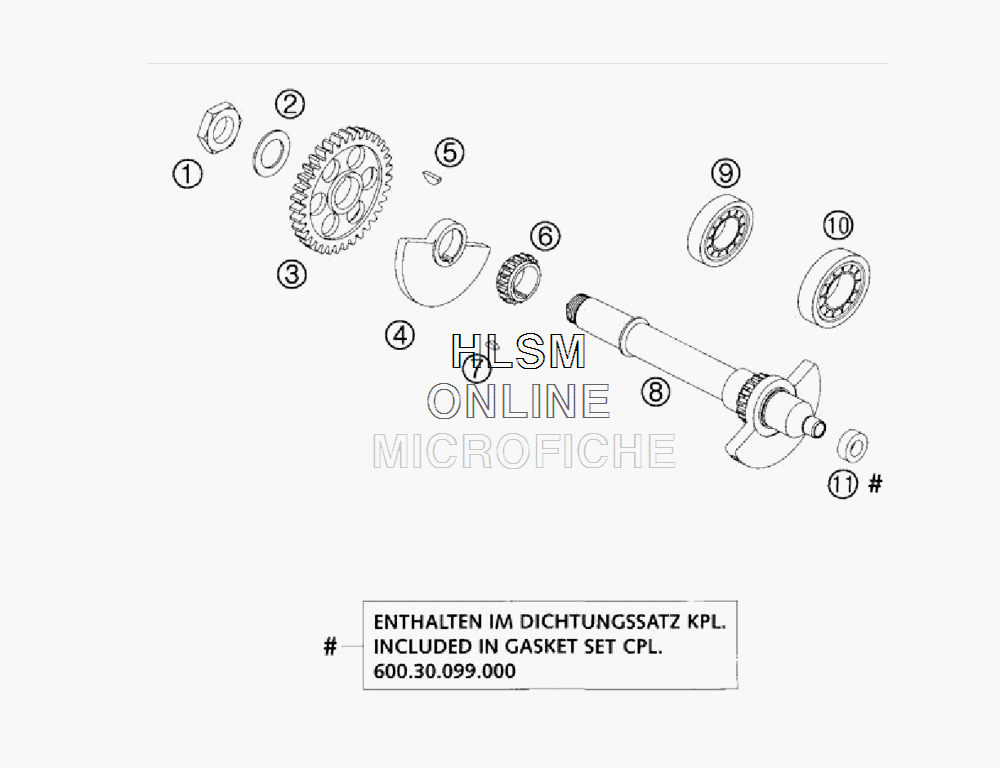

BALANCER SHAFT для Ktm 950 Adventure S - 2004 года выпуска`
-
№АртикулНазвание
-
160036073050 HEXAGON NUT M20X1,5 7MMHEXAGON NUT M20X1,5 7MM
-
254633015000 STOP DISK 20,2X33X1,5STOP DISK 20,2X33X1,5
-
360036080035 TIMING GEAR 35-T BS-DRIVETIMING GEAR 35-T BS-DRIVE
-
460036074050 BALANCE WEIGHTBALANCE WEIGHT
-
50888040050 WOODRUFF KEY DIN6888 4X5X13WOODRUFF KEY DIN6888 4X5X13
-
660036014018 TIMING GEAR 18-TTIMING GEAR 18-T
-
70888030037 WOODRUFF KEY DIN6888-3X3,7WOODRUFF KEY DIN6888-3X3,7
-
860036073000 TIMING VALVE JACKSHAFT CPL.TIMING VALVE JACKSHAFT CPL.
-
960030024000 CYL.ROLLER BEAR. NUP 204/22 C3CYL.ROLLER BEAR. NUP 204/22 C3
-
100625602800 BALL BEARING 60/28 C4 JR2BALL BEARING 60/28 C4 JR2
-
110760122050 SHAFT SEAL RING 12X20X5 BSHAFT SEAL RING 12X20X5 B
