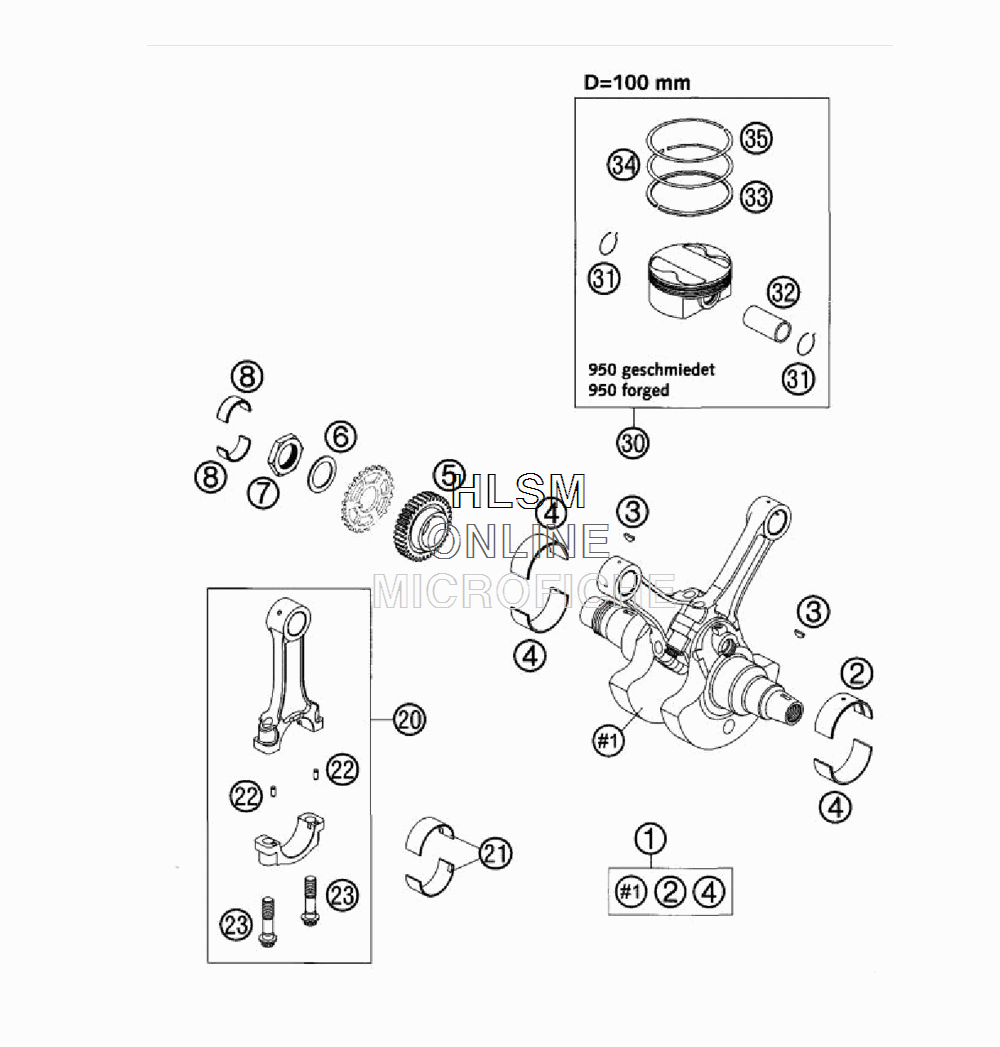

CRANKSHAFT W/ PISTON для Ktm 950 Adventure S - 2004 года выпуска`
-
№АртикулНазвание
-
160030018100 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
260030082000 1 SPLIT BEAR.BUSH SIZE 1 REDSPLIT BEAR.BUSH SIZE 1 RED
-
260030082000 2 SPLIT BEAR.BUSH SIZE 2 BLUESPLIT BEAR.BUSH SIZE 2 BLUE
-
260030082000 3 SPLIT BEAR.BUSH SIZE 3 YELL.SPLIT BEAR.BUSH SIZE 3 YELL.
-
30888040050 WOODRUFF KEY DIN6888 4X5X13WOODRUFF KEY DIN6888 4X5X13
-
460030182000 1 SPLIT BEAR.BUSH SIZE 1 REDSPLIT BEAR.BUSH SIZE 1 RED
-
460030182000 2 SPLIT BEAR.BUSH SIZE 2 BLUESPLIT BEAR.BUSH SIZE 2 BLUE
-
460030182000 3 SPLIT BEAR.BUSH SIZE 3 YELL.SPLIT BEAR.BUSH SIZE 3 YELL.
-
560032023035 PRIMARY PINION 35 TPRIMARY PINION 35 T
-
660032009040 WASHER 33,2X46X2WASHER 33,2X46X2
-
760032009050 HH-NUT M33X1,5 L/S WS46HH-NUT M33X1,5 L/S WS46
-
860030026010 BUSHING BOWL 28X32X13BUSHING BOWL 28X32X13
-
2060030013144 CONNECTING ROD CPL.CONNECTING ROD CPL.
-
2160030013051 BUSH. BOWL PACK. SIZE 1 REDBUSH. BOWL PACK. SIZE 1 RED
-
2160030013052 BUSH.BOWL PACK. SIZE 2 BLUEBUSH.BOWL PACK. SIZE 2 BLUE
-
2160030013053 BUSH.BOWL PACK. SIZE 3 YELL.BUSH.BOWL PACK. SIZE 3 YELL.
-
2260030015061 CYLINDER PINCYLINDER PIN
-
2360030015160 CONNECTING-ROD BOLT M110X1CONNECTING-ROD BOLT M110X1
-
3060030007000I PISTON D=100PISTON D=100
-
3060030007000II PISTON D=100PISTON D=100
-
3158430074000 CIRCLIP 22 X 1,6CIRCLIP 22 X 1,6
-
3258330833000 PISTON PIN 22 X 13 X 60PISTON PIN 22 X 13 X 60
-
3360030032000 OIL SCRAPER RING D=100MMOIL SCRAPER RING D=100MM
-
3460030031000 PISTON RING MIDDLE D=100MMPISTON RING MIDDLE D=100MM
-
3560030030000 L-PISTON RING D=100MM 1,3MML-PISTON RING D=100MM 1,3MM
