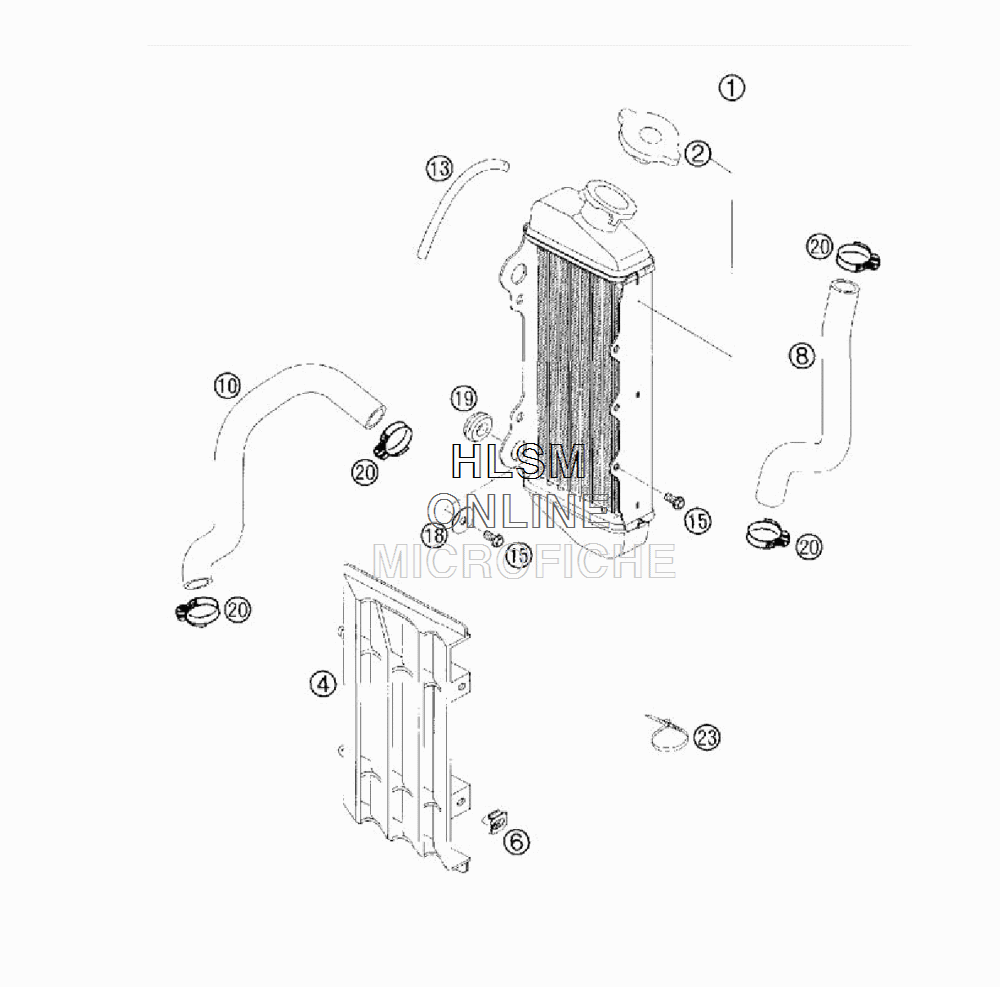

COOLING SYSTEM для Ktm 65 SX - 2004 года выпуска
-
№АртикулНазвание
-
146135008000 RADIATORRADIATOR
-
258035016000 RADIATOR CAP SMALL 20,3 PSIRADIATOR CAP SMALL 20,3 PSI
-
454535034000 RADIATOR PROTECTOR L/SRADIATOR PROTECTOR L/S
-
650235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
846135026000 PREFORMED HOSE CYL.-RADI.PREFORMED HOSE CYL.-RADI.
-
1046135027000 PREFORMED HOSE WAPU-RADI.PREFORMED HOSE WAPU-RADI.
-
1331007107001 PVC-HOSE 6X9 MM PER METREPVC-HOSE 6X9 MM PER METRE
-
150015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
180021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
1941001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
2042013037200 HOSE CLAMP GEMI 12/22HOSE CLAMP GEMI 12/22
-
2344011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
2344011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
