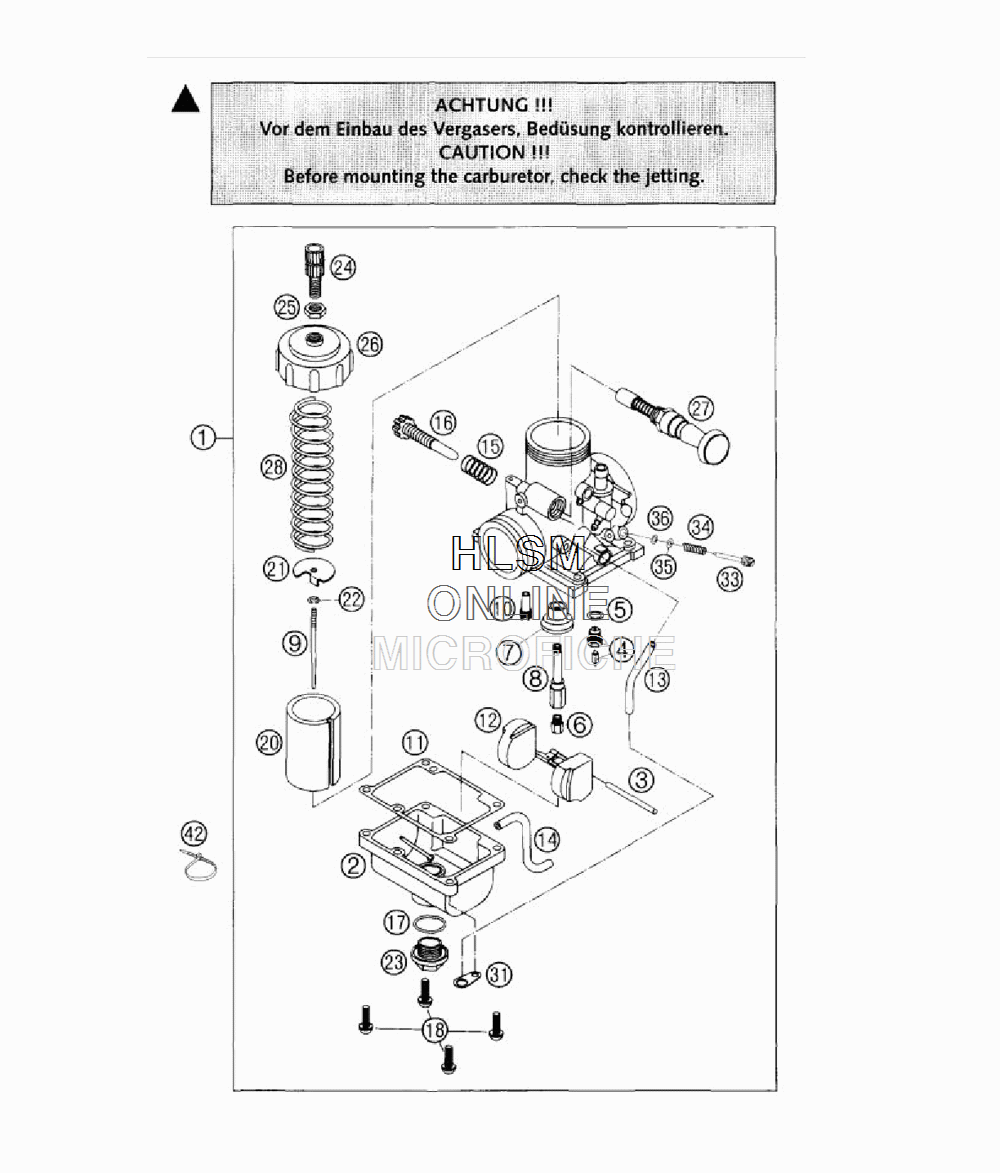

CARBURETOR MIKUNI VM24 для Ktm 65 SX - 2004 года выпуска
-
№АртикулНазвание
-
146131001000 CARBURETOR MIKUNI VM24-505CARBURETOR MIKUNI VM24-505
-
246031011000 FLOAT BODY 5-1 VM24FLOAT BODY 5-1 VM24
-
345031008000 PIN 2,5X27PIN 2,5X27
-
446131020000 NEEDLE VALVE CPL. VM24NEEDLE VALVE CPL. VM24
-
546031018000 GASKET NEEDLE VALVE 9,1X12X0,5GASKET NEEDLE VALVE 9,1X12X0,5
-
645031023185 MAIN JET 185MAIN JET 185
-
645031023190 MAIN JET 190MAIN JET 190
-
645031023195 MAIN JET 195MAIN JET 195
-
645031023200 MAIN JET 200MAIN JET 200
-
645031023205 MAIN JET 205MAIN JET 205
-
746031074000 BUFFLEBUFFLE
-
846131021000 NEEDLE JET 864 0-0NEEDLE JET 864 0-0
-
945031034200 JET NEEDLE MIKUNI 5114JET NEEDLE MIKUNI 5114
-
1045031007025 IDLING JET 25 MIKUNIIDLING JET 25 MIKUNI
-
1145031010100 GASKET FLOAT BOWLGASKET FLOAT BOWL
-
1246031009000 FLOAT VM24FLOAT VM24
-
1352031137001 PVC-HOSE 3X5MMPVC-HOSE 3X5MM
-
1452031137001 PVC-HOSE 3X5MMPVC-HOSE 3X5MM
-
1545031015100 SPRING MIKUNISPRING MIKUNI
-
1646031019000 THROTTLE VALVE SCREW M6X30THROTTLE VALVE SCREW M6X30
-
1746031043000 O-RING 17,5X1,4O-RING 17,5X1,4
-
1845031014016 LINTIL HEAD SCREW M4X16 (SET)LINTIL HEAD SCREW M4X16 (SET)
-
2046131035000 THROTTLE VALVE 1.5THROTTLE VALVE 1.5
-
2146031032000 HOLDING WASHERHOLDING WASHER
-
2245031045000 SPRINGSPRING
-
2346031014000 PLUG SCREW M16 WS=17PLUG SCREW M16 WS=17
-
2457031525000 ADJUSTMENT SCREW M6X0,75ADJUSTMENT SCREW M6X0,75
-
2545031026000 HH-NUT M6X0,75HH-NUT M6X0,75
-
2646031027000 CARBURETOR COVER VM24CARBURETOR COVER VM24
-
2746031048044 COLD STARTER KNOB CPL. VM24COLD STARTER KNOB CPL. VM24
-
2846031030000 THROTTLE VALVE SPRING VM24THROTTLE VALVE SPRING VM24
-
3146031081000 BRACKET FOR BREATHER HOSEBRACKET FOR BREATHER HOSE
-
3346131017000 ADJUSTING SCREW MIKUNIADJUSTING SCREW MIKUNI
-
3445031015000 SPRINGSPRING
-
3546131032000 WASHER ADJUSTING SCREWWASHER ADJUSTING SCREW
-
3646131033000 O-RING ADJUSTING SCREWO-RING ADJUSTING SCREW
-
4244011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
