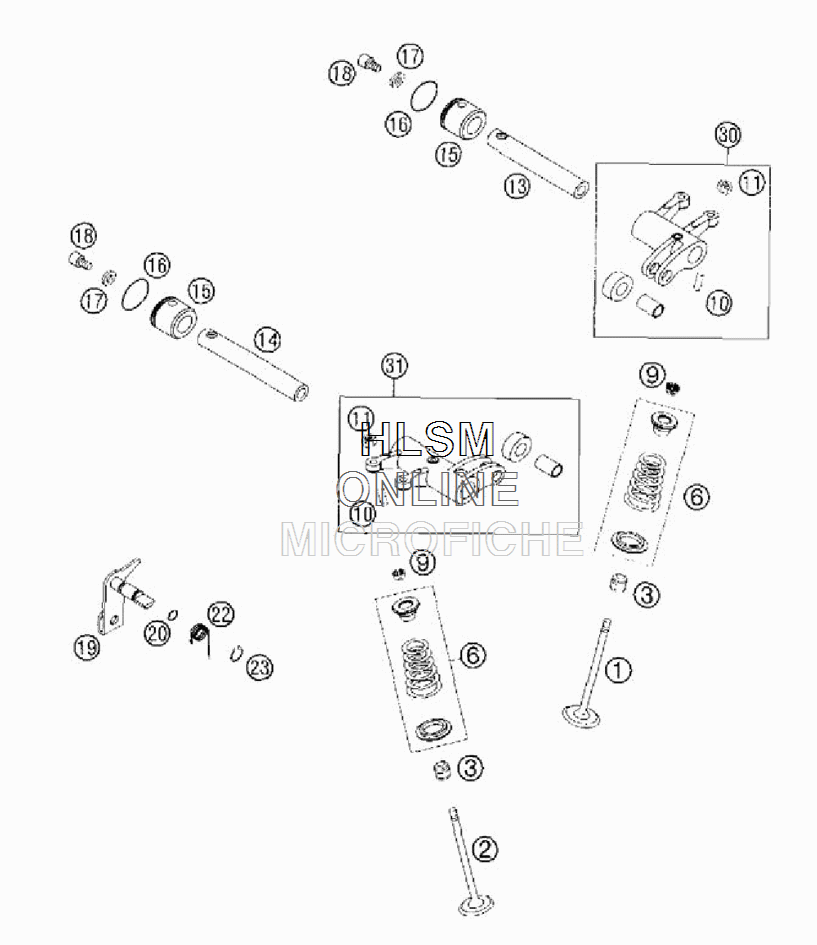

VALVE DRIVE для Ktm 525 SX RFS - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    59036030000 INTAKE VALVE D=35MM
    INTAKE VALVE D=35MM
  • 2
    59036031000 EXHAUST VALVE D=30MM
    EXHAUST VALVE D=30MM
  • 3
    59036027000 VALVE-STEM SEALING
    VALVE-STEM SEALING
  • 6
    59436028044 VALVE SPRING CONICAL CPC.
    VALVE SPRING CONICAL CPC.
  • 9
    59036033000 VALVE COLLET KK 6 H
    VALVE COLLET KK 6 H
  • 10
    59036062000 ADJUSTMENT SCREW M6XO,70
    ADJUSTMENT SCREW M6XO,70
  • 11
    59036062100 NUT M6XO,75
    NUT M6XO,75
  • 13
    59036056000 ROCKER ARM SHAFT INTAKE 82MM
    ROCKER ARM SHAFT INTAKE 82MM
  • 14
    59036057000 ROCKER ARM SHAFT EXHAUST 94MM
    ROCKER ARM SHAFT EXHAUST 94MM
  • 15
    59036061095 END CAP ROCKER ARM SHAFT
    END CAP ROCKER ARM SHAFT
  • 16
    0770191016 O-RING 19,10X9,60 NBR 70
    O-RING 19,10X9,60 NBR 70
  • 17
    59036060010 SHIM ALU 5,2X10X2
    SHIM ALU 5,2X10X2
  • 18
    0912050083 AH SCREW DINO912-M 5X 8
    AH SCREW DINO912-M 5X 8
  • 19
    59036050000 DECOMPRESSION SHAFT CPL.
    DECOMPRESSION SHAFT CPL.
  • 20
    0770051016 O-RING 5,10X1,60 NBR 70
    O-RING 5,10X1,60 NBR 70
  • 22
    59036059000 DECOMPRESSION LEVER SPRING
    DECOMPRESSION LEVER SPRING
  • 23
    0471080000 CIRCLIP D/N0471- 8X0,8
    CIRCLIP D/N0471- 8X0,8
  • 30
    59036060144 ROCKER ARM INTAKE CPL.
    ROCKER ARM INTAKE CPL.
  • 31
    59036061144 ROCKER ARM EXHAUST CPL.
    ROCKER ARM EXHAUST CPL.
