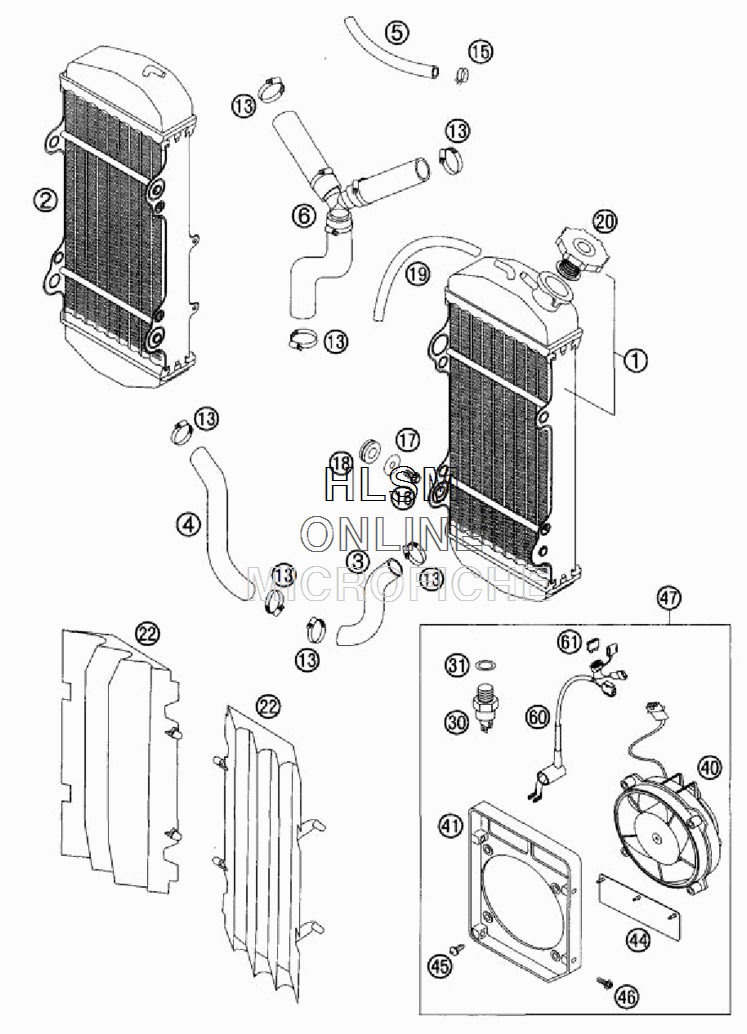

COOLING SYSTEM для Ktm 525 SX RFS - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    59035007300 RADIATOR L/S 45.407
    RADIATOR L/S 45.407
  • 2
    59035008300 RADIATOR R/S 45.308
    RADIATOR R/S 45.308
  • 3
    59035024100 RADIATOR HOSE L/S RAD.-CYL.
    RADIATOR HOSE L/S RAD.-CYL.
  • 4
    59035124000 RADIATORHOSE R/S RADIATOR-C YL.
    RADIATORHOSE R/S RADIATOR-C YL.
  • 5
    54435024001 HOSE ID 7,5 PER METER
    HOSE ID 7,5 PER METER
  • 6
    59035125000 RADIATOR HOSE CYL.HEAD-RAD.
    RADIATOR HOSE CYL.HEAD-RAD.
  • 13
    10001020000 HOSE CLAMP GEMI 16-27
    HOSE CLAMP GEMI 16-27
  • 15
    50231005000 HOSE CLAMP YDNAC 10119 11MM
    HOSE CLAMP YDNAC 10119 11MM
  • 16
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 17
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 18
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 19
    55007016001 PVC-HOSE 7X10 PER METRE
    PVC-HOSE 7X10 PER METRE
  • 20
    59035009000 RADIAT CAP 19,6P51 (1,4BAR)
    RADIAT CAP 19,6P51 (1,4BAR)
  • 22
    59035040000 RADIATOR PROTECT RACING
    RADIATOR PROTECT RACING
  • 30
    58035045000 THERMOSWITCH 80-85 DG
    THERMOSWITCH 80-85 DG
  • 31
    0603142015 ALU SEALRING DIN7603-14X20X1,5
    ALU SEALRING DIN7603-14X20X1,5
  • 40
    58435041000 FAN CPL. 12V
    FAN CPL. 12V
  • 41
    59035044000 FAN CAP
    FAN CAP
  • 44
    58435044050 FAN FLAP RUBBER
    FAN FLAP RUBBER
  • 45
    0081500181 SCREW FOR PLASTIC D=5X18
    SCREW FOR PLASTIC D=5X18
  • 46
    0017060203 SPECIAL SCREW T60 6X20 WS=6
    SPECIAL SCREW T60 6X20 WS=6
  • 47
    59035041044 FAN CPL.
    FAN CPL.
  • 60
    59011079000 FAN WIRING HARNESS
    FAN WIRING HARNESS
  • 61
    58011109005 FUSE 5 A
    FUSE 5 A
