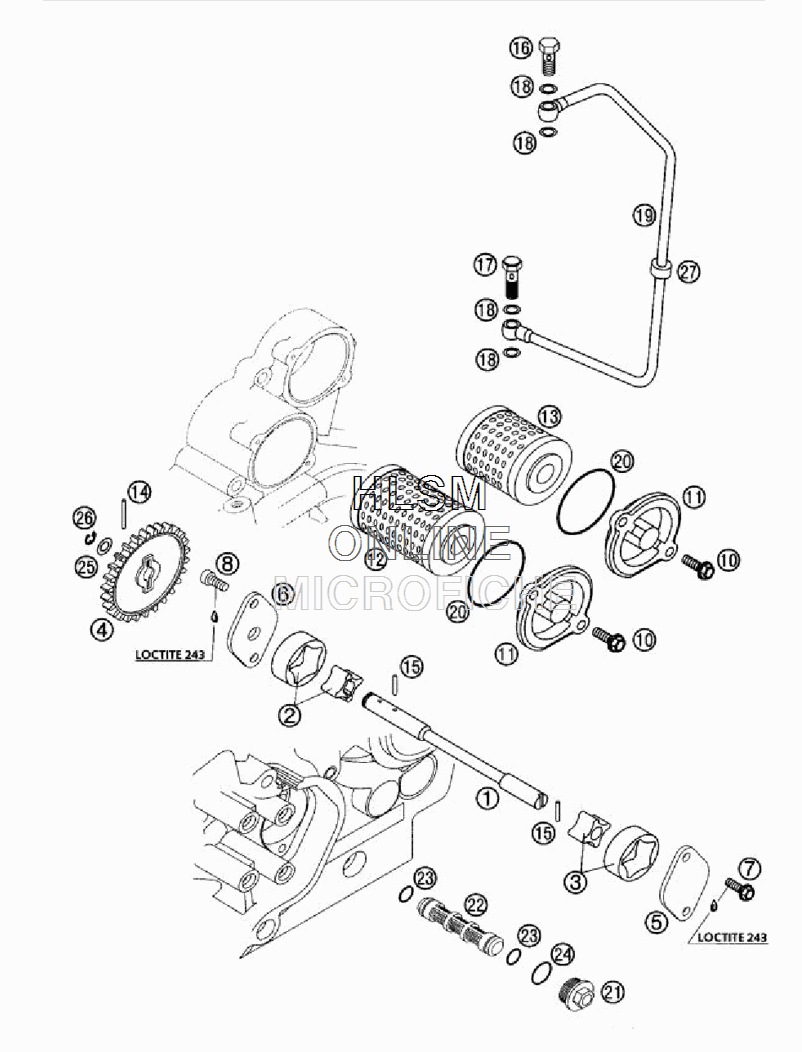

LUBRICATING SYSTEM для Ktm 525 SX RFS - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    59038002000 OIL PUMP SHAFT L=148,5MM
    OIL PUMP SHAFT L=148,5MM
  • 2
    59038011010 OIL PUMP ROTOR CPL. 10MM G-73R
    OIL PUMP ROTOR CPL. 10MM G-73R
  • 3
    59038011012 OIL PUMP ROTOR CPL. 12MM G-95
    OIL PUMP ROTOR CPL. 12MM G-95
  • 4
    58438001000 OIL PUMP GEAR 26-T
    OIL PUMP GEAR 26-T
  • 5
    59038004000 OIL PUMP COVER L/S
    OIL PUMP COVER L/S
  • 6
    59038003000 OIL PUMP COVER R/S 8MM
    OIL PUMP COVER R/S 8MM
  • 7
    0015050163 NH COLLAR SCREW M 5X16 WS=8
    NH COLLAR SCREW M 5X16 WS=8
  • 8
    0984050122 AH SCREW DIN6912-M 5X12
    AH SCREW DIN6912-M 5X12
  • 10
    0015050163 HH COLLAR SCREW M 5X16 WS=8
    HH COLLAR SCREW M 5X16 WS=8
  • 11
    59038041000 OIL FILTER COVER
    OIL FILTER COVER
  • 12
    58038005000 OIL FILTER LONG
    OIL FILTER LONG
  • 13
    59038046000 OIL FILTER SHORT
    OIL FILTER SHORT
  • 14
    0402251980 NEEDLEROL. DIN5402 NRA 2,5X19,8
    NEEDLEROL. DIN5402 NRA 2,5X19,8
  • 15
    0402251180 NEEDLE ROLLER DIN5402 2,5X11,8
    NEEDLE ROLLER DIN5402 2,5X11,8
  • 16
    58038030000 BANJO BOLT M8 X 1 DIN7643
    BANJO BOLT M8 X 1 DIN7643
  • 17
    59038029000 JET SCREW ,,100' M8X1 WS-12
    JET SCREW ,,100' M8X1 WS-12
  • 18
    0603082121 SEAL RING CU DIN7603- 8X12X1
    SEAL RING CU DIN7603- 8X12X1
  • 19
    59038035000 OIL LINE STEEL CASE-CYL.HEAD
    OIL LINE STEEL CASE-CYL.HEAD
  • 20
    0770400025 O-RING 40,00X2,50 NBR 70
    O-RING 40,00X2,50 NBR 70
  • 21
    59038017000 PLUG M20X1,5 WS=13
    PLUG M20X1,5 WS=13
  • 22
    59038016000 OIL SCREEN 15X83MM
    OIL SCREEN 15X83MM
  • 23
    0770125015 O-RING 12,5X1,5 NBR
    O-RING 12,5X1,5 NBR
  • 24
    0770020170 O-RING 17,17X1,78 GLO
    O-RING 17,17X1,78 GLO
  • 25
    58038007755 STOP DISK 8,1 X 15 X 0,5
    STOP DISK 8,1 X 15 X 0,5
  • 26
    0799060000 TAB WASHER DIN6799-R5 6,0
    TAB WASHER DIN6799-R5 6,0
  • 27
    58405098000 RUBBERBUFFER 8X17X10 SILENC
    RUBBERBUFFER 8X17X10 SILENC
