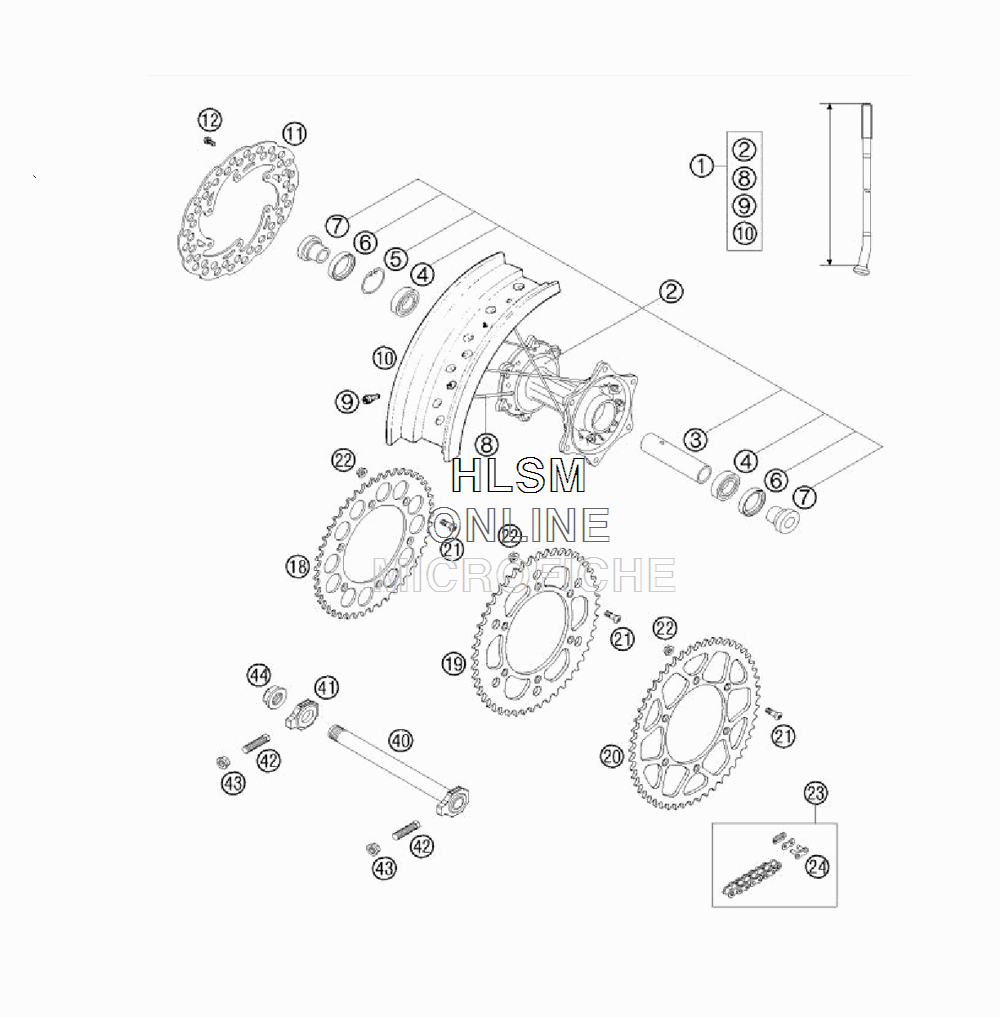

REAR WHEEL 17'' для Ktm 450 SMC - 2004 года выпуска`
-
№АртикулНазвание
-
157310001344 REAR WHEEL CPL.5X17" UNGED.REAR WHEEL CPL.5X17" UNGED.
-
25481001004496 REAR HUB CPL. GOLDREAR HUB CPL. GOLD
-
359010011000 BUSHING SPACER TUBE 121,5MMBUSHING SPACER TUBE 121,5MM
-
40625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
754610016000 BUSHINGBUSHING
-
857310071000 SPOKE M5X189-36G 17"SPOKE M5X189-36G 17"
-
958309072000 SPOKE NIPPLE M5-TA (8X21MM)SPOKE NIPPLE M5-TA (8X21MM)
-
105731007010030 REAR RIM 5,0X17" EXCEL BLACKREAR RIM 5,0X17" EXCEL BLACK
-
1154810060000 BRAKE DISC REAR D=220MMBRAKE DISC REAR D=220MM
-
1259009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1858310051038 REAR SPROCKET 38-TREAR SPROCKET 38-T
-
1858310151040 REAR SPROCKET 40-TREAR SPROCKET 40-T
-
1858310051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
1858310151045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
1958310151048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
1958310151049 REAR SPROCKET 49-TREAR SPROCKET 49-T
-
2058310151050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
2058310151051 REAR SPROCKET 51-TREAR SPROCKET 51-T
-
2058310151052 REAR SPROCKET 52-TREAR SPROCKET 52-T
-
2154510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
2254310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2359210100120 CHAIN RK 520MXZ ND 120 ROLLS (CHAIN MUST BE CUT TO LENGTH)CHAIN RK 520MXZ ND 120 ROLLS (CHAIN MUST BE CUT TO LENGTH)
-
2459210066000 MASTER LINK CARAT (520)MASTER LINK CARAT (520)
-
4050310085044 WHEEL SPINDLE RE. CPL.265MMWHEEL SPINDLE RE. CPL.265MM
-
4150310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
4250304040000 SPEC. SCREW M10X1,25X40 WS=10SPEC. SCREW M10X1,25X40 WS=10
-
4358414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
4450310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
