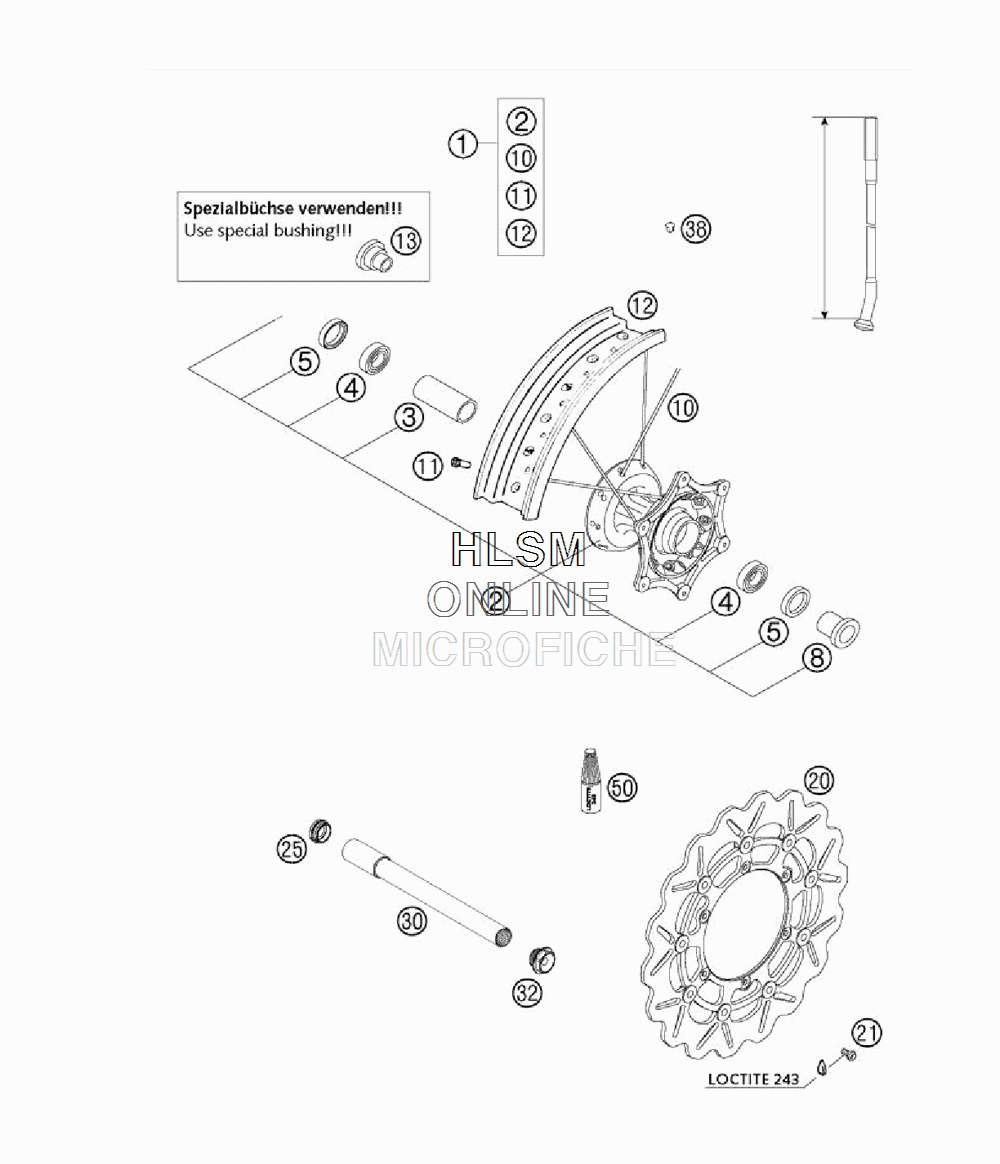

FRONT WHEEL 16.5'' для Ktm 450 SMC - 2004 года выпуска`
-
№АртикулНазвание
-
157309001144 FRONT WHEEL CPL. 3,5X16,5"FRONT WHEEL CPL. 3,5X16,5"
-
25480901004496 FRONT HUB CPL. GOLDFRONT HUB CPL. GOLD
-
354809011000 BEA.SPACERTUBE 35X2 L=79,4BEA.SPACERTUBE 35X2 L=79,4
-
40625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
50760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
854809012000 SPACER BUSHING F. FR. WHEELSPACER BUSHING F. FR. WHEEL
-
1058409071165 SPOKE 4,5X165-15G 16,5 DDESPOKE 4,5X165-15G 16,5 DDE
-
1150309072000 SPOKE NIPPLE M4,5X0,75 8X21SPOKE NIPPLE M4,5X0,75 8X21
-
125730907000030 RIMFRONT 3,50X16,5" BLACK EXCELRIMFRONT 3,50X16,5" BLACK EXCEL
-
1357309012000 SPACER BUSHING F. FRONT WH.SPACER BUSHING F. FRONT WH.
-
2057309060100 BRAKE DISK FRONT 320MMBRAKE DISK FRONT 320MM
-
2159009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
2554809081050 PLUG BUSHING WS=27PLUG BUSHING WS=27
-
3057309081000 WHEEL SP. FRO. D=26 660SMWHEEL SP. FRO. D=26 660SM
-
3254809082000 SPINDLE SCREW M24X1,5 WS=27SPINDLE SCREW M24X1,5 WS=27
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
506899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
