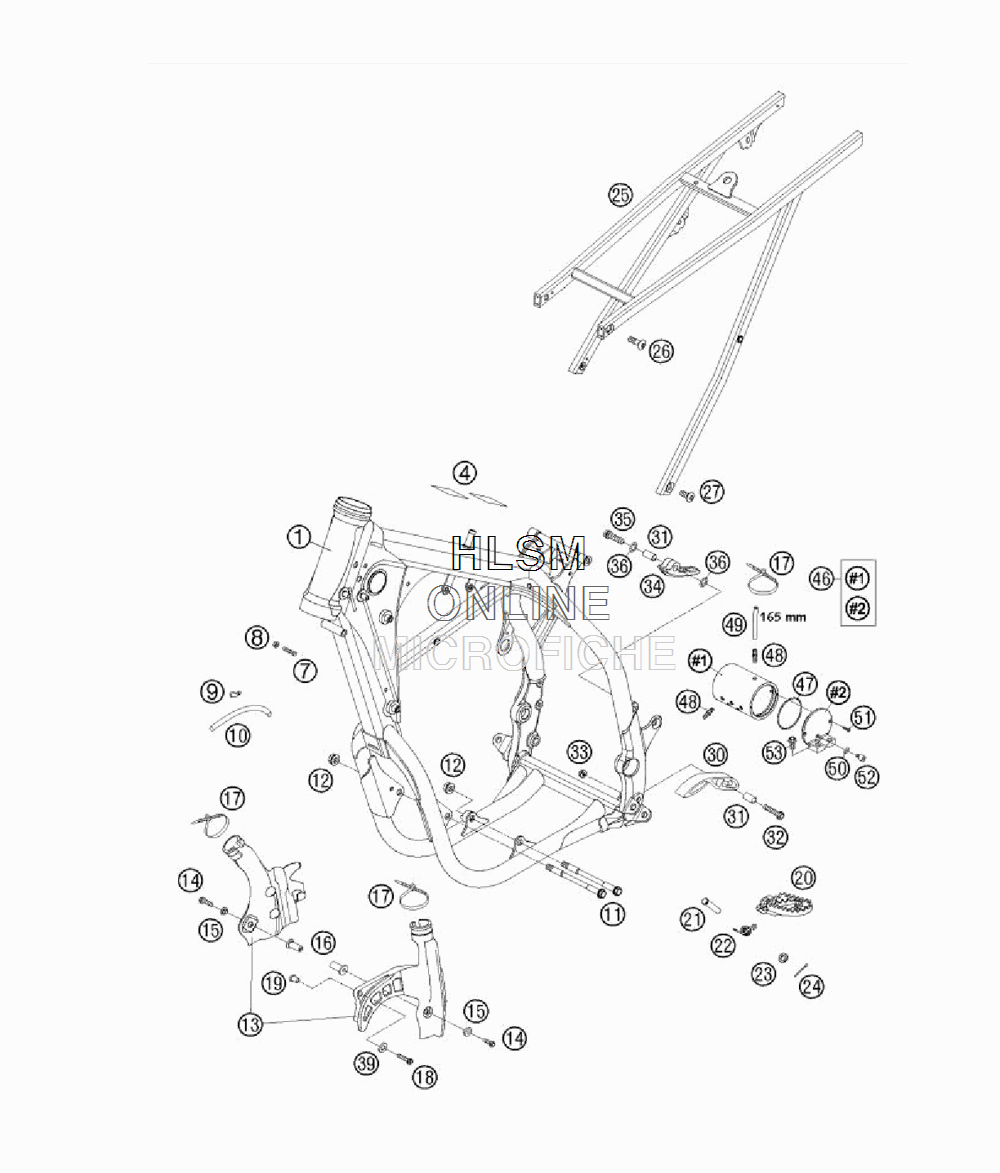

FRAME W/ SUB FRAME для Ktm 450 SMC - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    5920300100030 RFRAME 450 SM FACT.REP. "M4"
    RFRAME 450 SM FACT.REP. "M4"
  • 4
    50307012000 ADH. FOIL TRANSP. 80X80 MM
    ADH. FOIL TRANSP. 80X80 MM
  • 7
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 8
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 9
    50303089000 ANGEL PIECE
    ANGEL PIECE
  • 10
    55007016001 PVC-HOSE 7X10 PER METRE
    PVC-HOSE 7X10 PER METRE
  • 11
    59003013000 ENGINEBRAC.SCREW M10X123 WS=13
    ENGINEBRAC.SCREW M10X123 WS=13
  • 12
    54310086100 SELF LOCKING NUT M10 CU WS=14
    SELF LOCKING NUT M10 CU WS=14
  • 13
    54803094000 FRAME PROTECTION SET
    FRAME PROTECTION SET
  • 14
    0014050253 HH COLLAR SCREW M 5X25 WS=6
    HH COLLAR SCREW M 5X25 WS=6
  • 15
    54803092060 BUSH F. FRAME PROTECTION
    BUSH F. FRAME PROTECTION
  • 16
    54803092050 BLIND PLUG-IN NUT M5 WN 22A
    BLIND PLUG-IN NUT M5 WN 22A
  • 17
    44011076100 CABLE TIE 100/2,5MM BLACK
    CABLE TIE 100/2,5MM BLACK
  • 17
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 18
    0015060353 HH COLLAR SCREW M 6X35 WS=8
    HH COLLAR SCREW M 6X35 WS=8
  • 19
    59030060050 BUSHING F. SPROCKET COVER
    BUSHING F. SPROCKET COVER
  • 20
    59003040250 FOOT PED L/S SILVER
    FOOT PED L/S SILVER
  • 20
    59003041250 FOOT PED R/S SILVER
    FOOT PED R/S SILVER
  • 21
    54803044000 BOLT FOR FOOT PED
    BOLT FOR FOOT PED
  • 22
    54603041000 FOOTREST SPRING L/S & R/S
    FOOTREST SPRING L/S & R/S
  • 23
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 24
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 25
    59403002044 SUB FRAME CPL. ALU
    SUB FRAME CPL. ALU
  • 26
    54510052100 SPROCKET SCREW-AH M8X26 WS=6
    SPROCKET SCREW-AH M8X26 WS=6
  • 27
    54610052000 SPROCKET SCREW-AH M8X20 WS=6
    SPROCKET SCREW-AH M8X20 WS=6
  • 30
    51103053000 CHAIN SLIDING PIECE BELOW
    CHAIN SLIDING PIECE BELOW
  • 31
    51103053051 BUSHING 8,2X10X20
    BUSHING 8,2X10X20
  • 32
    0015080353 HH COLLAR SCREW M 8X35 WS=10
    HH COLLAR SCREW M 8X35 WS=10
  • 33
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 34
    54804067000 CHAIN SLIDING PIECE
    CHAIN SLIDING PIECE
  • 35
    0015080303 HH COLLAR SCREW M 8X30 WS=10
    HH COLLAR SCREW M 8X30 WS=10
  • 36
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 39
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 46
    59203096000 INTERCEPTION TANK CPL.
    INTERCEPTION TANK CPL.
  • 47
    0770047015 O-RING 47,00X1,50 NBR 70
    O-RING 47,00X1,50 NBR 70
  • 48
    57331096052 CONNECT.FOR VENTILATION M6
    CONNECT.FOR VENTILATION M6
  • 49
    31007007101 PVC-HOSE 4X6MM
    PVC-HOSE 4X6MM
  • 50
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 51
    0991030102 FLAT HEAD SCREW DIN7991 M3X10
    FLAT HEAD SCREW DIN7991 M3X10
  • 52
    0912060083 AH SCREW DIN0912-M 6X 8
    AH SCREW DIN0912-M 6X 8
  • 53
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
