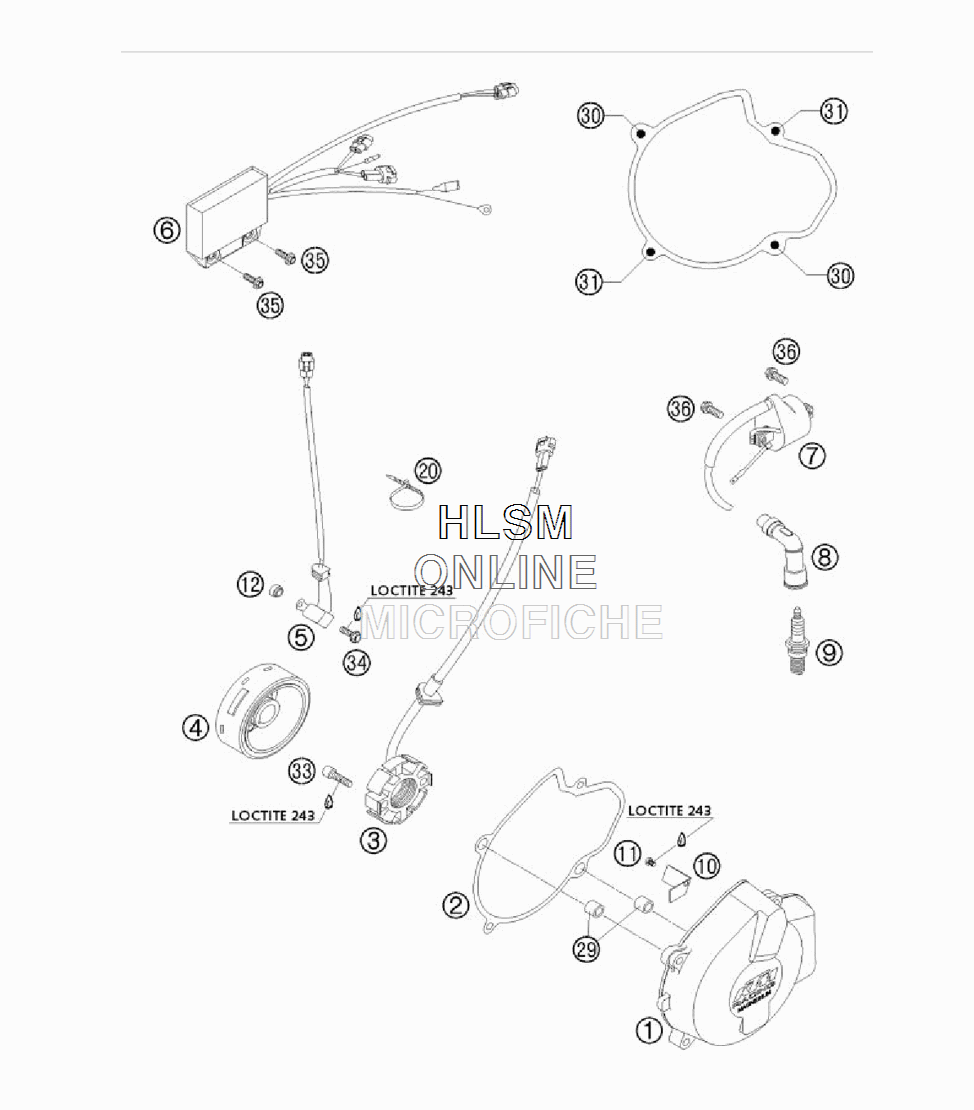

IGNITION SYSTEM KOKUSAN 4K3A для Ktm 450 SMC - 2004 года выпуска
-
№АртикулНазвание
-
159030002500 IGNITION COVER 4K3AIGNITION COVER 4K3A
-
259030040000 IGNITION COVER GASKET 0,8MMIGNITION COVER GASKET 0,8MM
-
359039004100 STATOR CPL. 4K3ASTATOR CPL. 4K3A
-
459039005100 FLYWHEEL 4K3AFLYWHEEL 4K3A
-
559039034000 PULSER COIL KOKUSAN 4K3-A/BPULSER COIL KOKUSAN 4K3-A/B
-
659039031200 CDI-BOXCDI-BOX
-
759039006000 IGNITIONCOIL KOKUSAN 4K3-A/BIGNITIONCOIL KOKUSAN 4K3-A/B
-
859039090100 SPARK PLUG CONNECT. VD05EGSPARK PLUG CONNECT. VD05EG
-
959039093100 SPARK PLUG NGK DCPR8ESPARK PLUG NGK DCPR8E
-
1059030002050 SUPPORT FOR WIRESUPPORT FOR WIRE
-
110084040063 CYL.HEAD SCREW DIN0084-M 4X 6ACYL.HEAD SCREW DIN0084-M 4X 6A
-
1259039009000 SPACER BUSHING 5,2X7X4,8SPACER BUSHING 5,2X7X4,8
-
2044011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
2949030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
300015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
310015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
330912050253 AH SCREW DIN0912-M 5X25AH SCREW DIN0912-M 5X25
-
340015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
350014060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
360015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
