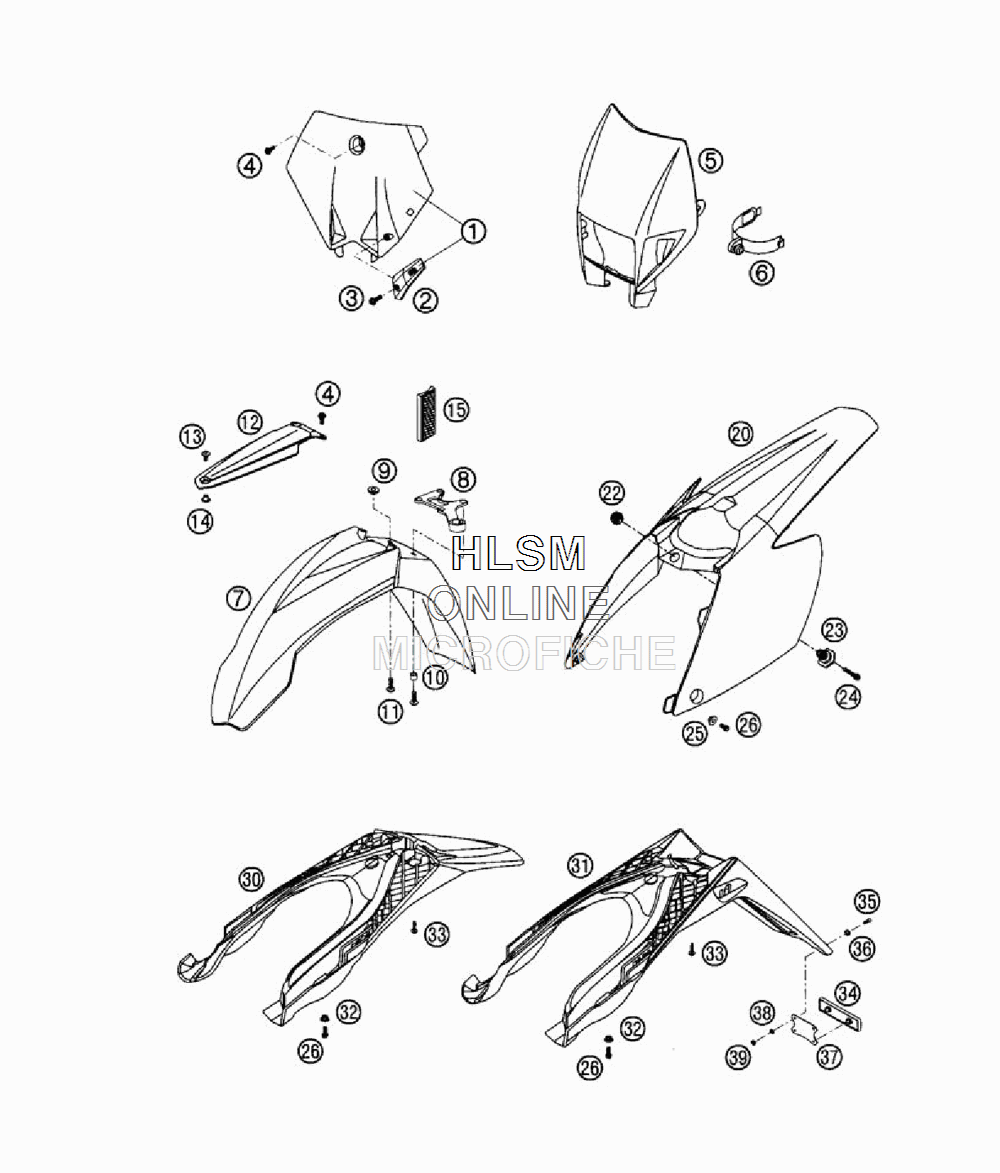

MASK W/ FENDERS для Ktm 125 SX - 2004 года выпуска
-
№АртикулНазвание
-
15480800701004 NUMBER PLATE CPL. ORANGENUMBER PLATE CPL. ORANGE
-
254808019000 BRAKE HOSE GUIDE BLACKBRAKE HOSE GUIDE BLACK
-
30017060204 SPECIAL SCR. T60 6X20 ALU WS=6SPECIAL SCR. T60 6X20 ALU WS=6
-
40014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
55030800100004 H.LIGHT MASK ORANGEH.LIGHT MASK ORANGE
-
650211086000 MASK RUBBER UFO WPMASK RUBBER UFO WP
-
75030801030004 FENDER FRONT WIDE ORANGEFENDER FRONT WIDE ORANGE
-
859008019000 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
954808020000 SPACER BUSHINGSPACER BUSHING
-
1050208020000 SPACER BUSHING 7X10X7,5SPACER BUSHING 7X10X7,5
-
110014060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
1250308009100 FENDER BRACE BLACKFENDER BRACE BLACK
-
1350308009050 SCREW FEND.BRACE M8X9 WS=17SCREW FEND.BRACE M8X9 WS=17
-
1450308009051 NUT FENDER BRACE M8 WS=17NUT FENDER BRACE M8 WS=17
-
1558412080100 REFLECTOR YELLOWREFLECTOR YELLOW
-
205480801300004 REAR PARTREAR PART
-
205480801310004 REAR PARTREAR PART
-
2250314057050 COLLAR NUT M12X1/WS17 H=5MMCOLLAR NUT M12X1/WS17 H=5MM
-
2354807048000 BUSHING FOR SEAT FASTENINGBUSHING FOR SEAT FASTENING
-
240015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
2550308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
260015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
3054808015000 NUMBER PLATE CARRIER SHORTNUMBER PLATE CARRIER SHORT
-
3154808015100 NUMBER PLATE CARRIER LONGNUMBER PLATE CARRIER LONG
-
3250308052100 BUSH FOR FENDER 6X11X20X5 MMBUSH FOR FENDER 6X11X20X5 MM
-
330017060203 SPECIAL SCREW T60 6X20 WS=6SPECIAL SCREW T60 6X20 WS=6
-
3458412080000 REFLECTOR REDREFLECTOR RED
-
350966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
3640006006000 WASHER 6MMWASHER 6MM
-
3758412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
380125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
390985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
