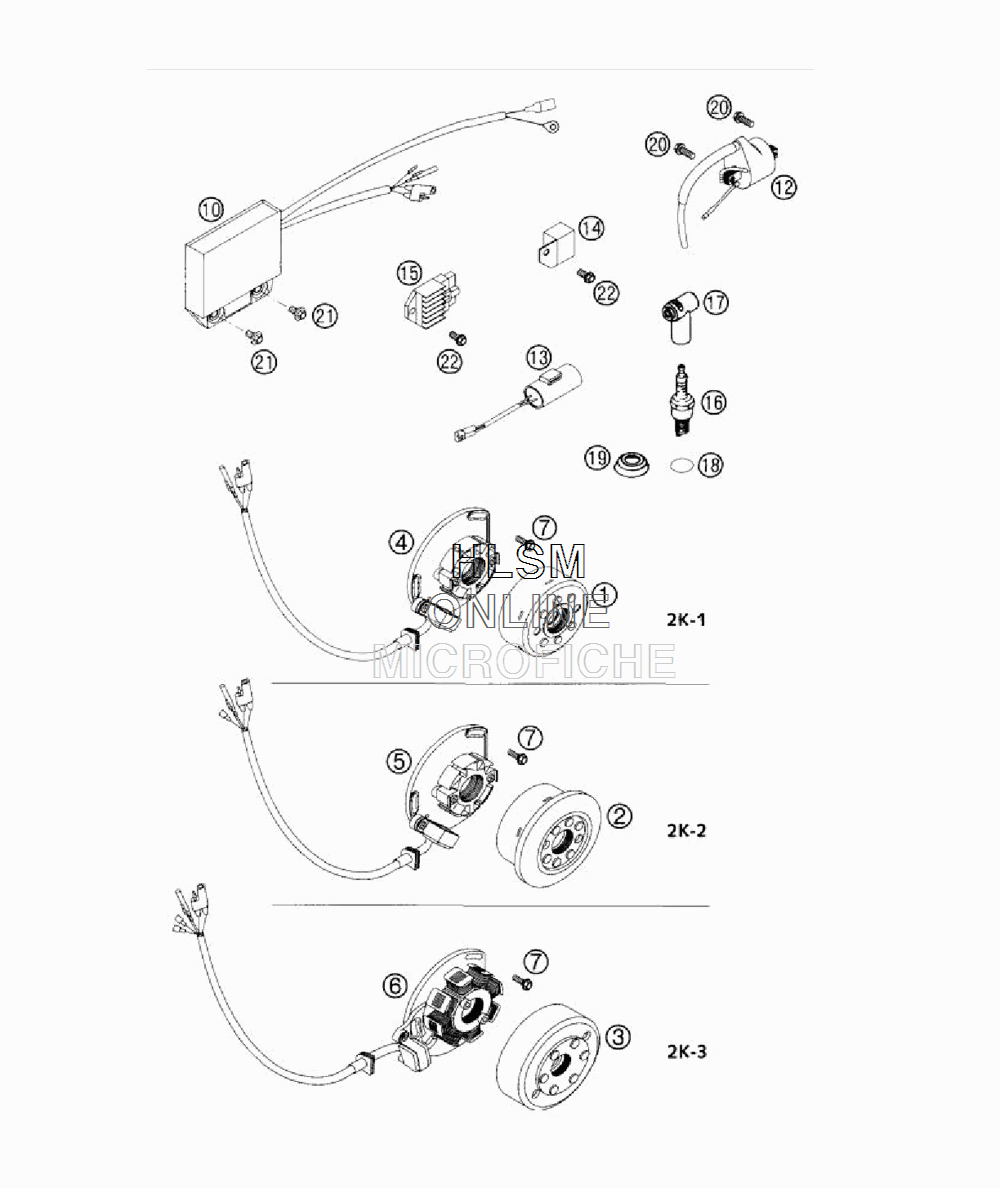

IGNITION SYSTEM KOKUSAN для Ktm 125 SX - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    54739005000 FLYWHEEL KOKUSAN 2K-1/2K-4
    FLYWHEEL KOKUSAN 2K-1/2K-4
  • 4
    50339004000 STATOR KOKUSAN 2K-1
    STATOR KOKUSAN 2K-1
  • 7
    0015050163 HH COLLAR SCREW M 5X16 WS=8
    HH COLLAR SCREW M 5X16 WS=8
  • 10
    50339031400 CDI UNIT CU7442
    CDI UNIT CU7442
  • 12
    50339006000 IGNI.COIL KOKU.3834
    IGNI.COIL KOKU.3834
  • 16
    50339093100 SPARK PLUG NGK BR 9EVX
    SPARK PLUG NGK BR 9EVX
  • 17
    54531010000 SPARK PLUG CAP LB05EMH NGK
    SPARK PLUG CAP LB05EMH NGK
  • 18
    0770150040 O-RING 15,00X4,00 NBR 70
    O-RING 15,00X4,00 NBR 70
  • 20
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 21
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 22
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
