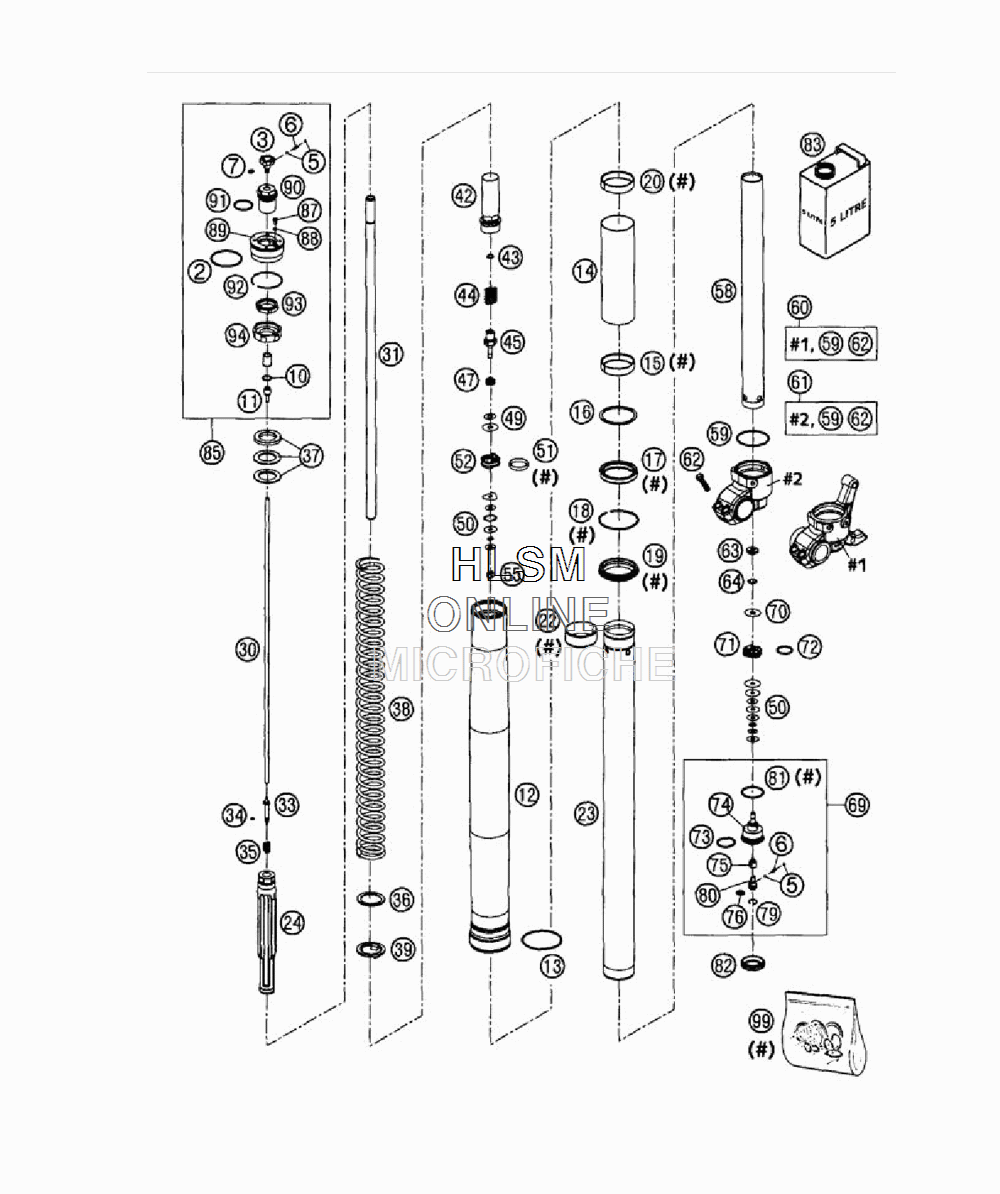

FORK LEGS - 48 для Ktm 125 SX - 2004 года выпуска`

№

Артикул

Название
2

46810340 O-RING NBR 45X2

O-RING NBR 45X2

220 ₽
3

48600018 KNOB REBOUND ADJUSTER

KNOB REBOUND ADJUSTER

890 ₽
5

40540603 STEEL BALL D=3MM

STEEL BALL D=3MM

60 ₽
6

48600028 SPRING D=2,9 L=7,9

SPRING D=2,9 L=7,9

660 ₽
7

48600044 O-RING NBR 6X1,5

O-RING NBR 6X1,5

130 ₽
10

48600043 O-RING NBR 12X1,5

O-RING NBR 12X1,5

270 ₽
11

48600019 HOLDER F.ADJUSTMENT TUBE D=4MM

HOLDER F.ADJUSTMENT TUBE D=4MM

500 ₽
12

48600244 OUTER TUBE L=577MM D=54/60MM

OUTER TUBE L=577MM D=54/60MM

150 460 ₽
13

48600016 GUIDING RING D=58MM

GUIDING RING D=58MM

680 ₽
14

48600245 SPACER 50,95X0,85X161,5

SPACER 50,95X0,85X161,5

6 820 ₽
15

48600205 DU-BUSH 48X52X12

DU-BUSH 48X52X12

5 140 ₽
16

48600013 SUPPORT RING 50 X 57,6 X 1,5

SUPPORT RING 50 X 57,6 X 1,5

610 ₽
17

48600344 OIL SEAL RING 48X57,8X9,5

OIL SEAL RING 48X57,8X9,5

0 ₽
18

48600070 LOCK WASHER SB58

LOCK WASHER SB58

350 ₽
19

48600345 DUST STRIPPER D=48

DUST STRIPPER D=48

0 ₽
20

48600236 GUIDING RING 48X51X12

GUIDING RING 48X51X12

6 190 ₽
22

48600204 DU-BUS 47X49X20

DU-BUS 47X49X20

3 240 ₽
23

48600240 INNER TUBE D=48 L=595

INNER TUBE D=48 L=595

90 040 ₽
24

48600241S HYDR.STOP L=200MM D=31,9 CPL.

HYDR.STOP L=200MM D=31,9 CPL.

18 430 ₽
30

48600092 ADJUSTMENT TUBE L=517MM

ADJUSTMENT TUBE L=517MM

17 820 ₽
31

48600251 PISTONROD D=14 L=551 M11X1

PISTONROD D=14 L=551 M11X1

33 970 ₽
33

48600189 NEEDLE REBOUND

NEEDLE REBOUND

9 350 ₽
34

48600046 O-RING NBR 3X1,5

O-RING NBR 3X1,5

220 ₽
35

48600033 SPRING REBOUND NEEDLE C=4N/MM

SPRING REBOUND NEEDLE C=4N/MM

1 240 ₽
36

48600113 WASHER 32X42X2,5

WASHER 32X42X2,5

3 010 ₽
37

48600036 SPACER 42X26,5X2,5

SPACER 42X26,5X2,5

440 ₽
37

48600037 SPACER 42X26,5X5

SPACER 42X26,5X5

800 ₽
37

48600053 SPACER 42X26,5X1,5

SPACER 42X26,5X1,5

800 ₽
38

91410011S SPRING 3,6N/MM SET

SPRING 3,6N/MM SET

39 430 ₽
38

91410012S SPRING 3,8N/MM SET D=4,9MM

SPRING 3,8N/MM SET D=4,9MM

39 430 ₽
38

91410013S SPRING 4,0N/MM SET D=5,0MM

SPRING 4,0N/MM SET D=5,0MM

39 430 ₽
38

91410014S SPRING 4,2N/MM SET D=5,0MM

SPRING 4,2N/MM SET D=5,0MM

39 430 ₽
38

91410015S SPRING 4,4N/MM SET D=5,1MM

SPRING 4,4N/MM SET D=5,1MM

39 430 ₽
38

91410016S SPRING 4,6N/MM SET

SPRING 4,6N/MM SET

39 430 ₽
38

91410017S SPRING 4,8N/MM SET

SPRING 4,8N/MM SET

39 430 ₽
39

48600021 INTERM. RING 26,2 X 43 X 3

INTERM. RING 26,2 X 43 X 3

4 510 ₽
42

48600196S SCREW SLEEVE M29,3X1 L=90 CPL.

SCREW SLEEVE M29,3X1 L=90 CPL.

26 740 ₽
43

48600239 O-RING NBR 8X1,25

O-RING NBR 8X1,25

250 ₽
44

48600192 REBOUND SPRING D=15MM L=34,5MM

REBOUND SPRING D=15MM L=34,5MM

4 850 ₽
45

48600203 TAB REBOUND D=3 03

TAB REBOUND D=3 03

2 480 ₽
47

35480377 SPRING CHECK VALVE D=0,5

SPRING CHECK VALVE D=0,5

310 ₽
49

48600062 CHECK VALVE 8X24X0,1

CHECK VALVE 8X24X0,1

370 ₽
49

48600214 SHIM 8X16X0,1

SHIM 8X16X0,1

370 ₽
49

48600215 CHECK VALVE 8X20X0,1

CHECK VALVE 8X20X0,1

370 ₽
49

48600346 SHIM 8X11X0,2

SHIM 8X11X0,2

370 ₽
49

48600350 CHECK VALVE 8X16X0,15

CHECK VALVE 8X16X0,15

370 ₽
49

48600351 CHECK VALVE 8X12X0,1

CHECK VALVE 8X12X0,1

370 ₽
49

48600352 CHECK VALVE 8X11X0,4

CHECK VALVE 8X11X0,4

1 490 ₽
50

48600063 SHIM 6X24X0,1

SHIM 6X24X0,1

370 ₽
50

48600064 SHIM 6X22X0,1

SHIM 6X22X0,1

370 ₽
50

48600065 SHIM 6X20X0,1

SHIM 6X20X0,1

370 ₽
50

48600116 SHIM 6X24X0,1 DELTA

SHIM 6X24X0,1 DELTA

370 ₽
50

48600325 SHIM 6X13X0,1

SHIM 6X13X0,1

370 ₽
50

40540400 SHIM 6X12X0,1

SHIM 6X12X0,1

370 ₽
50

40540401 SHIM 6X14X0,1

SHIM 6X14X0,1

370 ₽
50

40540402 SHIM 6X16X0,1

SHIM 6X16X0,1

370 ₽
50

40540403 SHIM 6X18X0,1

SHIM 6X18X0,1

370 ₽
50

40540414 SHIM 6X16X0,25

SHIM 6X16X0,25

370 ₽
50

40540415 SHIM 6X18X0,25

SHIM 6X18X0,25

370 ₽
50

40540449 SHIM 6X9X0,3

SHIM 6X9X0,3

370 ₽
50

40540450 SHIM 6X9,5X0,3

SHIM 6X9,5X0,3

370 ₽
50

40541383 SHIM 6X11X0,1

SHIM 6X11X0,1

370 ₽
51

48600060 PISTON RING 5X1X84

PISTON RING 5X1X84

1 160 ₽
52

48600042 PISTON REBOUND D=27,7

PISTON REBOUND D=27,7

3 040 ₽
55

40540486 NUT M6X0,5 REBOUND

NUT M6X0,5 REBOUND

920 ₽
58

48600081 TUBE 29,3X1X390 D=8,5MM

TUBE 29,3X1X390 D=8,5MM

30 490 ₽
59

48600048 O-RING NBR 46 X 2

O-RING NBR 46 X 2

540 ₽
60

48600237S AXLE CLAMP L/S CPL. USD48

AXLE CLAMP L/S CPL. USD48

119 590 ₽
61

48600238S AXLE CLAMP R/S CPL. USD48

AXLE CLAMP R/S CPL. USD48

89 860 ₽
62

0015080253 HH COLLAR SCREW M 8X25 WS=10

HH COLLAR SCREW M 8X25 WS=10

300 ₽
63

48600163 CHECK VALVE NUT M6X0,5 D=2

CHECK VALVE NUT M6X0,5 D=2

720 ₽
64

48600202 SPRING CHECK VALVE D=0,7

SPRING CHECK VALVE D=0,7

310 ₽
69

48600152S1 TAP COMPRESSION CPL.

TAP COMPRESSION CPL.

24 910 ₽
70

48600061 CHECK VALVE 8X24X0,4

CHECK VALVE 8X24X0,4

370 ₽
71

48600047 PISTON COMPRESSION D=27,9

PISTON COMPRESSION D=27,9

2 250 ₽
72

46811499 O-RING NBR 21X2

O-RING NBR 21X2

60 ₽
73

35480320 O-RING NBR 24X2

O-RING NBR 24X2

80 ₽
74

48600152 TAP COMPRESSION

TAP COMPRESSION

24 910 ₽
75

48600190 NEEDLE COMPRESSION

NEEDLE COMPRESSION

3 670 ₽
76

48600049 O-RING NBR 8X2

O-RING NBR 8X2

130 ₽
79

48600051 LOCK WASHER RB12

LOCK WASHER RB12

810 ₽
80

48600034 COMPRESSION ADJ. SCREW

COMPRESSION ADJ. SCREW

2 400 ₽
81

48600004 COPPER WASHER 29,5X33,5X1

COPPER WASHER 29,5X33,5X1

910 ₽
82

48600141 RUBBER CAP D=35MM

RUBBER CAP D=35MM

920 ₽
83

48600211S1 FORK OIL SAE 5

FORK OIL SAE 5

0 ₽
85

48600075S PRE-LOAD ADJUSTER CPL.(1 PC.)

PRE-LOAD ADJUSTER CPL.(1 PC.)

170 ₽
87

48600076 VENT SCREW M4X8

VENT SCREW M4X8

410 ₽
88

48600046 O-RING NBR 3X1,5

O-RING NBR 3X1,5

220 ₽
89

48600075 SCREW CAP M51X1,5

SCREW CAP M51X1,5

40 710 ₽
90

48600073 ADAPTER FOR REB. MENDING

ADAPTER FOR REB. MENDING

0 ₽
91

48600077 O-RING NBR 26X2

O-RING NBR 26X2

230 ₽
92

46810010 CIRCLIP 49X1,5

CIRCLIP 49X1,5

530 ₽
93

48600072 LOCKNUT

LOCKNUT

5 130 ₽
94

48600071 SUPPORT RING FOR SPRING

SUPPORT RING FOR SPRING

12 560 ₽
99

R14007 REPAIR-KIT GASKET 4860 MXMA 03

REPAIR-KIT GASKET 4860 MXMA 03

41 050 ₽
