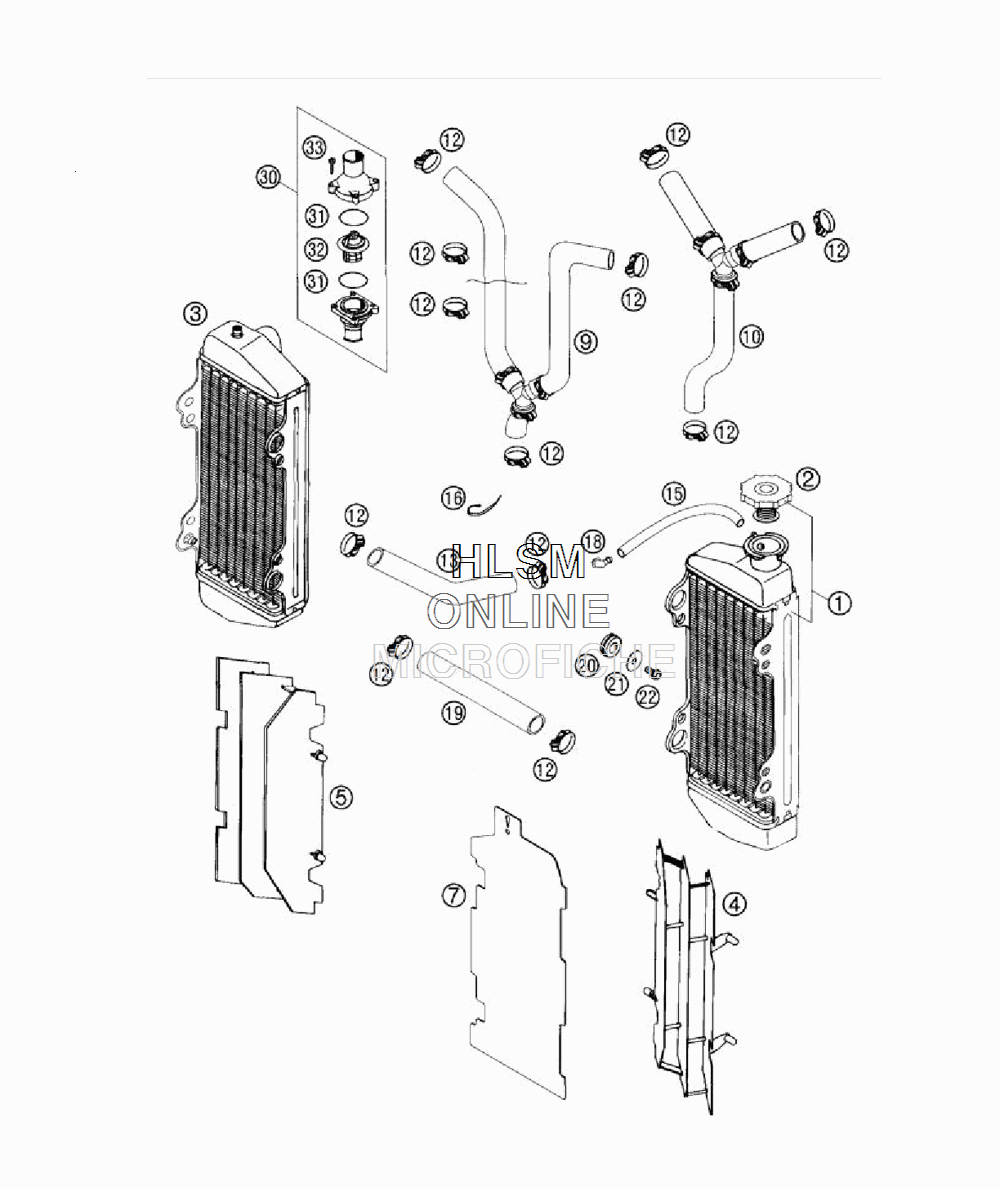

COOLING SYSTEM (USA/AUS) для Ktm 125 SX - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    50335007000 RADIATOR L/S NATURE (45286)
    RADIATOR L/S NATURE (45286)
  • 2
    59035009000 RADIAT.CAP 19,6PSI (1,4BAR)
    RADIAT.CAP 19,6PSI (1,4BAR)
  • 3
    50335008000 RADIATOR R/S NATURE (45285)
    RADIATOR R/S NATURE (45285)
  • 4
    54635034200 RADIATOR PROTECT.L/S COUL.
    RADIATOR PROTECT.L/S COUL.
  • 5
    54635134200 RADIATOR PROTECT.R/S COUL.
    RADIATOR PROTECT.R/S COUL.
  • 7
    50335033000 COVER FOR RADIATOR L/S BLACK (FOR WINTER OPERATION)
    COVER FOR RADIATOR L/S BLACK (FOR WINTER OPERATION)
  • 9
    50335026000 RADIATOR HOSE CPL.
    RADIATOR HOSE CPL.
  • 10
    50335026200 RADIATOR HOSE INCL. Y-PART
    RADIATOR HOSE INCL. Y-PART
  • 12
    10001020000 HOSE CLAMP GEMI 16-27
    HOSE CLAMP GEMI 16-27
  • 13
    50335027000 RADIATOR HOSE 18X25 (WATER PUMP - RADIATOR)
    RADIATOR HOSE 18X25 (WATER PUMP - RADIATOR)
  • 15
    31007107001 PVC-HOSE 6X9 MM PER METRE
    PVC-HOSE 6X9 MM PER METRE
  • 16
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 18
    50303089000 ANGEL PIECE
    ANGEL PIECE
  • 19
    56535025001 RADIATOR HOSE 18X25 PER METRE (RADIATOR - RADIATOR)
    RADIATOR HOSE 18X25 PER METRE (RADIATOR - RADIATOR)
  • 20
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 21
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 22
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 30
    54635013144 THERMOSTATCASE CPL. 55DEG.
    THERMOSTATCASE CPL. 55DEG.
  • 31
    0770320020 O-RING 32,00X2,00
    O-RING 32,00X2,00
  • 32
    54635017000 THERMOSTAT 55 DEGREES
    THERMOSTAT 55 DEGREES
  • 33
    0016040183 SCREW FOR PLASTIC D=4X18
    SCREW FOR PLASTIC D=4X18
