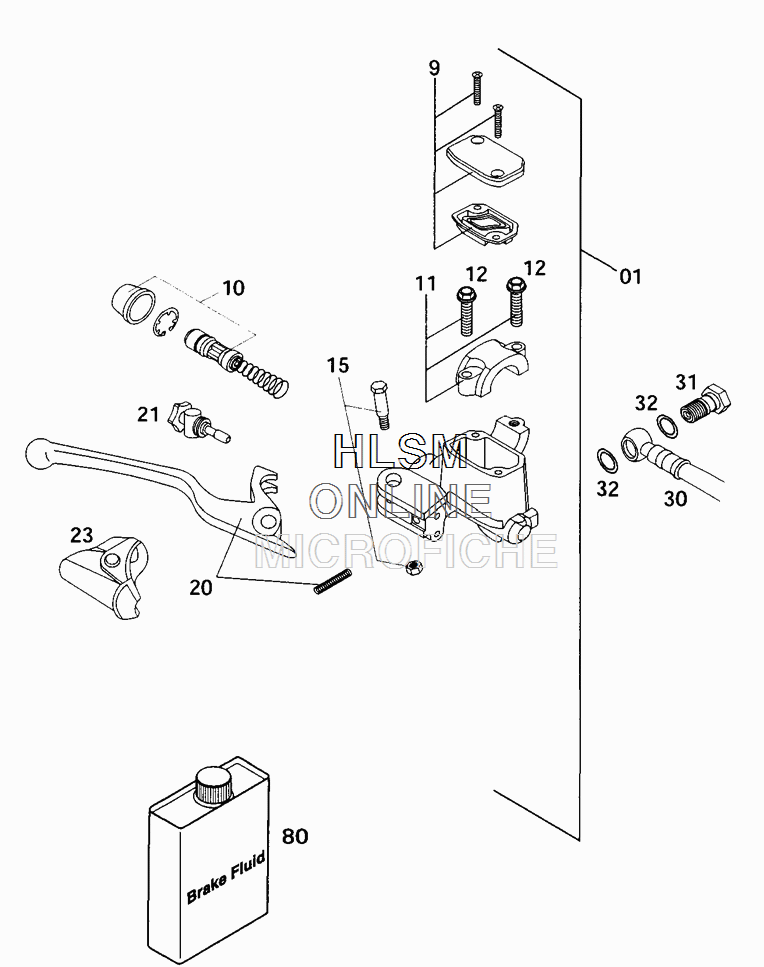

HAND BRAKE CYLINDER для Ktm 65 SX - 2001 года выпуска`
-
№АртикулНазвание
-
0150313001100 HANDBRAKE CYL. NAT SMALLHANDBRAKE CYL. NAT SMALL
-
950313003000 HANDBRAKE CYL.COVER CPL.NATUREHANDBRAKE CYL.COVER CPL.NATURE
-
1050313008200 REP.SET PISTONREP.SET PISTON
-
1150313005000 CLAMP CPL. NATURECLAMP CPL. NATURE
-
120015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
1550313006100 LEVER SCREW CPL.LEVER SCREW CPL.
-
2050313002100 HANDBRAKE LEVER SHORTHANDBRAKE LEVER SHORT
-
2150313007000 ADJUSTING SCREW CPL.ADJUSTING SCREW CPL.
-
2350313004000 PROTECTION CAP HAND BRAKE CYLINDERPROTECTION CAP HAND BRAKE CYLINDER
-
3046013010200 BRAKE HOSE FR.790MMBRAKE HOSE FR.790MM
-
3150213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
3242013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
Все узлы модели:
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR MIKUNI VM24
- CLUTCH
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECAL
- ENGINE CASE
- EXHAUST SYSTEM
- FRAME - SUB FRAME
- FRONT FORK
- FRONT WHEEL
- • HAND BRAKE CYLINDER
- HANDELBAR W/ CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- REAR BRAKE CONTROL
- REAR WHEEL
- SHIFTING MECHANISM (MOTOR NR.ENGINE NO. 100 0001 &UP)
- SHIFTING MECHANISM (MOTOR NR/ENGINE NO B65002273 - B65 004044)
- SPECIAL TOOL
- SWINGARM W/ SHOCK ABSORBER
- TANK - SEAT - COVER
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAINSHAFT
