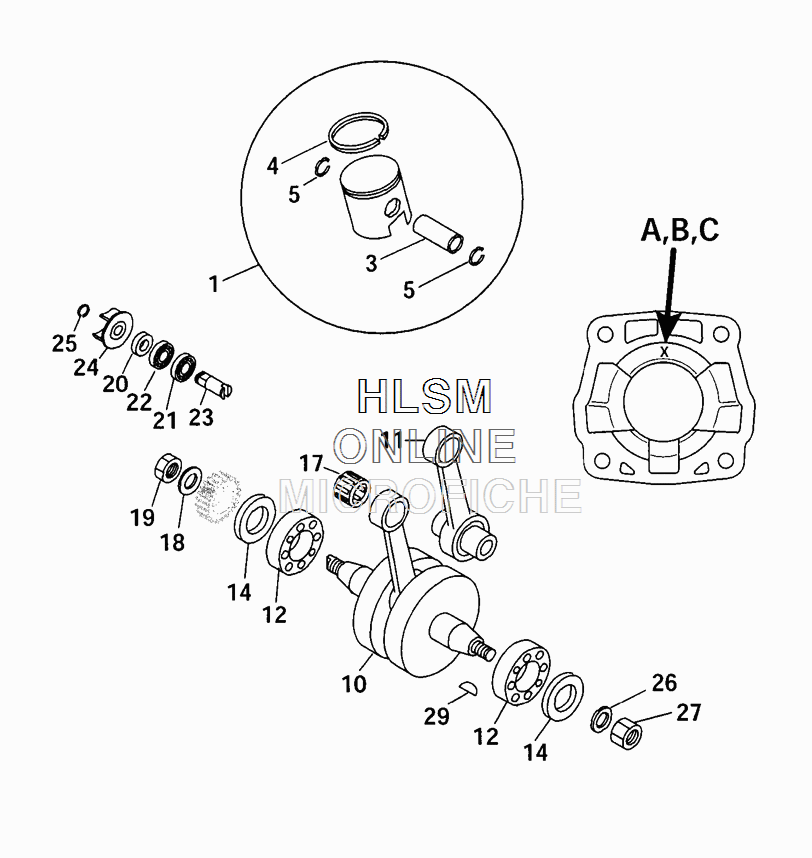

CRANKSHAFT W/ PISTON для Ktm 65 SX - 2001 года выпуска`
-
№АртикулНазвание
-
146030007500A PISTON CPL. 45MM "A"PISTON CPL. 45MM "A"
-
146030007500B PISTON CPL. 45MM "B"PISTON CPL. 45MM "B"
-
146030007500C PISTON CPL. 45MM "C"PISTON CPL. 45MM "C"
-
346030033000 PISTON PIN 12X38PISTON PIN 12X38
-
446030030500 PISTON RING 45MM 65CCMPISTON RING 45MM 65CCM
-
546030074000 CIRCLIP 12X1CIRCLIP 12X1
-
1046030018100 CRANKSHAFT CPL. STROKE 40MMCRANKSHAFT CPL. STROKE 40MM
-
1146030015000 CONN. ROD REPAIR SET 60/65 CCMCONN. ROD REPAIR SET 60/65 CCM
-
1246030082100 GROOVED BALL BEARING 20X52X15GROOVED BALL BEARING 20X52X15
-
1446030077000 SHAFT SEAL RING 20X35X6SHAFT SEAL RING 20X35X6
-
1746030034000 NEEDLE BEAR.PISTONPIN 12X15X17NEEDLE BEAR.PISTONPIN 12X15X17
-
1846030078100 LOCKING WASHER 14X20X1LOCKING WASHER 14X20X1
-
1946030029100 HH-NUT M14X1,25X5HH-NUT M14X1,25X5
-
2046035056100 SHAFT SEAL RING 10X18X4SHAFT SEAL RING 10X18X4
-
2146035057000 WATER PUMP BEARING 10X19X5WATER PUMP BEARING 10X19X5
-
2246035058000 WA.PU.BEAR. 10X19X5 DOUBLELIPWA.PU.BEAR. 10X19X5 DOUBLELIP
-
2346035054000 WATER PUMP SHAFTWATER PUMP SHAFT
-
2446035055100 WATER PUMP WHEELWATER PUMP WHEEL
-
250471090010 CIRCLIP DIN0471- 9X1CIRCLIP DIN0471- 9X1
-
260127100003 SPRING RING DIN0127-B10SPRING RING DIN0127-B10
-
2746030028000 HH NUT M10X1,25X17 WS=15HH NUT M10X1,25X17 WS=15
-
2946030075000 WOODRUFF KEY 3X3, 7X9,7WOODRUFF KEY 3X3, 7X9,7
