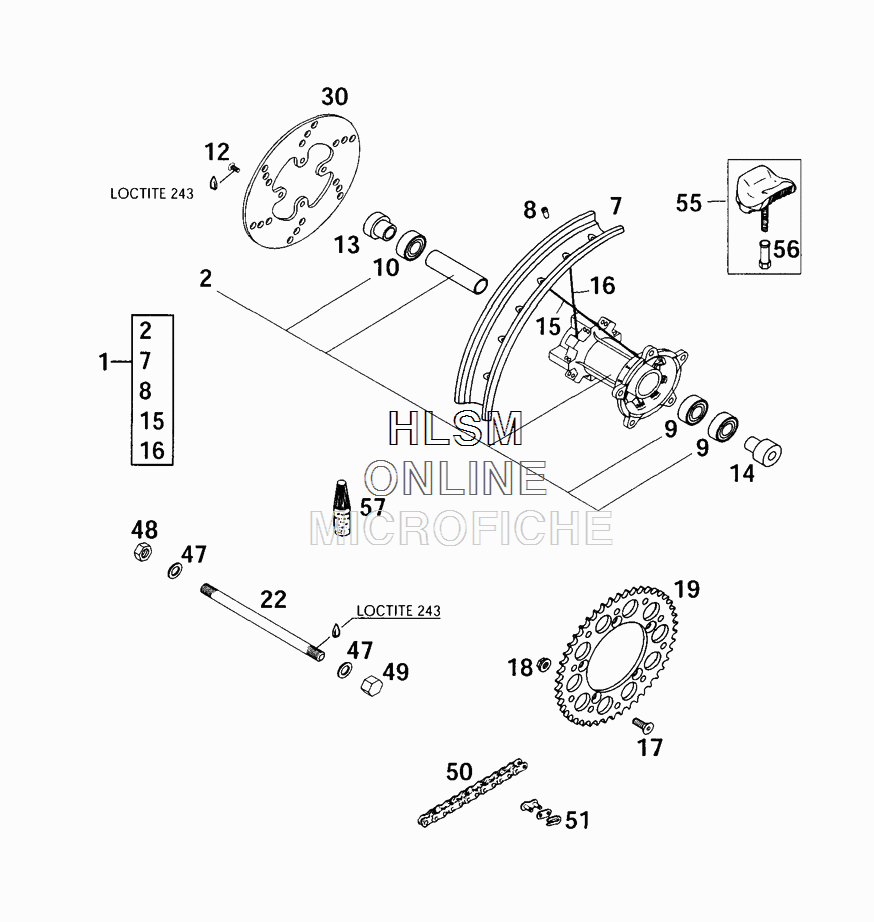

REAR WHEEL для Ktm 65 SX - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    46010001144 REARWHEEL CPL.1,6X12
    REARWHEEL CPL.1,6X12
  • 2
    46010010144 REAR WHEEL HUB CPL.
    REAR WHEEL HUB CPL.
  • 7
    46010070000 RIM REAR 1,6X12 ALU
    RIM REAR 1,6X12 ALU
  • 8
    46009072100 SPOKE NIPPEL M3,5
    SPOKE NIPPEL M3,5
  • 9
    0625060037 GROOVED BALL BEAR.6003 2RSR.C3
    GROOVED BALL BEAR.6003 2RSR.C3
  • 10
    0625062032 GROOVED BALL BEAR.6203 2RSR.C3
    GROOVED BALL BEAR.6203 2RSR.C3
  • 12
    0991060163 FLAT HEAD SCR. DIN7991-M 6X16
    FLAT HEAD SCR. DIN7991-M 6X16
  • 13
    46010013000 SPACER BUSH R/S
    SPACER BUSH R/S
  • 14
    46010014000 SPACER BUSH L/S
    SPACER BUSH L/S
  • 15
    46010071100 SPOKE M3,5X127-20G 12 L/S
    SPOKE M3,5X127-20G 12 L/S
  • 16
    46010171100 SPOKE M3,5X131-27G 12 R/S
    SPOKE M3,5X131-27G 12 R/S
  • 17
    0991080253 FLAT HEAD SCREW DIN7991-M 8X25
    FLAT HEAD SCREW DIN7991-M 8X25
  • 18
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 19
    46010051044 REAR SPROCKET 44-T
    REAR SPROCKET 44-T
  • 19
    46010051046 REAR SPROCKET 46-T
    REAR SPROCKET 46-T
  • 22
    46010085100 AXLE REAR 213MM M12X1
    AXLE REAR 213MM M12X1
  • 30
    46010060000 BRAKE DISC REAR D=160MM
    BRAKE DISC REAR D=160MM
  • 47
    0125120003 FLAT WASHER DIN0125-A13
    FLAT WASHER DIN0125-A13
  • 48
    0934120103 HEXAGON NUT DIN0934-M12X1
    HEXAGON NUT DIN0934-M12X1
  • 49
    0917120103 NUT DIN917-M12X1
    NUT DIN917-M12X1
  • 50
    46010065108 CHAIN 1/2X1/4 108 ROLLEN
    CHAIN 1/2X1/4 108 ROLLEN
  • 51
    46010066000 CHAIN LOCK 1/2X1/4
    CHAIN LOCK 1/2X1/4
  • 55
    51009100100 RIM LOCK VM1 (1,60)
    RIM LOCK VM1 (1,60)
  • 56
    50310090050 NUT WHEEL HOLDER
    NUT WHEEL HOLDER
  • 57
    6899785 LOCTITE 243 BLUE 6CCM
    LOCTITE 243 BLUE 6CCM
