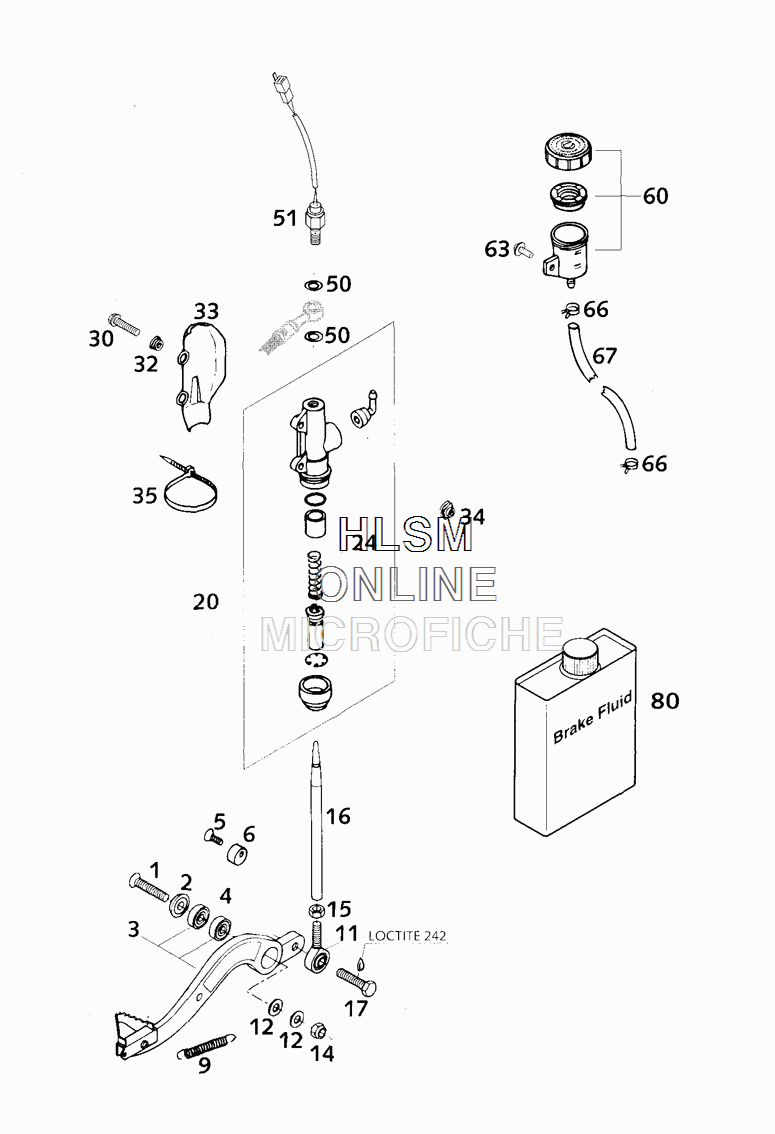

REAR BRAKE CONTROL для Ktm LC4 640 Super Moto - 2000 года выпуска`
-
№АртикулНазвание
-
10991080353 FLAT HEAD SCREW DIN7991-M 8X35FLAT HEAD SCREW DIN7991-M 8X35
-
258303061000 SPECIAL WASHER ALU 8 X 24 MMSPECIAL WASHER ALU 8 X 24 MM
-
358303060344 FOOT BRAKE L. CPL. LC4/ADV.FOOT BRAKE L. CPL. LC4/ADV.
-
40625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
50991060203 FLAT HEAD SCREW DIN7991-M 6X20FLAT HEAD SCREW DIN7991-M 6X20
-
658303063000 BRAKE LEVER STOPBRAKE LEVER STOP
-
913003062000 RETURN SPRINGRETURN SPRING
-
1158303062000 HEIM JOINT M8 W=12MMHEIM JOINT M8 W=12MM
-
120125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
140985080003 SELF LOCKING NUT DIN0985-M 8SELF LOCKING NUT DIN0985-M 8
-
150934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
1658303068100 PUSH ROD ALU L=178MMPUSH ROD ALU L=178MM
-
170933080223 HH SCREW DIN0933-M 8X22 8.8HH SCREW DIN0933-M 8X22 8.8
-
2054513101044 MAIN BRAKE CYLINDERMAIN BRAKE CYLINDER
-
2454513150000 REPAIR KIT PISTON 13MMREPAIR KIT PISTON 13MM
-
300015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
3250213161000 COLLAR BUSHINGCOLLAR BUSHING
-
3354513038000 BRAKE CYL. PROTECTOR "BREMBO"BRAKE CYL. PROTECTOR "BREMBO"
-
3450235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
3544011076305 CABLE TIE 290MMCABLE TIE 290MM
-
5042013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
5150311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
6054513030044 BRAKE FLUID RESERVOIRBRAKE FLUID RESERVOIR
-
630014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
6658007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
6758007016101 HOSE FOR RESERVOIR 6X1,5HOSE FOR RESERVOIR 6X1,5
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
