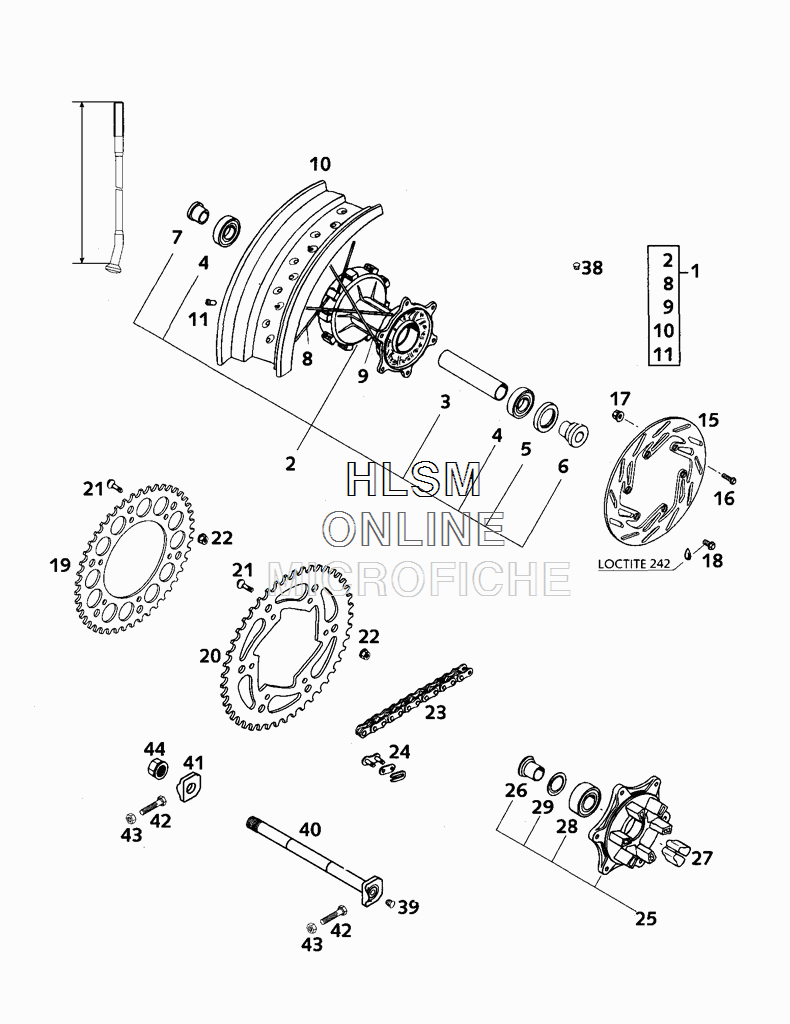

REAR WHEEL для Ktm LC4 640 Super Moto - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    58410001144 REAR WHEEL KPL. 4,25X17 (640 LC4-E SUPER MOTO)
    REAR WHEEL KPL. 4,25X17 (640 LC4-E SUPER MOTO)
  • 2
    58310010044 REAR WHEEL HUB DAMPED CPL.
    REAR WHEEL HUB DAMPED CPL.
  • 3
    54610411100 BEARING SPACER TUBE L=98,5MM
    BEARING SPACER TUBE L=98,5MM
  • 4
    0625062052 GROOVED BALL BEAR. 6205 2RSRC3
    GROOVED BALL BEAR. 6205 2RSRC3
  • 5
    0760325272 SHAFT SEAL RING 32X52X7 B
    SHAFT SEAL RING 32X52X7 B
  • 6
    54610016000 BUSHING FOR HUB
    BUSHING FOR HUB
  • 7
    54610416300 BUSHING FOR REAR DAMPED HUB
    BUSHING FOR REAR DAMPED HUB
  • 8
    583101711008 SPOKE M5X199-16G 17
    SPOKE M5X199-16G 17
  • 9
    583100711008 SPOKE M5X185-26G 17
    SPOKE M5X185-26G 17
  • 10
    58410070000 RIM REAR 4,25X17
    RIM REAR 4,25X17
  • 11
    583090720006 STEEL NIPPLE M5 CHROME PLATED
    STEEL NIPPLE M5 CHROME PLATED
  • 15
    58010060600 REAR BRAKE DISK 220MM COUNTERS
    REAR BRAKE DISK 220MM COUNTERS
  • 16
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 17
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 18
    0015060120 HH COLLAR SCREW M 6X12 W.LOCK
    HH COLLAR SCREW M 6X12 W.LOCK
  • 19
    58310051038 REAR SPROCKET 38-T
    REAR SPROCKET 38-T
  • 19
    58310151040 REAR SPROCKET 40-T
    REAR SPROCKET 40-T
  • 19
    58310051042 REAR SPROCKET 42-T
    REAR SPROCKET 42-T
  • 19
    58310151045 REAR SPROCKET 45-T
    REAR SPROCKET 45-T
  • 20
    58310151048 REAR SPROCKET 48-T
    REAR SPROCKET 48-T
  • 21
    54510052100 SPROCKET SCREW-AH M8X26 10.9
    SPROCKET SCREW-AH M8X26 10.9
  • 22
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 23
    50010065100 O-RING CHAIN 5/8X1/4" DID (118 ROLLS)
    O-RING CHAIN 5/8X1/4" DID (118 ROLLS)
  • 23
    50010065101 O-RING CHAIN 5/8X1/4" PER METER
    O-RING CHAIN 5/8X1/4" PER METER
  • 24
    50010066100 MASTER LINK 5/8X1/4" O-RING
    MASTER LINK 5/8X1/4" O-RING
  • 25
    58310050044 SPROCKET SUPPORT CPL.
    SPROCKET SUPPORT CPL.
  • 26
    54610417300 BUSH. F. SPROCKET SUPPORT L=25MM
    BUSH. F. SPROCKET SUPPORT L=25MM
  • 27
    54610459000 DAMPING RUBBER '91
    DAMPING RUBBER '91
  • 28
    0625032057 GROOVED BALL BEAR. 3205.B.2RSR
    GROOVED BALL BEAR. 3205.B.2RSR
  • 29
    54610018000 SEAL WASHER 3205 AV
    SEAL WASHER 3205 AV
  • 38
    55003135000 PLUG FOR RIM
    PLUG FOR RIM
  • 39
    50210086000 COVERING CAP SFL16
    COVERING CAP SFL16
  • 40
    50210085044 WHEEL SPINDLE REAR CPL.L=264MM
    WHEEL SPINDLE REAR CPL.L=264MM
  • 41
    56510084100 CHAIN TENSIONER
    CHAIN TENSIONER
  • 42
    50203030090 HH SCREW M8X40 A2 WS=10
    HH SCREW M8X40 A2 WS=10
  • 43
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 44
    50310099000 HEXAGON NUT M20X1,5
    HEXAGON NUT M20X1,5
