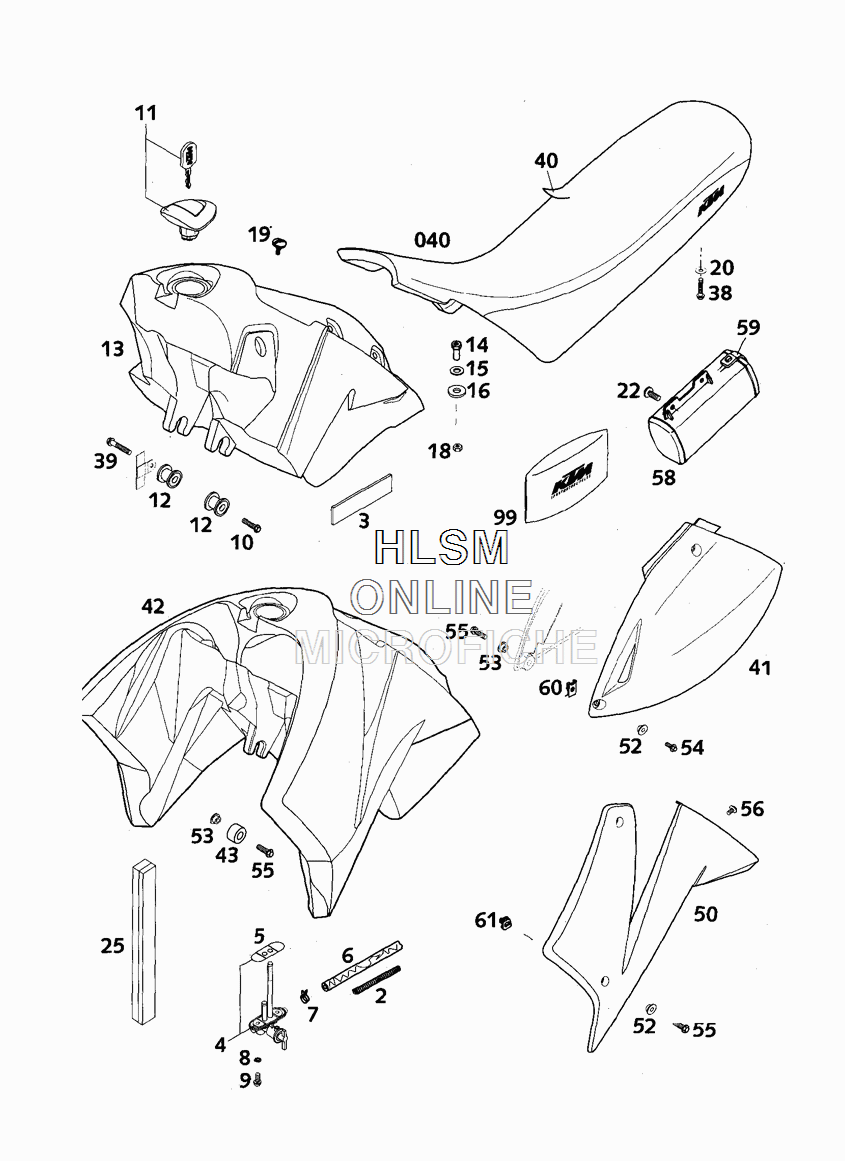

TANK - SEAT - COVER для Ktm LC4 640 Super Moto - 2000 года выпуска

  • №
    Артикул
    Название
  • 2
    58036006100 PRESSURE SPRING 0,9MM
    PRESSURE SPRING 0,9MM
  • 3
    54601097000 RUBBER STRIP 85X25X3 MM
    RUBBER STRIP 85X25X3 MM
  • 4
    51107004000 FUEL COCK CPL.MIKUNI CK-69
    FUEL COCK CPL.MIKUNI CK-69
  • 5
    58307106100 GASKET FUEL COCK MIKUNI
    GASKET FUEL COCK MIKUNI
  • 6
    54435024001 HOSE ID 7,5 PER METER
    HOSE ID 7,5 PER METER
  • 7
    58031005000 CLAMP YDNAC 10128 12MM
    CLAMP YDNAC 10128 12MM
  • 8
    0603061001 CU-SEAL RING DIN7603- 6X10X1
    CU-SEAL RING DIN7603- 6X10X1
  • 9
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 10
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 11
    58407008100 TANK PLUG
    TANK PLUG
  • 12
    58307113250 TANK BUSHING CPL. 12 X 34 X 25
    TANK BUSHING CPL. 12 X 34 X 25
  • 13
    58407013144 FUEL TANK CPL.12 LI. BLACK
    FUEL TANK CPL.12 LI. BLACK
  • 14
    58307014000 SPECIAL NUT M8
    SPECIAL NUT M8
  • 15
    58307019000 WASHER 10,5 X 25 X 1,5
    WASHER 10,5 X 25 X 1,5
  • 16
    51005067100 INSOLATE WASHER 12X28X3
    INSOLATE WASHER 12X28X3
  • 18
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 19
    58007044000 OVAL HEAD SCREW M6X15 250/4T
    OVAL HEAD SCREW M6X15 250/4T
  • 20
    50232050000 WASHER 6,2 X 18 X 2
    WASHER 6,2 X 18 X 2
  • 22
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 25
    58107011000 FOAM RUBBER STRIP
    FOAM RUBBER STRIP
  • 38
    0015060353 HH COLLAR SCREW M 6X35 WS=8
    HH COLLAR SCREW M 6X35 WS=8
  • 39
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 040
    58407140000 SEAT HIGH ORANGE/BLACK
    SEAT HIGH ORANGE/BLACK
  • 040
    58407140100 SEAT LOW ORANGE/BLACK
    SEAT LOW ORANGE/BLACK
  • 040
    58407140200 SEAT HIGH SILVER/BLACK
    SEAT HIGH SILVER/BLACK
  • 040
    58407140300 SEAT LOW SILVER/BLACK
    SEAT LOW SILVER/BLACK
  • 040
    58407140400 SEAT SILVER/BLACK 18LITER
    SEAT SILVER/BLACK 18LITER
  • 040
    58407140500 SEAT ORANGE/BLACK 18LITER
    SEAT ORANGE/BLACK 18LITER
  • 40
    58407140050 SEAT COVER HIGH ORANGE
    SEAT COVER HIGH ORANGE
  • 40
    58407140150 SEAT COVER LOW ORANGE
    SEAT COVER LOW ORANGE
  • 40
    58407140250 SEAT COVER HIGH SILVER
    SEAT COVER HIGH SILVER
  • 40
    58407140350 SEAT COVER LOW SILVER
    SEAT COVER LOW SILVER
  • 40
    58407140450 SEAT COVER SILVER 18LITER
    SEAT COVER SILVER 18LITER
  • 40
    58407140550 SEAT COVER 18LITER ORANGE
    SEAT COVER 18LITER ORANGE
  • 41
    5840804100090 SIDE COVER L/S SILVER
    SIDE COVER L/S SILVER
  • 41
    5840804210090 SIDE COVER R/S SILVER
    SIDE COVER R/S SILVER
  • 42
    58407013200 FUEL TANK 18LI. LC4 BLACK
    FUEL TANK 18LI. LC4 BLACK
  • 43
    50307014000 TANK ROLLER 12X26X12
    TANK ROLLER 12X26X12
  • 50
    5840805000004 SPOILER L/S ORANGE
    SPOILER L/S ORANGE
  • 50
    5840805000090 SPOILER L/S SILVER
    SPOILER L/S SILVER
  • 50
    5840805100004 SPOILER R/S ORANGE
    SPOILER R/S ORANGE
  • 50
    5840805100090 SPOILER R/S SILVER
    SPOILER R/S SILVER
  • 52
    50308052000 BUSH FOR SPOILER 6X11X16X5
    BUSH FOR SPOILER 6X11X16X5
  • 53
    50308053000 BUSH FOR SPOILER 6X11X16X7,5
    BUSH FOR SPOILER 6X11X16X7,5
  • 54
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 55
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 56
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 58
    58012058000 TOOL BOX CPL.
    TOOL BOX CPL.
  • 59
    58012058050 RUBBER FOR TOOL BOX
    RUBBER FOR TOOL BOX
  • 60
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 61
    50235033300 SNAP-NUT HOLDER M6 KP142
    SNAP-NUT HOLDER M6 KP142
  • 99
    58329099000 TOOL SET
    TOOL SET
