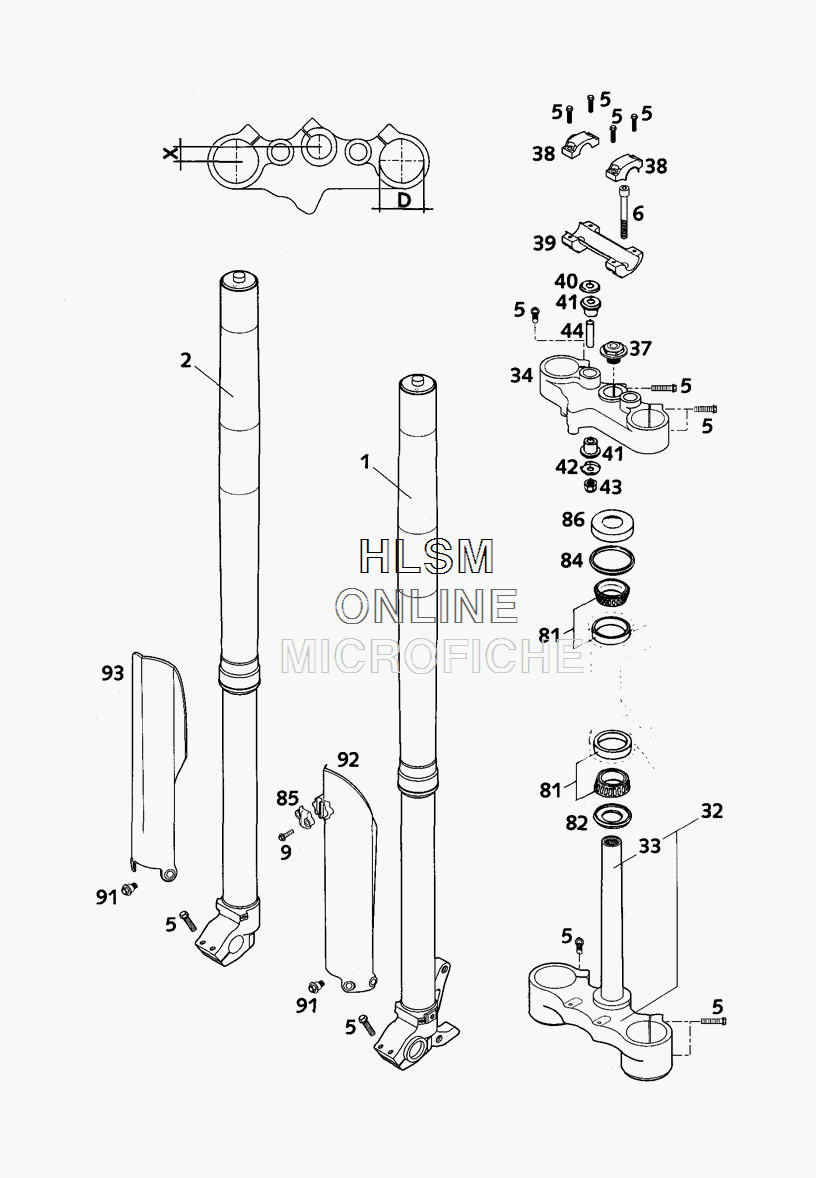

FRONT FORK (W/ PAINT) для Ktm LC4 640 Super Moto - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0518U790LS FORK LEG L/S WP43
    FORK LEG L/S WP43
  • 2
    0518U790RS FORK LEG R/S WP43
    FORK LEG R/S WP43
  • 5
    0015080303 HH COLLAR SCREW M 8X30 WS=10
    HH COLLAR SCREW M 8X30 WS=10
  • 6
    0984100703 AH SCREW DIN6912-M10X70
    AH SCREW DIN6912-M10X70
  • 9
    0017060203 SPECIAL SCREW T60 6X20
    SPECIAL SCREW T60 6X20
  • 32
    58401032018 BOT TRIPLE CLAMP X=18MM/D=57MM
    BOT TRIPLE CLAMP X=18MM/D=57MM
  • 33
    50101033100 FORK TUBE L=244
    FORK TUBE L=244
  • 34
    58401034218 TOP TRIPLE CLAMP X=18MM/D=57MM
    TOP TRIPLE CLAMP X=18MM/D=57MM
  • 37
    50301036000 STEER.HEAD SCREW M20X1,5 SW=27
    STEER.HEAD SCREW M20X1,5 SW=27
  • 38
    59001038000 HANDLEBAR CLAMP 22MM 2T
    HANDLEBAR CLAMP 22MM 2T
  • 39
    59001039000 HANDLEBAR SUPPORT 22M 2T
    HANDLEBAR SUPPORT 22M 2T
  • 40
    56401042000 WASHER 10,5X32X2
    WASHER 10,5X32X2
  • 41
    56401040000 RUBBER BUSHING
    RUBBER BUSHING
  • 42
    56401142000 WASHER 10,5X31
    WASHER 10,5X31
  • 43
    0985100003 SELF LOCKING NUT DIN0985-M10
    SELF LOCKING NUT DIN0985-M10
  • 44
    56401041100 SPACER TUBE 10,2X12X44
    SPACER TUBE 10,2X12X44
  • 81
    54201081000 TAPERED ROLLER BEARING
    TAPERED ROLLER BEARING
  • 82
    54601084100 O-RING SUPPORT W SEALING LIP
    O-RING SUPPORT W SEALING LIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 85
    59001085000 CLAMP F BRAKE HOSE SC
    CLAMP F BRAKE HOSE SC
  • 86
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 91
    59001092050 SPECIAL SCREW M6X12,5 SW=8
    SPECIAL SCREW M6X12,5 SW=8
  • 92
    59001092000 FORK PROTEC. L/S SILVER
    FORK PROTEC. L/S SILVER
  • 93
    59001093000 FORK PROTEC. R/S SILVER
    FORK PROTEC. R/S SILVER
