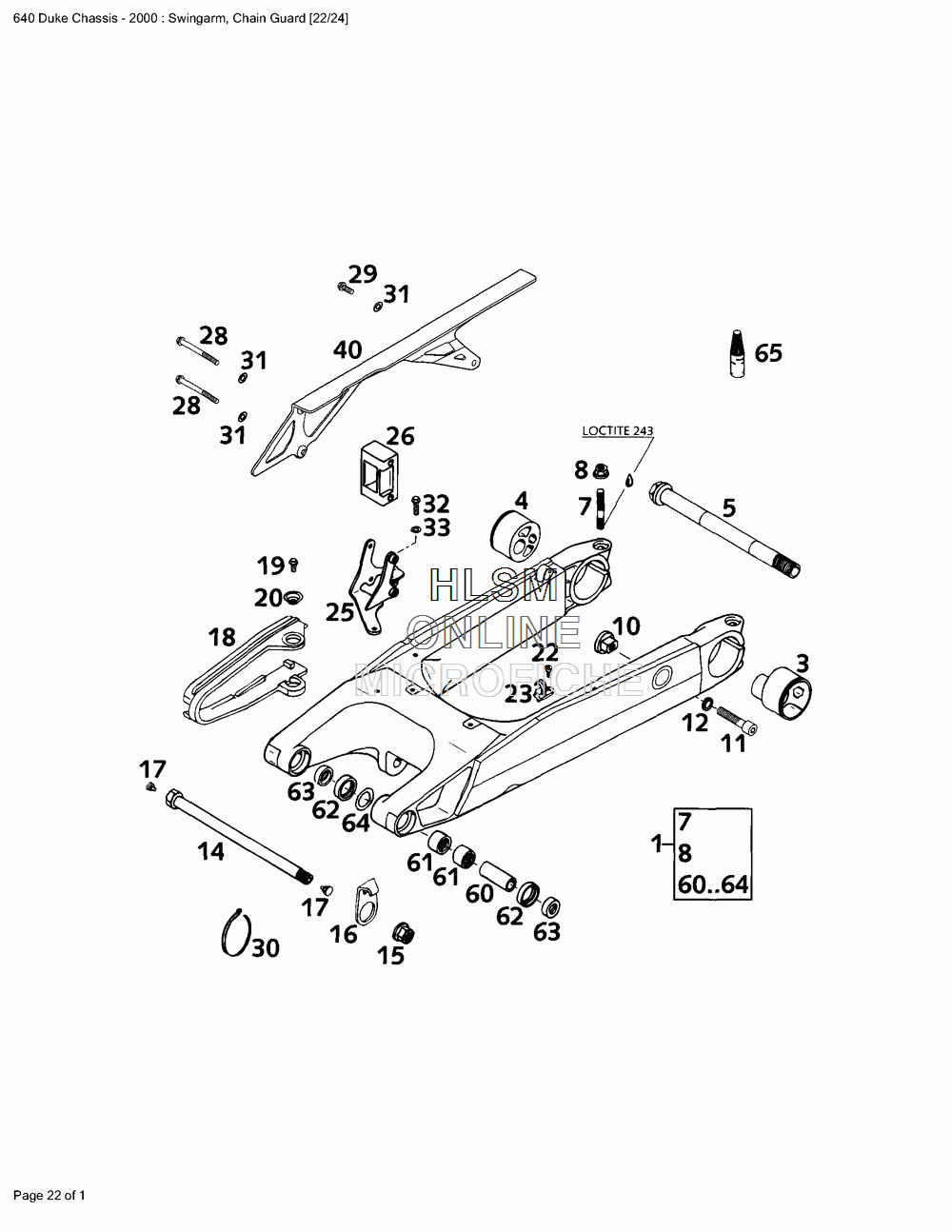

SWINGARM W/ CHAIN GUARD для Ktm LC4 640 Duke II - 2000 года выпуска`
-
№АртикулНазвание
-
158704030044 SWINGARM CPL. 563MMSWINGARM CPL. 563MM
-
358303030011 ECCENTRICS L/SECCENTRICS L/S
-
458303130011 ECCENTRICS R/SECCENTRICS R/S
-
558310085000 WHEEL SPINDLE REAR L=232MMWHEEL SPINDLE REAR L=232MM
-
70835100456 STUD DIN0835-M10X45STUD DIN0835-M10X45
-
854630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
1058313050000 BRAKE CARRIER SUPPORTBRAKE CARRIER SUPPORT
-
110912100453 AH SCREW DIN0912-M10X45AH SCREW DIN0912-M10X45
-
1250233041100 PAIR OF WASHERS M10 NORDLOCKPAIR OF WASHERS M10 NORDLOCK
-
1454603014000 SWINGARM BOLT 15X250SWINGARM BOLT 15X250
-
1554603015000 SELF LOCKING NUT M14X1,5 WS=19SELF LOCKING NUT M14X1,5 WS=19
-
1650230211000 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
1754403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
-
1858307073000 CHAIN SLIDING GUARDCHAIN SLIDING GUARD
-
190015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
2072210079000 BUCKETBUCKET
-
220010050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
2354611076000 RETAINING CLAMP FOR BRAKE HOSERETAINING CLAMP FOR BRAKE HOSE
-
2558307068000 BRACKET CHAIN GUIDEBRACKET CHAIN GUIDE
-
2651007066400 CHAIN GUIDECHAIN GUIDE
-
280015060553 HH COLLAR SCREW M 6X55 WS=8HH COLLAR SCREW M 6X55 WS=8
-
290015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
3044011076200 CABLE TIE 200MMCABLE TIE 200MM
-
310125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
320015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
330125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
4058707060000 CHAINGUARD ALUCHAINGUARD ALU
-
6050203081700 BEARING SLEEVE 15X20X38,7BEARING SLEEVE 15X20X38,7
-
6150203097000 NEEDLE BUSH HK 2012NEEDLE BUSH HK 2012
-
620760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
6354603090000 BUCKET F.SHAFTSEALRING 15X25X9BUCKET F.SHAFTSEALRING 15X25X9
-
6459004033000 STOP DISK 22,2X31,7X0,8STOP DISK 22,2X31,7X0,8
-
656899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
