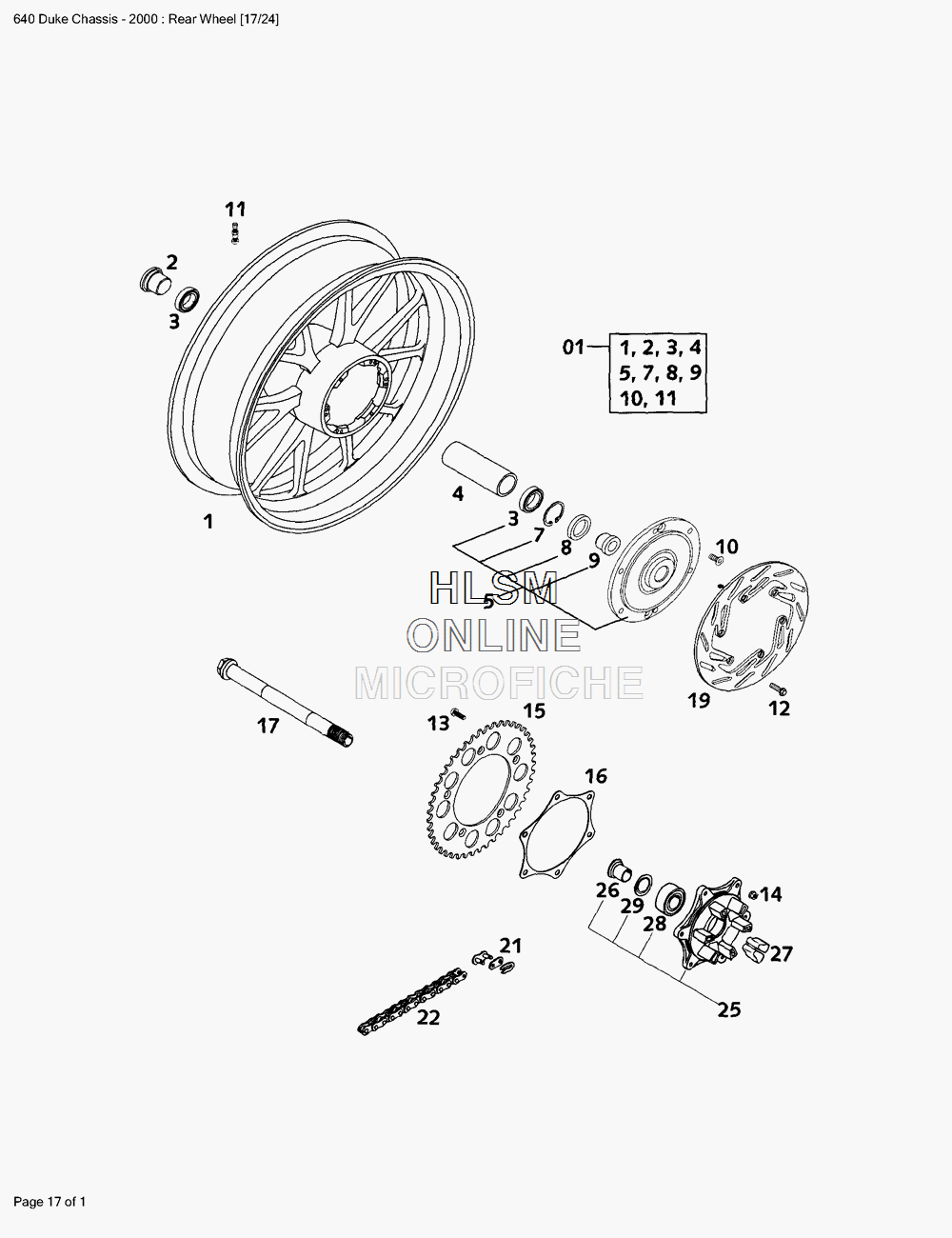

REAR WHEEL для Ktm LC4 640 Duke II - 2000 года выпуска

  • №
    Артикул
    Название
  • 01
    58710068000 REAR WHEEL CPL.4,25X17" (SILVER)
    REAR WHEEL CPL.4,25X17" (SILVER)
  • 01
    5871006800030 REAR WHEEL CPL.4,25X17" (BLACK)
    REAR WHEEL CPL.4,25X17" (BLACK)
  • 2
    54610416300 BUSHING FOR REAR DAMPED HUB
    BUSHING FOR REAR DAMPED HUB
  • 3
    0625062052 GROOVED BALL BEAR. 6205 2RSRC3
    GROOVED BALL BEAR. 6205 2RSRC3
  • 4
    54610411100 BEARING SPACER TUBE L=98,5MM
    BEARING SPACER TUBE L=98,5MM
  • 5
    58710061000 BRAKEDISC ADAPTER REAR
    BRAKEDISC ADAPTER REAR
  • 7
    0472052200 CIRCLIP DIN0472-52X2
    CIRCLIP DIN0472-52X2
  • 8
    0760325272 SHAFT SEAL RING 32X52X7 B
    SHAFT SEAL RING 32X52X7 B
  • 9
    54610016000 BUSHING FOR HUB
    BUSHING FOR HUB
  • 10
    0991060126 FLAT HEAD SCREW DIN7991-M 6X12
    FLAT HEAD SCREW DIN7991-M 6X12
  • 11
    58709077044 VALVE CPL. BBS
    VALVE CPL. BBS
  • 12
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 13
    54510052100 SPROCKET SCREW-AH M8X26 10.9
    SPROCKET SCREW-AH M8X26 10.9
  • 14
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 15
    58310051038 REAR SPROCKET 38-T
    REAR SPROCKET 38-T
  • 15
    58310151040 REAR SPROCKET 40-T
    REAR SPROCKET 40-T
  • 15
    58310051042 REAR SPROCKET 42-T
    REAR SPROCKET 42-T
  • 15
    58310151045 REAR SPROCKET 45-T
    REAR SPROCKET 45-T
  • 16
    58710049000 SPROCKET ADAPTER 1,5MM NIRO
    SPROCKET ADAPTER 1,5MM NIRO
  • 17
    58310085000 WHEEL SPINDLE REAR L=232MM
    WHEEL SPINDLE REAR L=232MM
  • 19
    58010060600 REAR BRAKE DISK 220MM COUNTERS
    REAR BRAKE DISK 220MM COUNTERS
  • 21
    50010066100 MASTER LINK 5/8X1/4" O-RING
    MASTER LINK 5/8X1/4" O-RING
  • 22
    50010065101 O-R.CHAIN 5/8X1/4"/M W.LINK
    O-R.CHAIN 5/8X1/4"/M W.LINK
  • 22
    50010065100 O-RING CHAIN 5/8X1/4" DID (118 ROLLS)
    O-RING CHAIN 5/8X1/4" DID (118 ROLLS)
  • 25
    58310050044 SPROCKET SUPPORT CPL.
    SPROCKET SUPPORT CPL.
  • 26
    54610417300 BUSH. F.SPROCKET SUPPORT L=25MM
    BUSH. F.SPROCKET SUPPORT L=25MM
  • 27
    54610459000 DAMPING RUBBER
    DAMPING RUBBER
  • 28
    0625032057 GROOVED BALL BEAR. 3205.B.2RSR
    GROOVED BALL BEAR. 3205.B.2RSR
  • 29
    54610018000 SEAL WASHER 3205 AV
    SEAL WASHER 3205 AV
