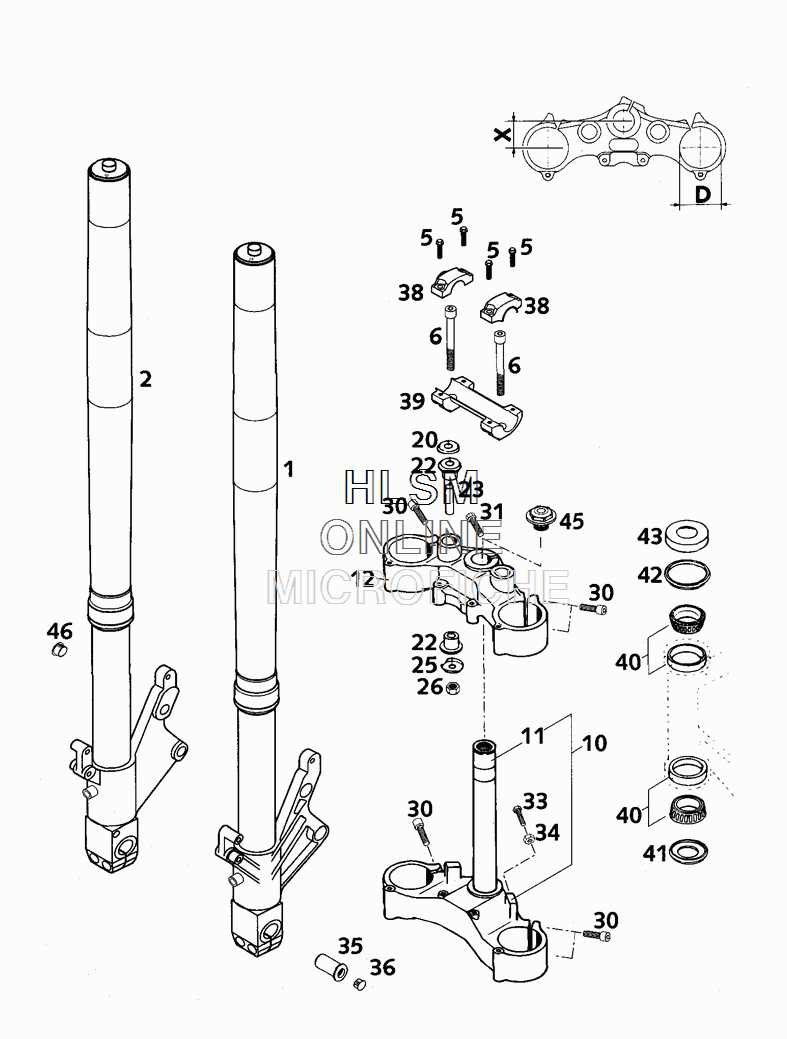

FRONT FORK (WHITE POWER) для Ktm LC4 640 Duke II - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0518U795LS FORK LEG L/S WP
    FORK LEG L/S WP
  • 2
    0518U795RS FORK LEG R/S WP
    FORK LEG R/S WP
  • 5
    0015080303 HH COLLAR SCREW M 8X30 WS=10
    HH COLLAR SCREW M 8X30 WS=10
  • 6
    0984100703 AH SCREW DIN6912-M10X70
    AH SCREW DIN6912-M10X70
  • 10
    58701032000 BOT.TRIPLE CLAMP X=35MM/D=54MM (BLACK)
    BOT.TRIPLE CLAMP X=35MM/D=54MM (BLACK)
  • 11
    50101033100 FORK TUBE L=244
    FORK TUBE L=244
  • 12
    58701034000 TOP TRIPLE CLAMP X=35MM/D=54MM (BLACK)
    TOP TRIPLE CLAMP X=35MM/D=54MM (BLACK)
  • 20
    56401042000 WASHER 10,5X32X2
    WASHER 10,5X32X2
  • 22
    56401040000 RUBBER BUSHING
    RUBBER BUSHING
  • 23
    56401041100 SPACER TUBE 10,2X12X44
    SPACER TUBE 10,2X12X44
  • 25
    56401142000 WASHER 10,5X31
    WASHER 10,5X31
  • 26
    0985100003 SELF LOCKING NUT DIN0985-M10
    SELF LOCKING NUT DIN0985-M10
  • 30
    0912080353 AH SCREW DIN0912-M 8X35
    AH SCREW DIN0912-M 8X35
  • 31
    0912080253 AH SCREW DIN0912-M 8X25
    AH SCREW DIN0912-M 8X25
  • 33
    0933070253 HH SCREW DIN0933-M 7X25
    HH SCREW DIN0933-M 7X25
  • 34
    0934070003 HEXAGON NUT DIN0934-M 7
    HEXAGON NUT DIN0934-M 7
  • 35
    58309082000 AXLE NUT M17 X 1,5
    AXLE NUT M17 X 1,5
  • 36
    58301098000 PLASTIC CAP 3/8 2663
    PLASTIC CAP 3/8 2663
  • 38
    59001038100 HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 39
    59001039100 HANDLEBAR SUPPORT 28MM
    HANDLEBAR SUPPORT 28MM
  • 40
    54201081000 TAPERED ROLLER BEARING
    TAPERED ROLLER BEARING
  • 41
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 42
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 43
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 45
    50301036000 STEER.HEAD SCREW M20X1,5 SW=27
    STEER.HEAD SCREW M20X1,5 SW=27
  • 46
    58301098000 PLASTIC CAP 3/8 2663
    PLASTIC CAP 3/8 2663
