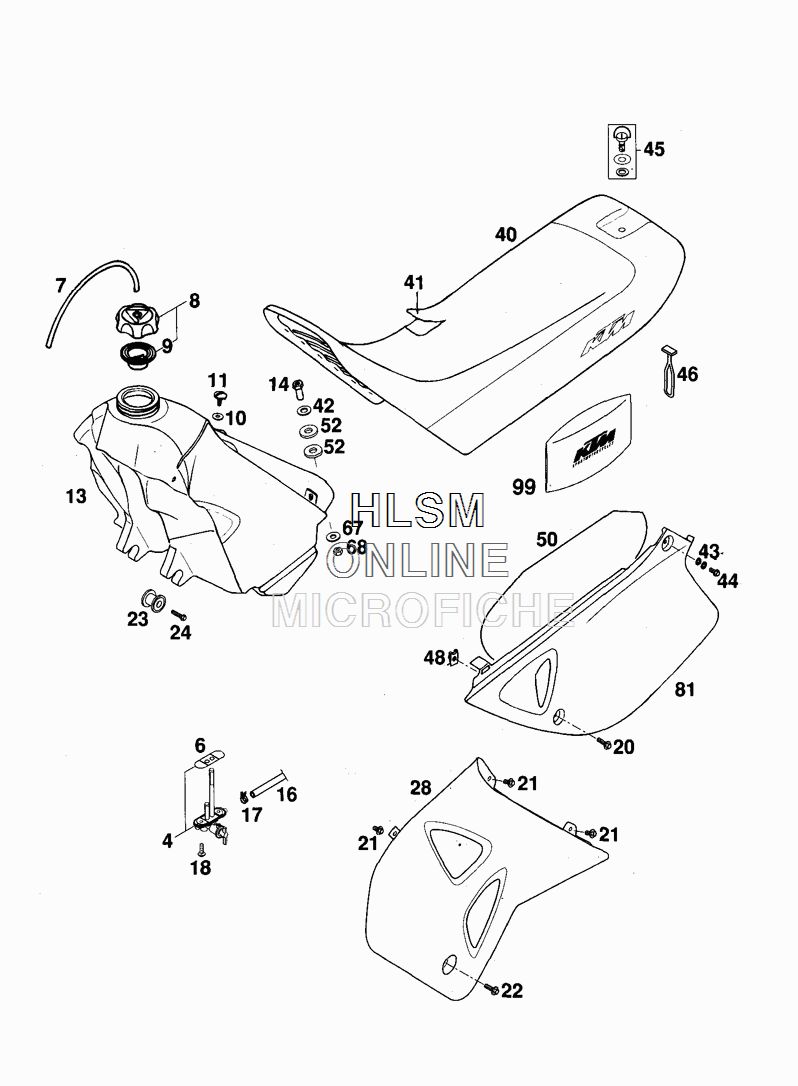

TANK - SEAT - COVER для Ktm 400 LC4 SXC - 2000 года выпуска

  • №
    Артикул
    Название
  • 4
    51107004000 FUEL COCK CPL.MIKUNI CK-69 (ONE CONNECTION)
    FUEL COCK CPL.MIKUNI CK-69 (ONE CONNECTION)
  • 6
    58307106100 GASKET FUEL COCK MIKUNI
    GASKET FUEL COCK MIKUNI
  • 7
    31007107001 PVC-HOSE 6X9 MM PER METER
    PVC-HOSE 6X9 MM PER METER
  • 8
    49007008044 FILLER CAP CPL. SMALL
    FILLER CAP CPL. SMALL
  • 9
    49007009000 GASKET FOR FILLER CAP
    GASKET FOR FILLER CAP
  • 10
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 11
    58007044000 OVAL HEAD SCREW M6X15 250/4T
    OVAL HEAD SCREW M6X15 250/4T
  • 13
    5830701320099 FUEL TANK 9 LI. TRANSP.
    FUEL TANK 9 LI. TRANSP.
  • 14
    58307014000 SPECIAL NUT M8
    SPECIAL NUT M8
  • 16
    54435024001 HOSE ID 7,5 PER METER
    HOSE ID 7,5 PER METER
  • 17
    58031005000 CLAMP YDNAC 10128 12MM
    CLAMP YDNAC 10128 12MM
  • 18
    0017060203 SPECIAL SCREW T60 M 6X20
    SPECIAL SCREW T60 M 6X20
  • 20
    0014060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 21
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 22
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 23
    58307113250 TANK BUSHING CPL. 12 X 34 X 25
    TANK BUSHING CPL. 12 X 34 X 25
  • 24
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 28
    5833502820004 SPOILER (ORANGE) (LEFT)
    SPOILER (ORANGE) (LEFT)
  • 28
    5833502920004 SPOILER (ORANGE) (RIGHT)
    SPOILER (ORANGE) (RIGHT)
  • 40
    58307340600 SEAT (ORANGE/BLACK)
    SEAT (ORANGE/BLACK)
  • 41
    58307340650 SEAT COVER (ORANGE/BLACK)
    SEAT COVER (ORANGE/BLACK)
  • 42
    58307019000 WASHER 10,5 X 25 X 1,5
    WASHER 10,5 X 25 X 1,5
  • 43
    50233041000 PAIR OF WASHERS M6 NORDLOCK
    PAIR OF WASHERS M6 NORDLOCK
  • 44
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 45
    58307040551 QUICK RELEASE CPL.
    QUICK RELEASE CPL.
  • 46
    55011186000 BRACKET RUBBER
    BRACKET RUBBER
  • 48
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 50
    58308041050 HEAT PROTECTOR
    HEAT PROTECTOR
  • 52
    51005067100 INSOLATE WASHER 12X28X3
    INSOLATE WASHER 12X28X3
  • 67
    0021080003 WASHER DIN9021-A 8,4
    WASHER DIN9021-A 8,4
  • 68
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 81
    5830804100089 SIDE COVER (SILVER) (LEFT)
    SIDE COVER (SILVER) (LEFT)
  • 81
    5830804200089 SIDE COVER (SILVER)
    SIDE COVER (SILVER)
  • 99
    58329099000 TOOL SET
    TOOL SET
