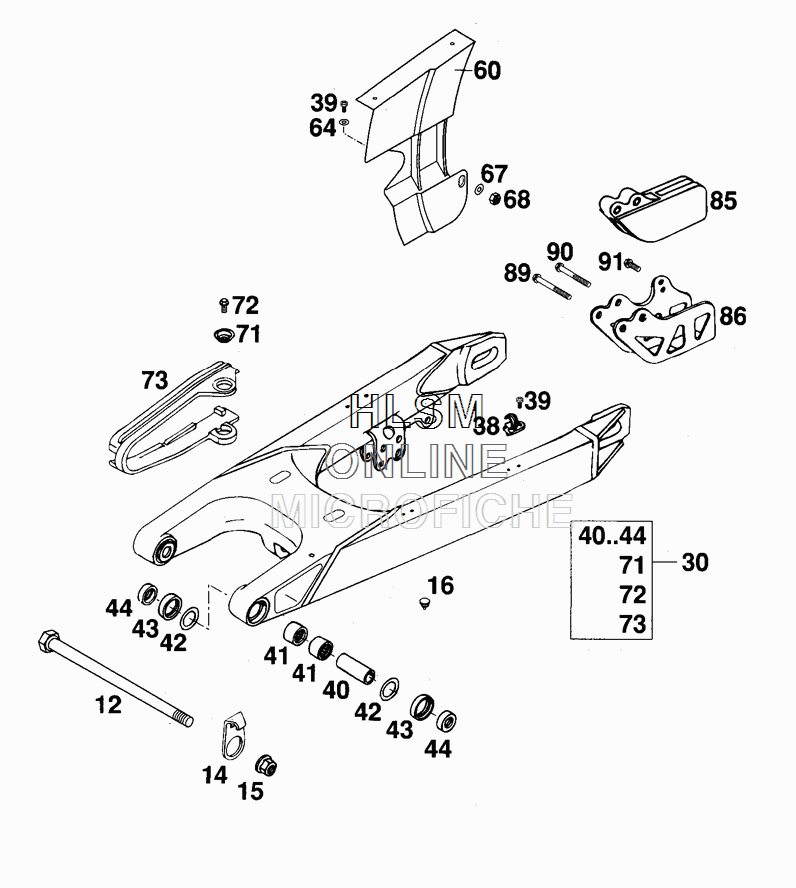

SWINGARM W/ CHAIN GUARD для Ktm 400 LC4 SXC - 2000 года выпуска

  • №
    Артикул
    Название
  • 12
    54603014000 SWINGARM BOLT 15X250
    SWINGARM BOLT 15X250
  • 14
    50230211000 BRAKE HOSE GUIDE
    BRAKE HOSE GUIDE
  • 15
    54603015000 SELF LOCKING NUT M14X1,5 WS=19
    SELF LOCKING NUT M14X1,5 WS=19
  • 16
    54403135000 PLASTIC CAP SFL10
    PLASTIC CAP SFL10
  • 30
    58303130344 SWINGARM CPL. L=567MM
    SWINGARM CPL. L=567MM
  • 38
    54611076100 RETAIN.CLAMP FOR BRAKE HOSE
    RETAIN.CLAMP FOR BRAKE HOSE
  • 39
    0010050103 SPECIAL SCREW M 5,0X10
    SPECIAL SCREW M 5,0X10
  • 40
    50203081700 BEARING SLEEVE 15X20X38,7
    BEARING SLEEVE 15X20X38,7
  • 41
    50203097000 NEEDLE BUSH HK 2012
    NEEDLE BUSH HK 2012
  • 42
    54603036000 STOP DISK 22,2X31,7X1
    STOP DISK 22,2X31,7X1
  • 43
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 44
    54603090000 BUCKET F.SHAFTSEALRING 15X25X9
    BUCKET F.SHAFTSEALRING 15X25X9
  • 60
    58307060000 CHAINGUARD SMALL
    CHAINGUARD SMALL
  • 64
    0125050003 WASHER DIN0125-A 5,0
    WASHER DIN0125-A 5,0
  • 67
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 68
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 71
    72210079000 BUCKET
    BUCKET
  • 72
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 73
    58307073000 CHAIN SLIDING GUARD DUKE
    CHAIN SLIDING GUARD DUKE
  • 85
    54607066100 CHAIN GUIDE REAR
    CHAIN GUIDE REAR
  • 86
    50207070000 RETAINING PLATE CHAIN GUIDE
    RETAINING PLATE CHAIN GUIDE
  • 89
    0015060553 HH COLLAR SCREW M 6X55 WS=8
    HH COLLAR SCREW M 6X55 WS=8
  • 90
    0015060503 HH COLLAR SCREW M 6X50 WS=8
    HH COLLAR SCREW M 6X50 WS=8
  • 91
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
