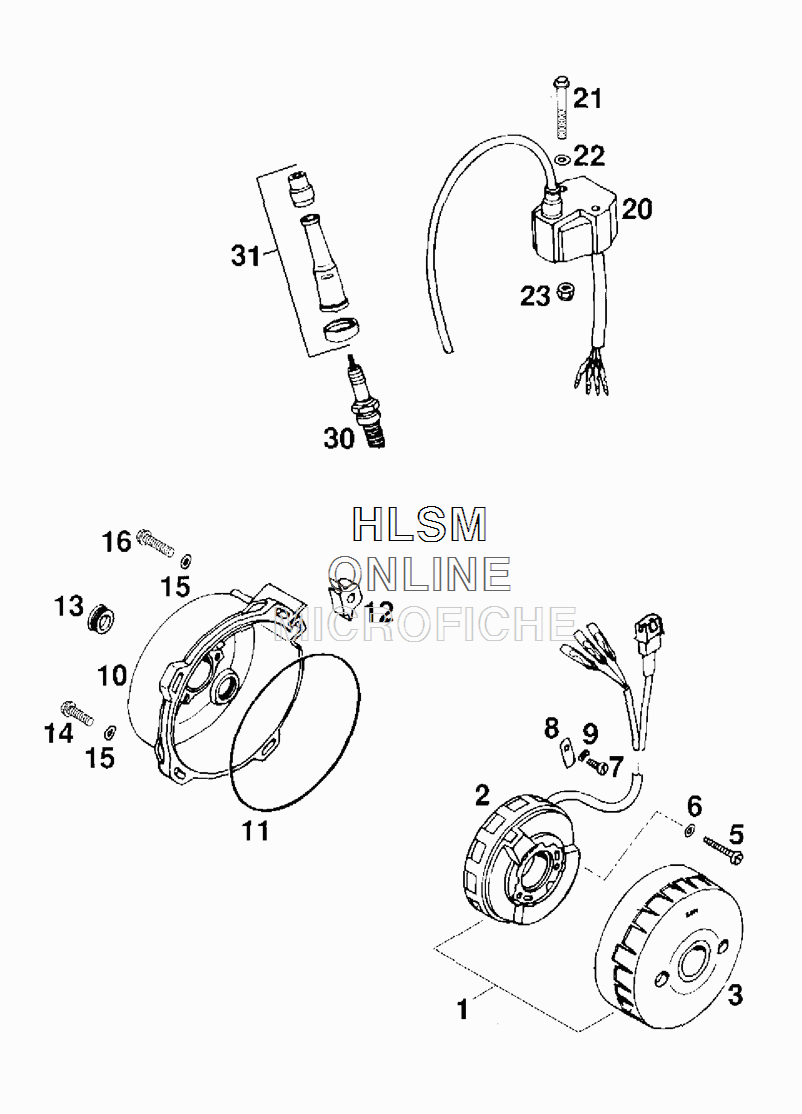

IGNITION SYSTEM (SEM) для Ktm 400 LC4 SXC - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    58031002100 IGNITION SEM K11/60G-08 LEFT
    IGNITION SEM K11/60G-08 LEFT
  • 2
    58031002050 STATOR LOOSE "13"
    STATOR LOOSE "13"
  • 3
    58031002051 ROTOR LOOSE
    ROTOR LOOSE
  • 5
    0084050303 CYLINDER SCREW DIN0084-M 5X30A
    CYLINDER SCREW DIN0084-M 5X30A
  • 6
    0125050003 WASHER DIN0125-A 5,0
    WASHER DIN0125-A 5,0
  • 7
    0500050083 SPECIAL SCREW DIN7500-M 5X 8
    SPECIAL SCREW DIN7500-M 5X 8
  • 8
    50031003000 REMAINING PLATE
    REMAINING PLATE
  • 9
    0137050003 SPRING WASHER DIN0137-R 5
    SPRING WASHER DIN0137-R 5
  • 10
    58030002200 IGNITION COVER (BLACK)
    IGNITION COVER (BLACK)
  • 11
    0770020490 O-RING 126,72X1,78 870
    O-RING 126,72X1,78 870
  • 12
    58031004000 RUBBER SLEEVE
    RUBBER SLEEVE
  • 13
    58030002050 PLUG M18X1,5
    PLUG M18X1,5
  • 14
    0015060203 HH COLLAR SCREW M 6X70 WS=8
    HH COLLAR SCREW M 6X70 WS=8
  • 15
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 16
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 20
    58031006000 IGNITION COIL TM 14-05
    IGNITION COIL TM 14-05
  • 21
    0015060453 HH COLLAR SCREW M 6X45 WS=8
    HH COLLAR SCREW M 6X45 WS=8
  • 22
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 23
    0985060003 SELF LOCK. NUT DIN0985 M 6
    SELF LOCK. NUT DIN0985 M 6
  • 30
    58031093005 SPARK PLUG NGK D8EA
    SPARK PLUG NGK D8EA
  • 31
    58031010000 SPARK PLUG CONNECT.SD 05 F NGK
    SPARK PLUG CONNECT.SD 05 F NGK
