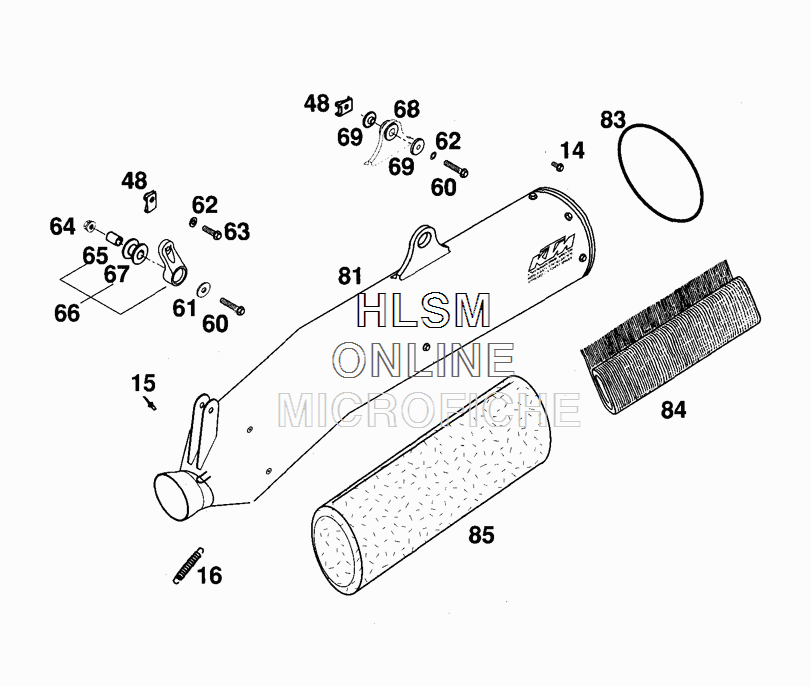

SILENCER для Ktm 400 LC4 SXC - 2000 года выпуска

  • №
    Артикул
    Название
  • 14
    0009050103 SPECIAL SCREW M 5,0X10
    SPECIAL SCREW M 5,0X10
  • 15
    0011480802 DUMMY RIVET 4,8X 8,0 NIRO
    DUMMY RIVET 4,8X 8,0 NIRO
  • 16
    50305016000 TENSION SPRING L=55MM
    TENSION SPRING L=55MM
  • 48
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 60
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 61
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 62
    0137060000 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 63
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 64
    56509064000 SELF LOCKING NUT M6
    SELF LOCKING NUT M6
  • 65
    54305069000 BUSHING 12 X 7 X 16
    BUSHING 12 X 7 X 16
  • 66
    58305165244 SILENCER BRACKET CPL. SHORT
    SILENCER BRACKET CPL. SHORT
  • 67
    54305068100 DAMPING COMPONENT (SILICON GREY)
    DAMPING COMPONENT (SILICON GREY)
  • 68
    54605068000 EXHAUST BRACKET RUBBER (BLACK)
    EXHAUST BRACKET RUBBER (BLACK)
  • 69
    54605069000 BUSHING 7,5X12X28X7,8
    BUSHING 7,5X12X28X7,8
  • 81
    58305082000 SILENCER SXC SPARKY
    SILENCER SXC SPARKY
  • 83
    0770223601 O-RING 82,14X3,53 SILIKON
    O-RING 82,14X3,53 SILIKON
  • 84
    58305078002 STUFFING YARN REAR 90 GRAMM
    STUFFING YARN REAR 90 GRAMM
  • 85
    58305078000 STUFFINGYARN FRONT 400GRAMM
    STUFFINGYARN FRONT 400GRAMM
