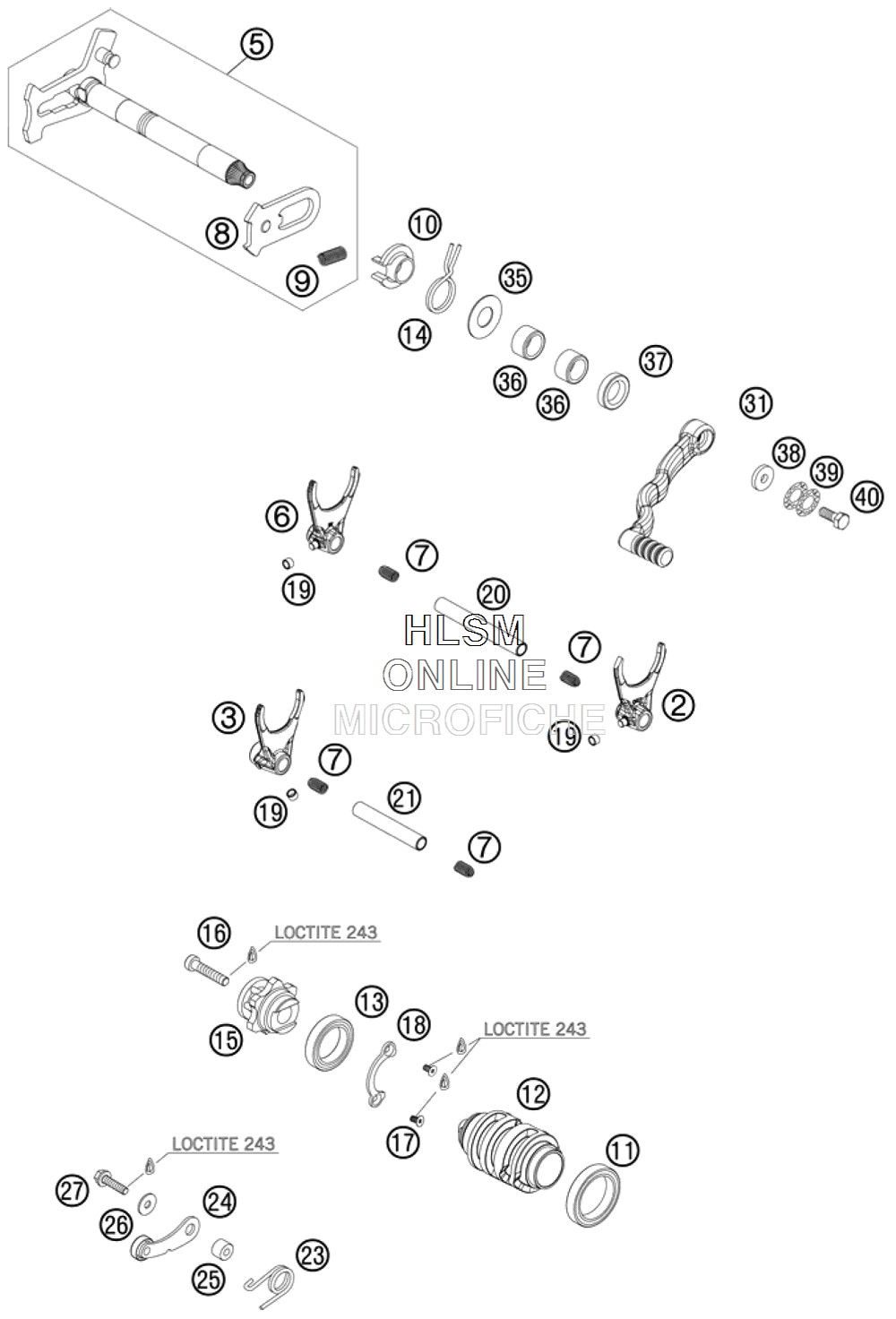

SHIFTING MECHANISM для Ktm 450 SX F - 2009 года выпуска
-
№АртикулНазвание
-
277334002100 SHIFTING FORK 2ND/4TH GEARSHIFTING FORK 2ND/4TH GEAR
-
377334003100 SHIFTING FORK 3RD/5TH GEARSHIFTING FORK 3RD/5TH GEAR
-
583534005044 SHIFT SHAFT CPL.SHIFT SHAFT CPL.
-
677334001100 SHIFTING FORK 1ST.GEARSHIFTING FORK 1ST.GEAR
-
758038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
854634008044 SLIDING PLATE CPL.SLIDING PLATE CPL.
-
956534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
1054634020000 SPRING GUIDESPRING GUIDE
-
110625061806 BALL BEARING 61806BALL BEARING 61806
-
1277334012100 SHIFT ROLLER 5GSHIFT ROLLER 5G
-
130625068050 BALL BEARING 6805 C4 NTN JAPANBALL BEARING 6805 C4 NTN JAPAN
-
1454834014000 RETURN SPRINGRETURN SPRING
-
1583534015000 SHIFT LOCATING DRUM CPL.SHIFT LOCATING DRUM CPL.
-
160012060303 AH SCREW DIN6912 M6X30 8.8AH SCREW DIN6912 M6X30 8.8
-
170019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
1877334090000 BUSHING RETAINING PLATEBUSHING RETAINING PLATE
-
1950334018100 SHIFTING ROLLER 6X8X5,2SHIFTING ROLLER 6X8X5,2
-
2077334020000 SHIFT RAILSHIFT RAIL
-
2177334019000 FRONT SHIFT RAILFRONT SHIFT RAIL
-
2360034023000 ARRESTING LEVER SPRINGARRESTING LEVER SPRING
-
2450334024144 LOCATING LEVER CPL.LOCATING LEVER CPL.
-
2554634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
260021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
270025050206 HH COLLAR SCREW M5X20 TX30HH COLLAR SCREW M5X20 TX30
-
3183534031000 SHIFT LEVERSHIFT LEVER
-
3254634131000 STEP PLATE FOR SHIFT LEVERSTEP PLATE FOR SHIFT LEVER
-
3354634031050 BOLT 6X25 FOR SHIFT LEVERBOLT 6X25 FOR SHIFT LEVER
-
3454634032100 SHIFTING LEVER SPRINGSHIFTING LEVER SPRING
-
3554634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
3654632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
370760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
3850232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
3950233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
400933060165 HH SCREW DIN0933-M 6X16 10.9HH SCREW DIN0933-M 6X16 10.9
