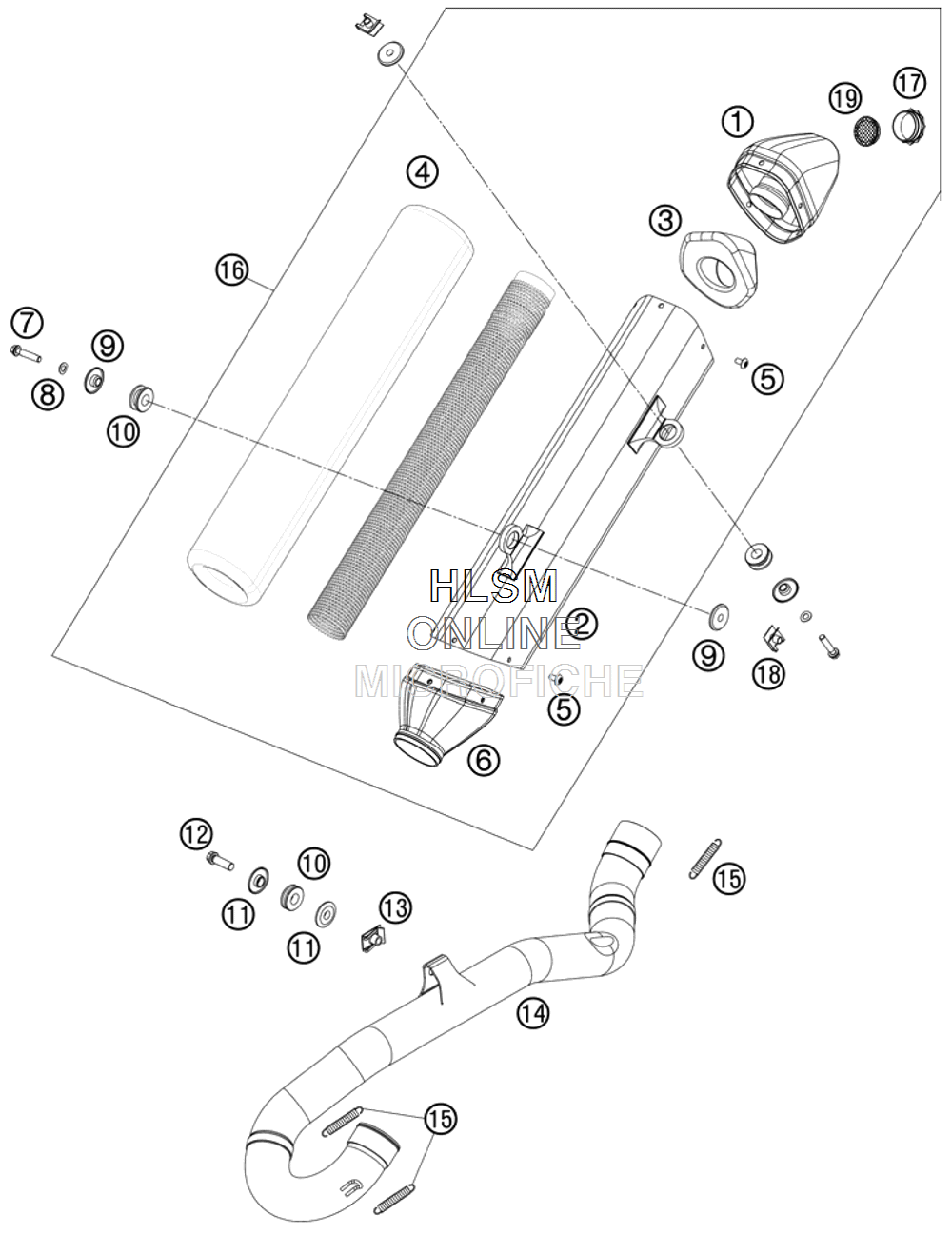

EXHAUST SYSTEM для Ktm 450 SX F - 2009 года выпуска
-
№АртикулНазвание
-
1*83505079060 ENDCAP THROTT.+SPARKYENDCAP THROTT.+SPARKY
-
2*83505079056 SILENCER HOUSINGSILENCER HOUSING
-
3*77005078065 STUFFING YARN 65 GRAMSTUFFING YARN 65 GRAM
-
4*77005078495 STUFFING YARN 495 GRASTUFFING YARN 495 GRA
-
558605083010 SCREW TORX M5X10SCREW TORX M5X10
-
6*83505079050 SIL. CONNECT. CAP CPL. ATVSIL. CONNECT. CAP CPL. ATV
-
70025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
80137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
954605069000 BUSHING 7,5X12X28X7,8BUSHING 7,5X12X28X7,8
-
1054605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
1159405069000 BUSHING FOR EXHAUST SUPPORTBUSHING FOR EXHAUST SUPPORT
-
120025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
1354603048000 RANGE CHANGE METAL NUT M8RANGE CHANGE METAL NUT M8
-
14*83505007000 EXHAUST MANIFOLD R/S CPL.EXHAUST MANIFOLD R/S CPL.
-
15*54309036000 RETURN SPRING L=38 MMRETURN SPRING L=38 MM
-
16*83505079000 SILENCER CPL. R/S ATVSILENCER CPL. R/S ATV
-
1777005081055 SIL. ELEMENT EXC-FSIL. ELEMENT EXC-F
-
1854603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
1977005081065 THROTTLE ELEMENT CP L.THROTTLE ELEMENT CP L.
