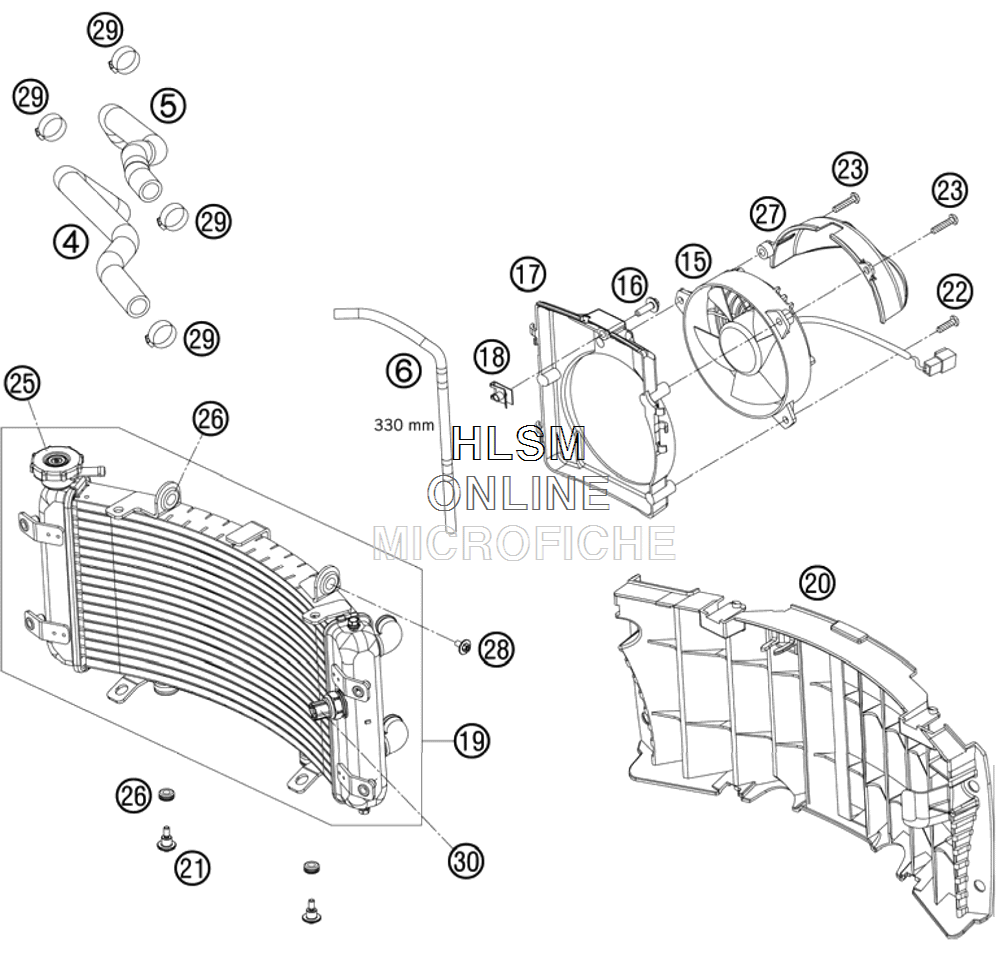

COOLING SYSTEM для Ktm 450 SX F - 2009 года выпуска

  • №
    Артикул
    Название
  • 4
    83535026000 COOLING WATER HOSE
    COOLING WATER HOSE
  • 5
    83535027000 PREFORMED HOSE RADIATOR-CYL.
    PREFORMED HOSE RADIATOR-CYL.
  • 6
    83535065001 OVERFLOW HOSE 6X10 L=330MM
    OVERFLOW HOSE 6X10 L=330MM
  • 15
    60035041000 FAN L/S
    FAN L/S
  • 16
    0024060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 17
    83035041000 FAN COWL ATV
    FAN COWL ATV
  • 18
    54603048100 RANGE CHANGE METAL NUT
    RANGE CHANGE METAL NUT
  • 19
    83035010000 RADIATOR ATV
    RADIATOR ATV
  • 20
    83035040000 RADIATOR PROTECTOR
    RADIATOR PROTECTOR
  • 21
    60035001000 SPECIAL SCREW M6X21 WS=8
    SPECIAL SCREW M6X21 WS=8
  • 22
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
  • 23
    0017060303 SPECIAL SCREW T60 6X30 WS=6
    SPECIAL SCREW T60 6X30 WS=6
  • 25
    59035009000 RADIAT.CAP 20,3PSI (1,4BAR)
    RADIAT.CAP 20,3PSI (1,4BAR)
  • 26
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 27
    83035042000 AIR CONDUCTION COWL ATV
    AIR CONDUCTION COWL ATV
  • 28
    0024060123 COLLAR SCREW M6X12
    COLLAR SCREW M6X12
  • 29
    10001020000 HOSE CLAMP GEMI 16-27
    HOSE CLAMP GEMI 16-27
  • 30
    83035045000 THERMOSWITCH 80-85 DG
    THERMOSWITCH 80-85 DG
