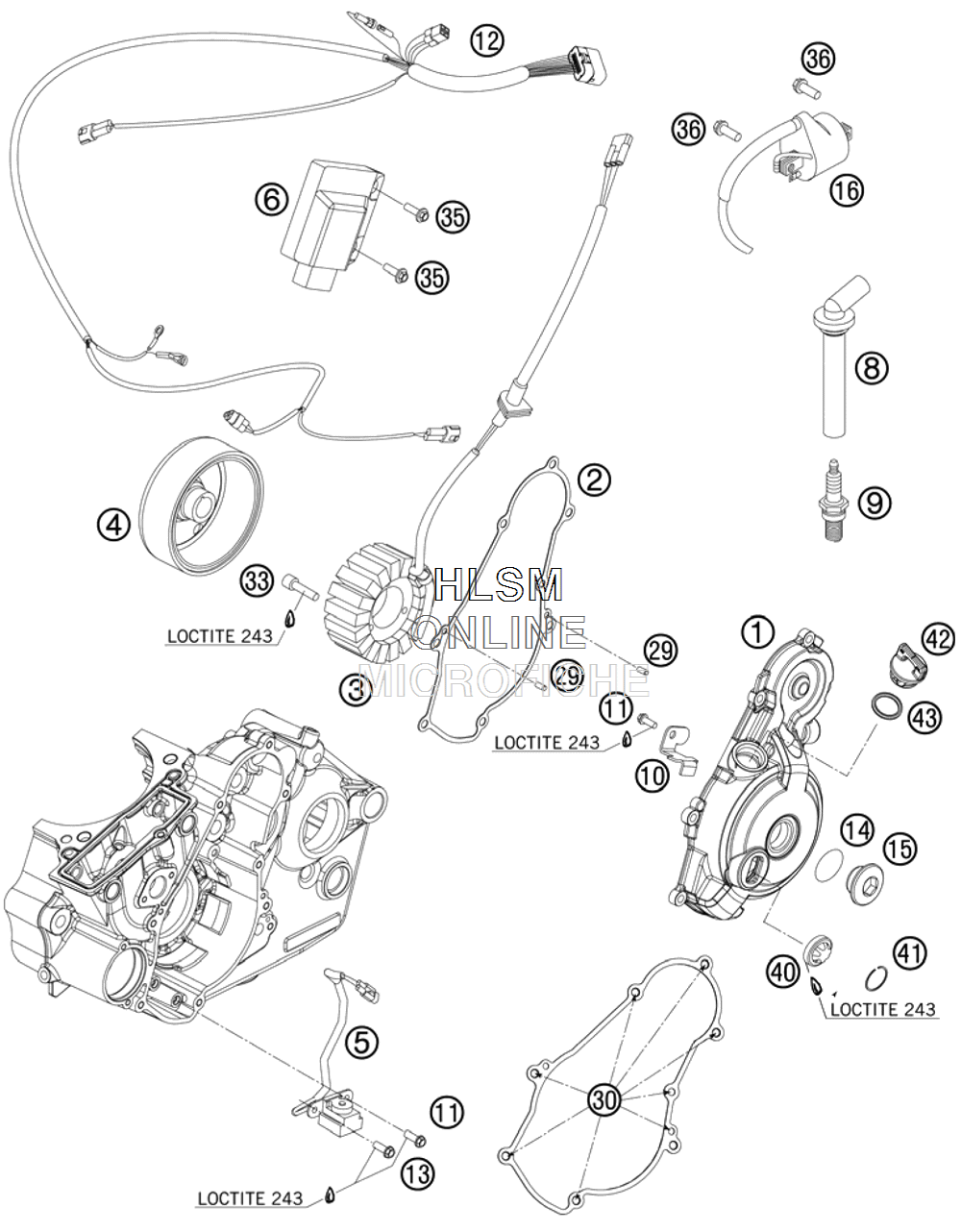

IGNITION SYSTEM для Ktm 450 SX F - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    8353000200015 IGNITION COVER
    IGNITION COVER
  • 2
    83530040000 IGNITION COVER GASKET
    IGNITION COVER GASKET
  • 3
    83039004000 STATOR
    STATOR
  • 4
    83039005000 ROTOR
    ROTOR
  • 5
    77339034000 PULSER COIL KOKUSAN "PU5165"
    PULSER COIL KOKUSAN "PU5165"
  • 6
    83539031000 CDI UNIT ATV
    CDI UNIT ATV
  • 8
    77339090000 SPARK PLUG NGK-XD05EMGK
    SPARK PLUG NGK-XD05EMGK
  • 9
    77039093000 SPARK PLUG NGK CR9EKB
    SPARK PLUG NGK CR9EKB
  • 10
    83530002050 WIRE RETAINING BRACKET
    WIRE RETAINING BRACKET
  • 11
    0025050106 COLLAR SCREW M5X12 ISA30
    COLLAR SCREW M5X12 ISA30
  • 12
    83039032000 WIRING HAR. F. CDI-BOX
    WIRING HAR. F. CDI-BOX
  • 14
    0770220020 O-RING 22,00X2,00 B70
    O-RING 22,00X2,00 B70
  • 15
    6003009400030 SCREW PLUG M24X1,5 PA 6.6
    SCREW PLUG M24X1,5 PA 6.6
  • 16
    59039006000 IGNITIONCOIL KOKUSAN 4K3-A/B
    IGNITIONCOIL KOKUSAN 4K3-A/B
  • 29
    0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8
    NEEDLE ROL.DIN5402 NRB 4X9,8
  • 30
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 33
    0912050253 AH SCREW DIN0912-M 5X25
    AH SCREW DIN0912-M 5X25
  • 35
    0024060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 36
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 40
    59030019000 OIL LEVEL GLASS G 1777 Y
    OIL LEVEL GLASS G 1777 Y
  • 41
    61030019050 CIRCLIP OIL LEVEL GLASS
    CIRCLIP OIL LEVEL GLASS
  • 42
    58030020100 PLUG CPL. M24X3
    PLUG CPL. M24X3
  • 43
    0770191015 O-RING 19,00X3,00 NBR
    O-RING 19,00X3,00 NBR
