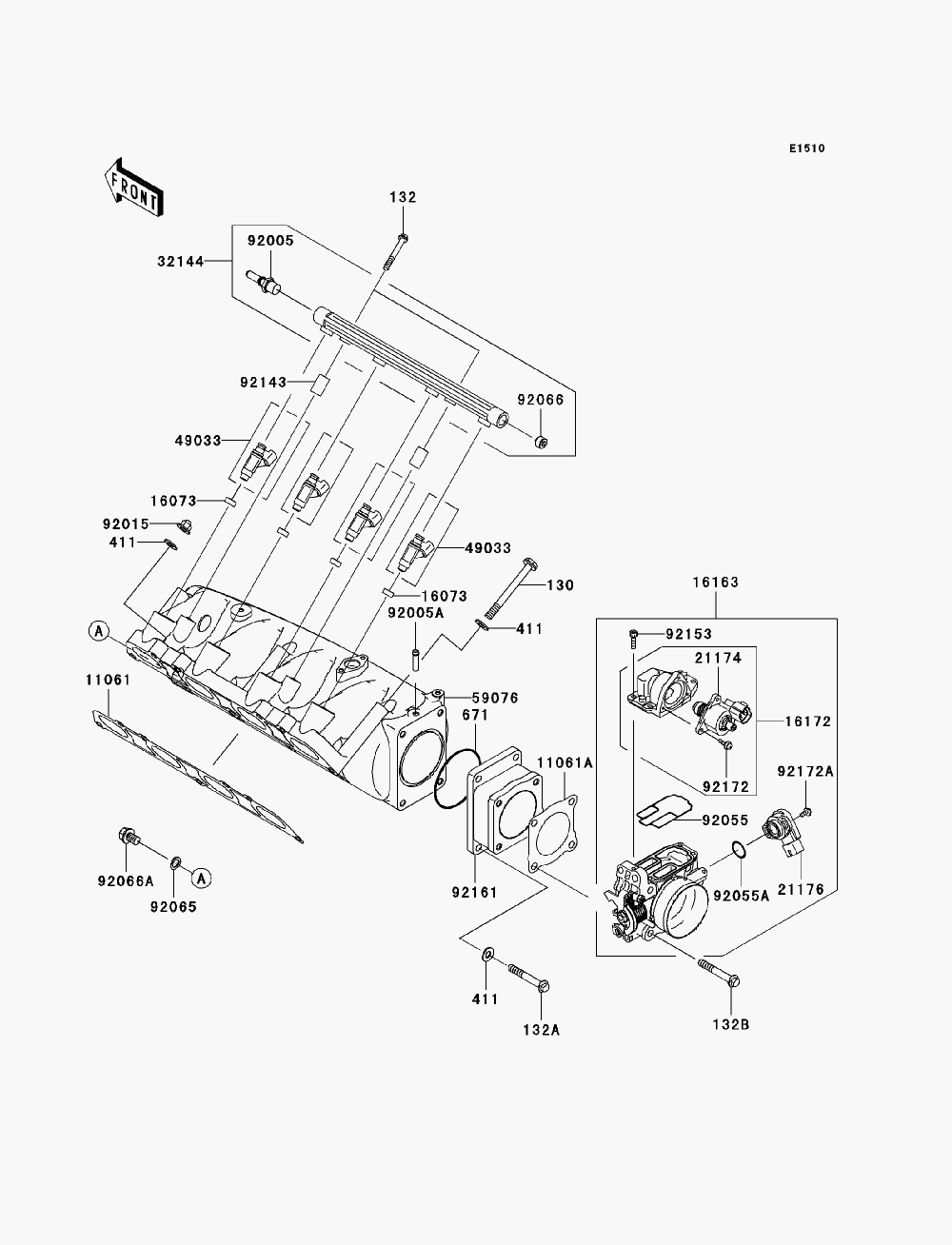

THROTTLE для Kawasaki ULTRA 250X (JT1500B7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130CD08120 BOLT-FLANGED,8X120BOLT-FLANGED,8X120
-
132132BD0650 BOLT-FLANGED-SMALL,6X50BOLT-FLANGED-SMALL,6X50
-
132A132BD0830 BOLT-FLANGED-SMALL,8X30BOLT-FLANGED-SMALL,8X30
-
132B132BD0855 BOLT-FLANGED-SMALL,8X55BOLT-FLANGED-SMALL,8X55
-
411411S0800 WASHER-PLAIN,8MMWASHER-PLAIN,8MM
-
671671B2570 O RING,70MMO RING,70MM
-
1106111061-3716 GASKET,MANIFOLDGASKET,MANIFOLD
-
11061A11061-3738 GASKET,THROTTLEGASKET,THROTTLE
-
1607316073-3707 INSULATORINSULATOR
-
1616316163-3712 THROTTLE-ASSY,AC60THROTTLE-ASSY,AC60
-
1617216172-3705 ACTUATORACTUATOR
-
2117421174-3706 MOTOR-ELECTRIC,STMMOTOR-ELECTRIC,STM
-
2117621176-3762 SENSOR,TPSSENSOR,TPS
-
3214432144-3706 PIPE-ASSYPIPE-ASSY
-
4903349033-3708 NOZZLE-INJECTIONNOZZLE-INJECTION
-
5907659076-3735 MANIFOLD-INTAKEMANIFOLD-INTAKE
-
9200592005-3754 FITTINGFITTING
-
92005A92005-3761 FITTINGFITTING
-
9201592015-1371 NUT,CAP,8MMNUT,CAP,8MM
-
9205592055-3773 RING-ORING-O
-
92055A92055-3774 RING-ORING-O
-
9206592065-058 GASKET,10.5X16X1GASKET,10.5X16X1
-
9206692066-3778 PLUGPLUG
-
92066A92066-3781 PLUGPLUG
-
9214392143-3731 COLLARCOLLAR
-
9215392153-3723 BOLTBOLT
-
9216192161-3771 DAMPERDAMPER
-
9217292172-3710 SCREWSCREW
-
92172A92172-3711 SCREWSCREW
