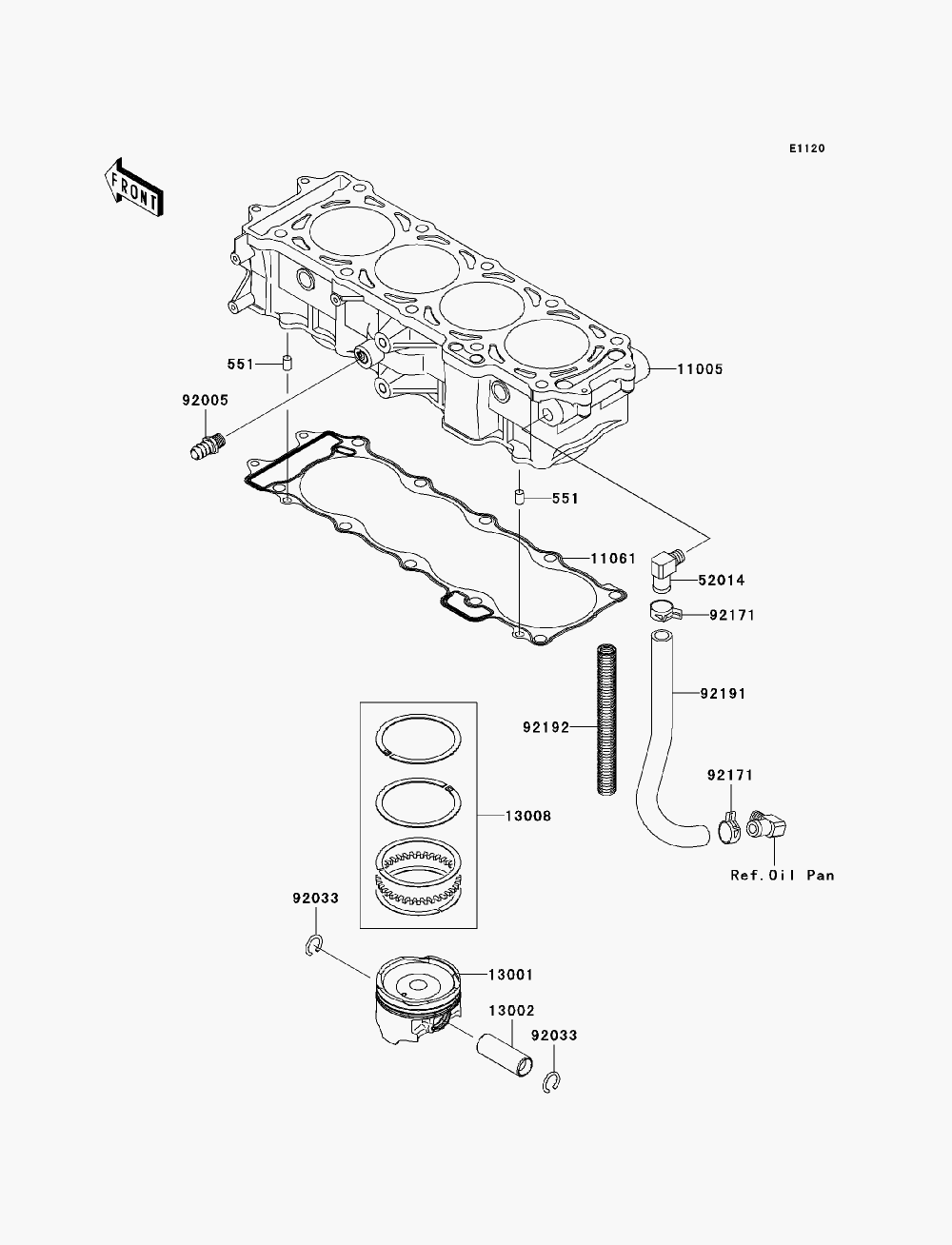

CYLINDER/PISTON(S) для Kawasaki ULTRA 250X (JT1500B7F) - 2007 года выпуска
-
№АртикулНазвание
-
551551R0812 PIN-DOWELPIN-DOWEL
-
1100511005-3766 CYLINDER-ENGINECYLINDER-ENGINE
-
1106111061-3708 GASKET,CYLINDER BASEGASKET,CYLINDER BASE
-
1300113001-3738 PISTON-ENGINEPISTON-ENGINE
-
1300213002-3709 PIN-PISTONPIN-PISTON
-
1300813008-1196 RING-SET-PISTONRING-SET-PISTON
-
5201452014-3717 ELBOWELBOW
-
9200592005-3714 FITTINGFITTING
-
9203392033-1188 RING-SNAPRING-SNAP
-
9217192171-3710 CLAMP,TUBECLAMP,TUBE
-
9219192191-3983 TUBE,BREATHERTUBE,BREATHER
-
9219292192-3702 TUBE,19.5X23.8X170TUBE,19.5X23.8X170
