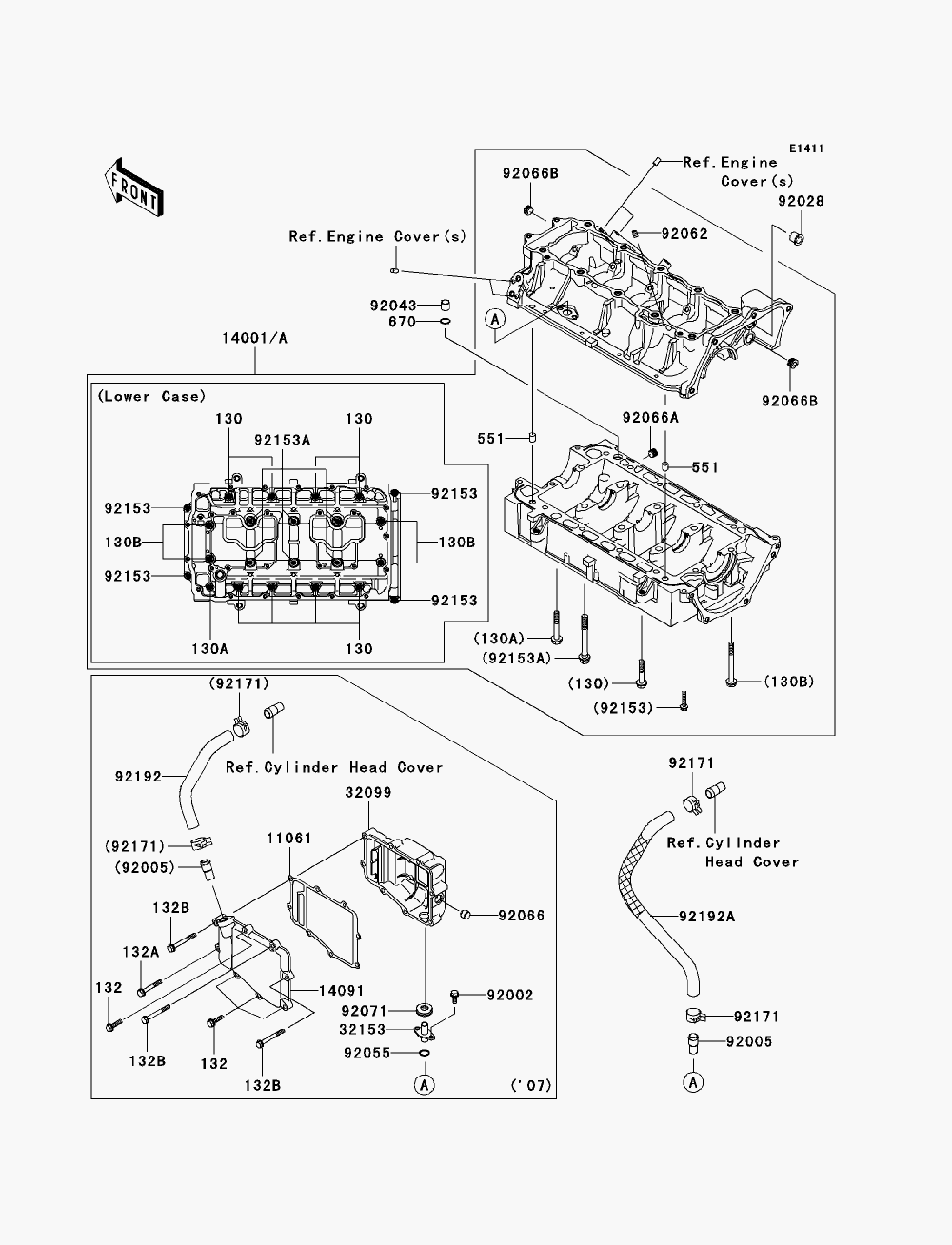

CRANKCASE для Kawasaki ULTRA 250X (JT1500B7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130CD0845 BOLT-FLANGED,8X45BOLT-FLANGED,8X45
-
130A130CD0855 BOLT-FLANGED,8X55BOLT-FLANGED,8X55
-
130B130CD0885 BOLT-FLANGED,8X85BOLT-FLANGED,8X85
-
132132BD0625 BOLT-FLANGED-SMALL,6X25BOLT-FLANGED-SMALL,6X25
-
132A132BD0645 BOLT-FLANGED-SMALL,6X45BOLT-FLANGED-SMALL,6X45
-
132B132BD0655 BOLT-FLANGED-SMALL,6X55BOLT-FLANGED-SMALL,6X55
-
551551R1012 PIN-DOWELPIN-DOWEL
-
670670D2014 O RING,14MMO RING,14MM
-
1106111061-3715 GASKET,BREATHER CASEGASKET,BREATHER CASE
-
1400114001-3745 SET-CRANKCASESET-CRANKCASE
-
1409114091-3761 COVER,BREATHERCOVER,BREATHER
-
3209932099-3848 CASE,BREATHERCASE,BREATHER
-
3215332153-3732 PIPE,BREATHERPIPE,BREATHER
-
9200292002-3728 BOLT,6X16BOLT,6X16
-
9200592005-3741 FITTINGFITTING
-
9202892028-3718 BUSHINGBUSHING
-
9204392043-1279 PIN,11.5X14X14PIN,11.5X14X14
-
9205592055-3768 RING-O,12X3RING-O,12X3
-
9206292062-0004 NOZZLENOZZLE
-
9206692066-1035 PLUG,BREATHERPLUG,BREATHER
-
92066A92066-3778 PLUGPLUG
-
92066B92066-3782 PLUGPLUG
-
9207192071-3839 GROMMETGROMMET
-
9215392153-3707 BOLT,6X30BOLT,6X30
-
92153A92153-3711 BOLT,10X85BOLT,10X85
-
9217192171-3710 CLAMP,TUBECLAMP,TUBE
-
9219292192-3778 TUBE,HEAD COVER-BREATHERTUBE,HEAD COVER-BREATHER
