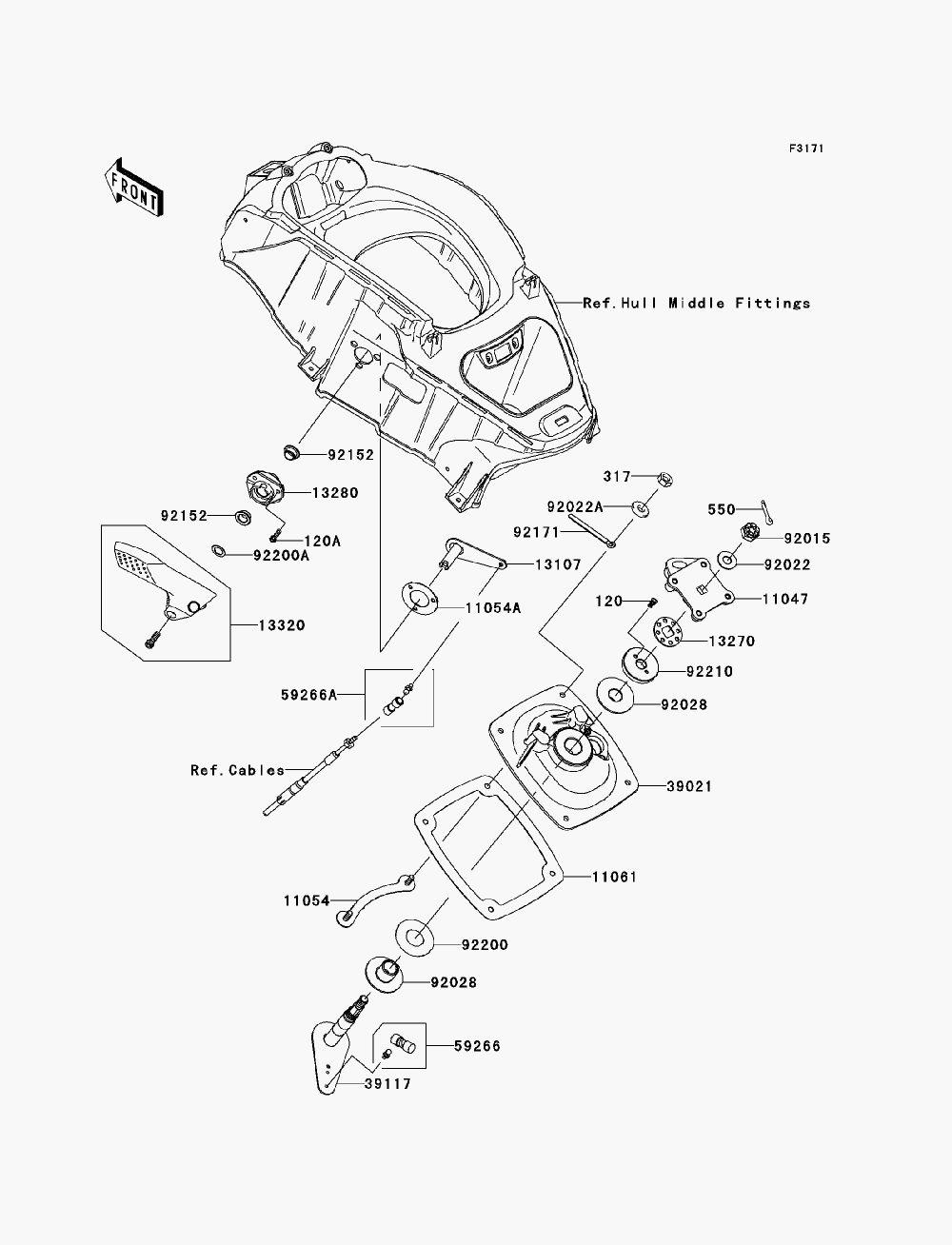

HANDLE POLE для Kawasaki ULTRA 250X (JT1500B7F) - 2007 года выпуска
-
№АртикулНазвание
-
120120R0510 BOLT-SOCKET,5X10BOLT-SOCKET,5X10
-
120A120R0620 BOLT-SOCKET,6X20BOLT-SOCKET,6X20
-
317317R0800 NUT-HEX-SMALLNUT-HEX-SMALL
-
550550S3035 PIN-COTTER,3X35PIN-COTTER,3X35
-
1104711047-3759 BRACKET,HANDLE HOLDERBRACKET,HANDLE HOLDER
-
1105411054-3701 BRACKET,HANDLE POLE BRACKETBRACKET,HANDLE POLE BRACKET
-
11054A11054-3712 BRACKETBRACKET
-
1106111061-3739 GASKET,HANDLE POLE BRACKETGASKET,HANDLE POLE BRACKET
-
1310713107-3799 SHAFTSHAFT
-
1327013270-3808 PLATE,STEERING NUTPLATE,STEERING NUT
-
1328013280-3752 HOLDERHOLDER
-
1332013320-3719 LEVER-ASSY, REVERSELEVER-ASSY, REVERSE
-
3902139021-3716 BRACKET-HANDLE POLEBRACKET-HANDLE POLE
-
3911739117-3715 SHAFT-STRGSHAFT-STRG
-
5926659266-3707 JOINT-BALLJOINT-BALL
-
59266A59266-3710 JOINT-BALLJOINT-BALL
-
9201592015-3805 NUT,CASTLE,14MMNUT,CASTLE,14MM
-
9202292022-3738 WASHER,15X34X2.0WASHER,15X34X2.0
-
92022A92022-3744 WASHER,8.4X23X2.5WASHER,8.4X23X2.5
-
9202892028-3748 BUSHING,STEERINGBUSHING,STEERING
-
9215292152-3748 COLLARCOLLAR
-
9217192171-3717 CLAMP,L=150CLAMP,L=150
-
9220092200-3718 WASHER,32.5X70X2WASHER,32.5X70X2
-
92200A92200-3800 WASHER,16.5X25X1WASHER,16.5X25X1
-
9221092210-3776 NUT,STEERING SHAFT,22MMNUT,STEERING SHAFT,22MM
