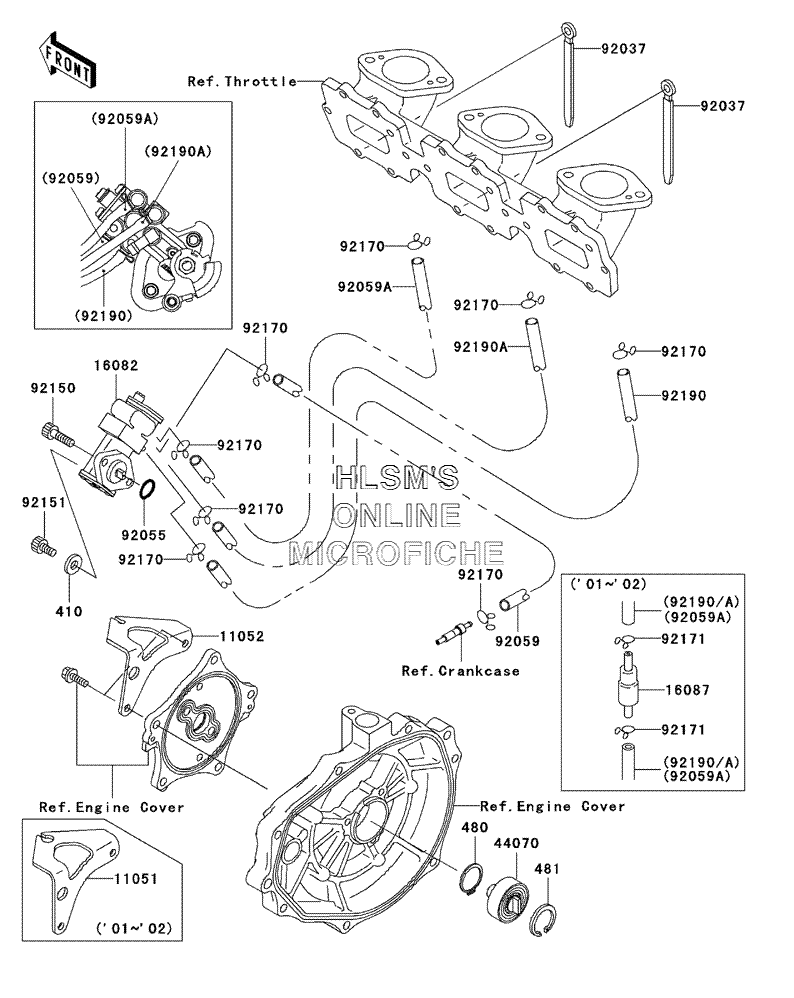

OIL PUMP для Kawasaki ULTRA 130 (JH1100-B4) - 2004 года выпуска
-
№АртикулНазвание
-
410410S0500 W, PLAIN, S, 5MMW, PLAIN, S, 5MM
-
480480J1200 CIRCLIP, TYPE, C, 12MMCIRCLIP, TYPE, C, 12MM
-
481481J3700 CIRCLIP, TYPE, C, 37MMCIRCLIP, TYPE, C, 37MM
-
1105211052-3764 BRACKET, CABLEBRACKET, CABLE
-
1608216082-3730 PUMP, ASSY., OILPUMP, ASSY., OIL
-
4407044070-3702 DAMPER, ASSY.DAMPER, ASSY.
-
9203792037-3736 CLAMP, L=100CLAMP, L=100
-
9205592055-055 O-RING, 19.5X1.5O-RING, 19.5X1.5
-
9205992059-3747 TUBETUBE
-
92059A92059-3755 TUBE, 3X6X380TUBE, 3X6X380
-
9215092150-3830 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
9215192151-3772 BOLT, SOCKETBOLT, SOCKET
-
9217092170-3750 CLAMPCLAMP
-
9219092190-3907 TUBE, 3X6X545TUBE, 3X6X545
-
92190A92190-3945 TUBE, 3X6X420TUBE, 3X6X420
