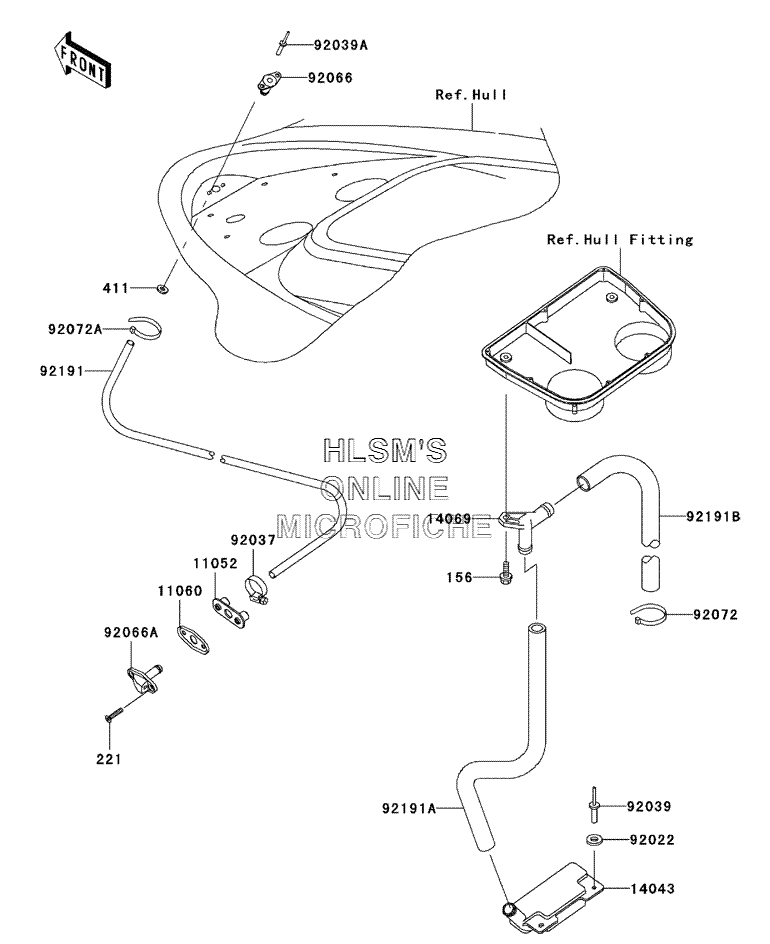

BILGE SYSTEM для Kawasaki ULTRA 130 (JH1100-B4) - 2004 года выпуска
-
№АртикулНазвание
-
156156R0618 BOLT, WP, 6X18BOLT, WP, 6X18
-
221221R0525 SCREW, CSK, CROSS, 5X25SCREW, CSK, CROSS, 5X25
-
411411S0500 WASHER, PLAIN, 5MMWASHER, PLAIN, 5MM
-
1105211052-3735 BRACKETBRACKET
-
1106011060-3798 GASKETGASKET
-
1404314043-3710 FILTERFILTER
-
1406914069-3708 BREATHERBREATHER
-
9202292022-3041 WASHER, 5X16X1.5WASHER, 5X16X1.5
-
9203792037-3726 CLAMPCLAMP
-
9203992039-3714 RIVETRIVET
-
92039A92039-3747 RIVETRIVET
-
9206692066-3766 PLUGPLUG
-
92066A92066-3767 PLUGPLUG
-
9207292072-1239 BAND, L=188BAND, L=188
-
92072A92072-3871 BAND, L=99BAND, L=99
-
9219192191-3862 TUBE, 10X13X600TUBE, 10X13X600
-
92191A92191-3883 TUBETUBE
-
92191B92191-3896 TUBE, 15.88X22.24X570TUBE, 15.88X22.24X570
