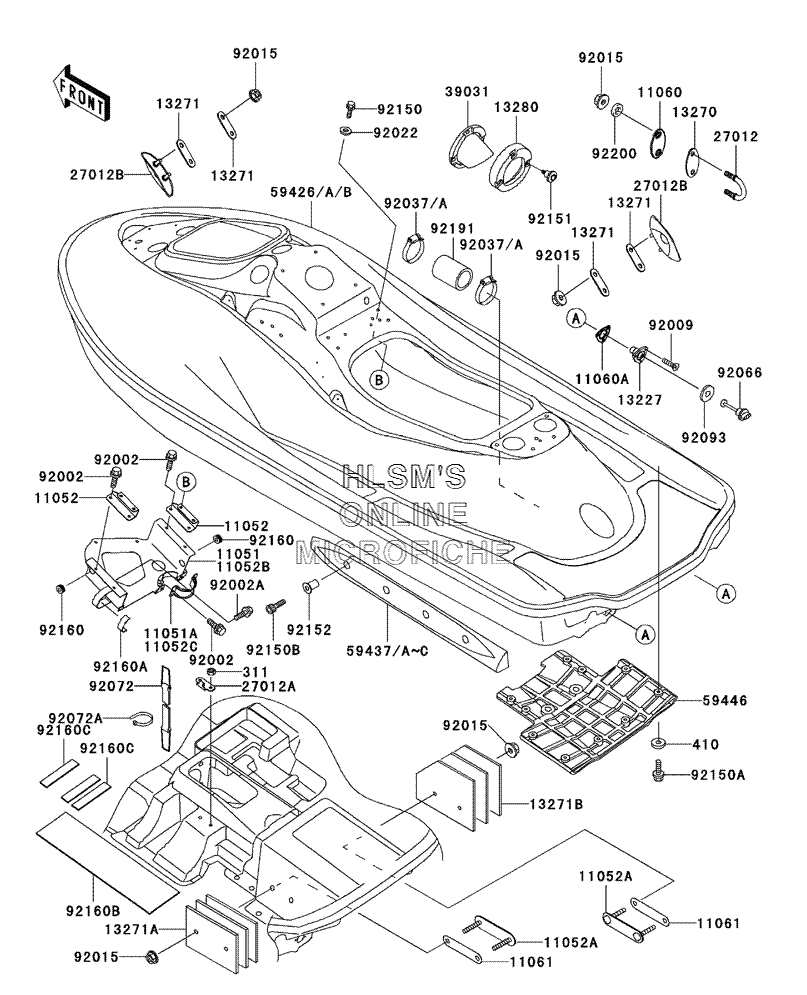

HULL для Kawasaki ULTRA 130 (JH1100-B4) - 2004 года выпуска
-
№АртикулНазвание
-
1105211052-3741 BRACKETBRACKET
-
11052A11052-3750 BRACKETBRACKET
-
11052B11052-3761 BRACKET, EMM AND CONDENSORBRACKET, EMM AND CONDENSOR
-
11052C11052-3762 BRACKET, FILTERBRACKET, FILTER
-
1106011060-3800 GASKET, U HOOK, REARGASKET, U HOOK, REAR
-
11060A11060-3801 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
1106111061-3705 GASKETGASKET
-
1322713227-3711 HOUSING, DRAIN PLUGHOUSING, DRAIN PLUG
-
1327013270-3860 PLATEPLATE
-
1327113271-3724 PLATEPLATE
-
13271A13271-3824 PLATEPLATE
-
13271B13271-3831 PLATEPLATE
-
1328013280-3718 HOLDER, EXHAUST VALVEHOLDER, EXHAUST VALVE
-
2701227012-3797 HOOKHOOK
-
27012A27012-3816 HOOKHOOK
-
27012B27012-3822-6Z HOOK, BOW (F.BLACK)HOOK, BOW (F.BLACK)
-
3903139031-3704 CAP, ENDCAP, END
-
59426B59426-3923-8C HULL, COMP (J.WHITE)HULL, COMP (J.WHITE)
-
59437A59437-3733-6Z STABILIZER (LEFT) (F.BLACK)STABILIZER (LEFT) (F.BLACK)
-
59437C59437-3734-6Z STABILIZER (RIGHT) (F.BLACK)STABILIZER (RIGHT) (F.BLACK)
-
5944659446-3749 COVER, JET PUMPCOVER, JET PUMP
-
9200292002-3728 BOLT, 6X16BOLT, 6X16
-
92002A92002-3755 BOLT, 6X20BOLT, 6X20
-
9200992009-3849 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
9201592015-3709 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9202292022-3714 WASHER, 6.2X20X2WASHER, 6.2X20X2
-
9203792037-3009 CLAMPCLAMP
-
9206692066-3744 PLUG, REAR, DRAINPLUG, REAR, DRAIN
-
9207292072-3805 BAND, 340X22BAND, 340X22
-
92072A92072-3871 BAND, L=99BAND, L=99
-
9209392093-3720 SEALSEAL
-
9215092150-3729 BOLT, 6X18BOLT, 6X18
-
92150A92150-3775 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
311311R0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
410410S0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
92150B92150-3822 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
-
9215192151-3746 BOLT, SOCKET, M6, SHOULDERBOLT, SOCKET, M6, SHOULDER
-
9215292152-3715 COLLARCOLLAR
-
9216092160-1012 DAMPERDAMPER
-
92160A92160-3793 DAMPERDAMPER
-
92160B92160-3839 DAMPERDAMPER
-
92160C92160-3840 DAMPERDAMPER
-
9219192191-3856 TUBE, 39X51X70TUBE, 39X51X70
-
9220092200-3779 WASHERWASHER
