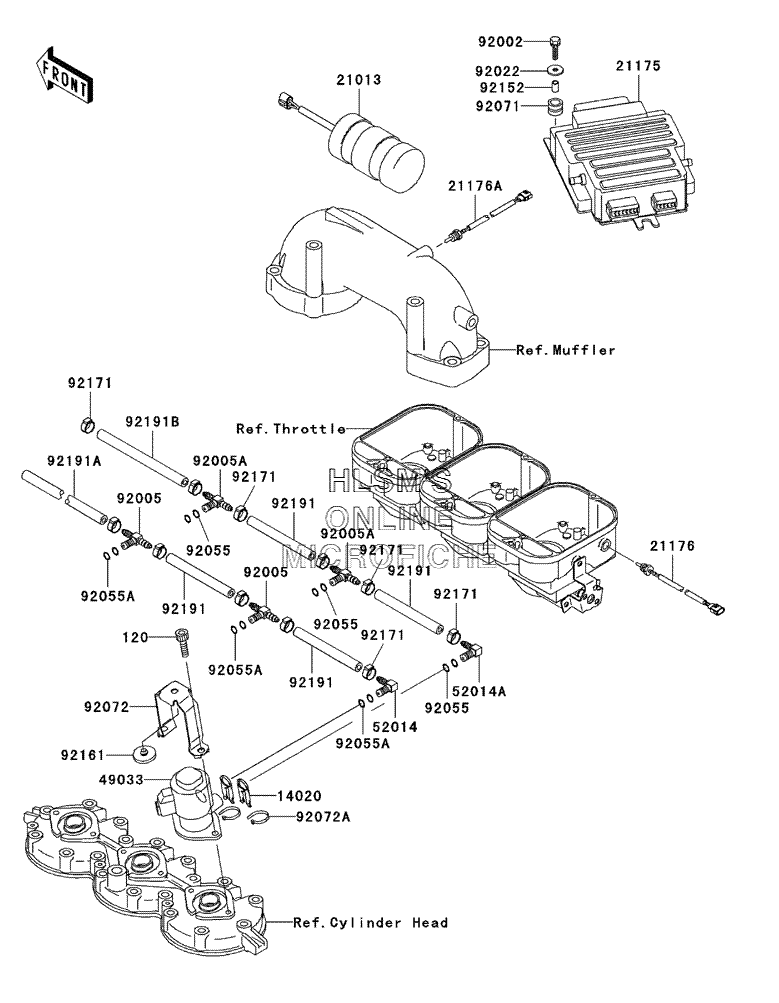

FUEL INJECTION для Kawasaki ULTRA 130 (JH1100-B4) - 2004 года выпуска
-
№АртикулНазвание
-
120120Z0820 BOLT, SOCKETBOLT, SOCKET
-
1402014020-3705 RETAINERRETAINER
-
2101321013-3701 CONDENSERCONDENSER
-
2117521175-3719 CONTROL UNIT, ELECTRONICCONTROL UNIT, ELECTRONIC
-
2117621176-3742 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
21176A21176-3744 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
4903349033-3704 NOZZLE, INJECTIONNOZZLE, INJECTION
-
5201452014-3715 ELBOW, INLETELBOW, INLET
-
52014A52014-3716 ELBOW, OUTLETELBOW, OUTLET
-
9200292002-3775 BOLT, 6X25BOLT, 6X25
-
9200592005-3733 FITTING, INLETFITTING, INLET
-
92005A92005-3734 FITTING, OUTLETFITTING, OUTLET
-
9202292022-3714 WASHER, 6.2X20X2WASHER, 6.2X20X2
-
9205592055-3758 O-RING, OUTLETO-RING, OUTLET
-
92055A92055-3759 O-RING, INLETO-RING, INLET
-
9207192071-3834 GROMMETGROMMET
-
9207292072-3854 BAND, INJECTIONBAND, INJECTION
-
92072A92072-3874 BANDBAND
-
9215292152-3716 COLLAR, 6.2X8X12COLLAR, 6.2X8X12
-
9216192161-3718 DAMPERDAMPER
-
9217192171-3706 CLAMPCLAMP
-
9219192191-3870 TUBE, 6X12X110TUBE, 6X12X110
-
92191A92191-3894 TUBE, 6X12X235TUBE, 6X12X235
-
92191B92191-3921 TUBE, 6X12X180TUBE, 6X12X180
