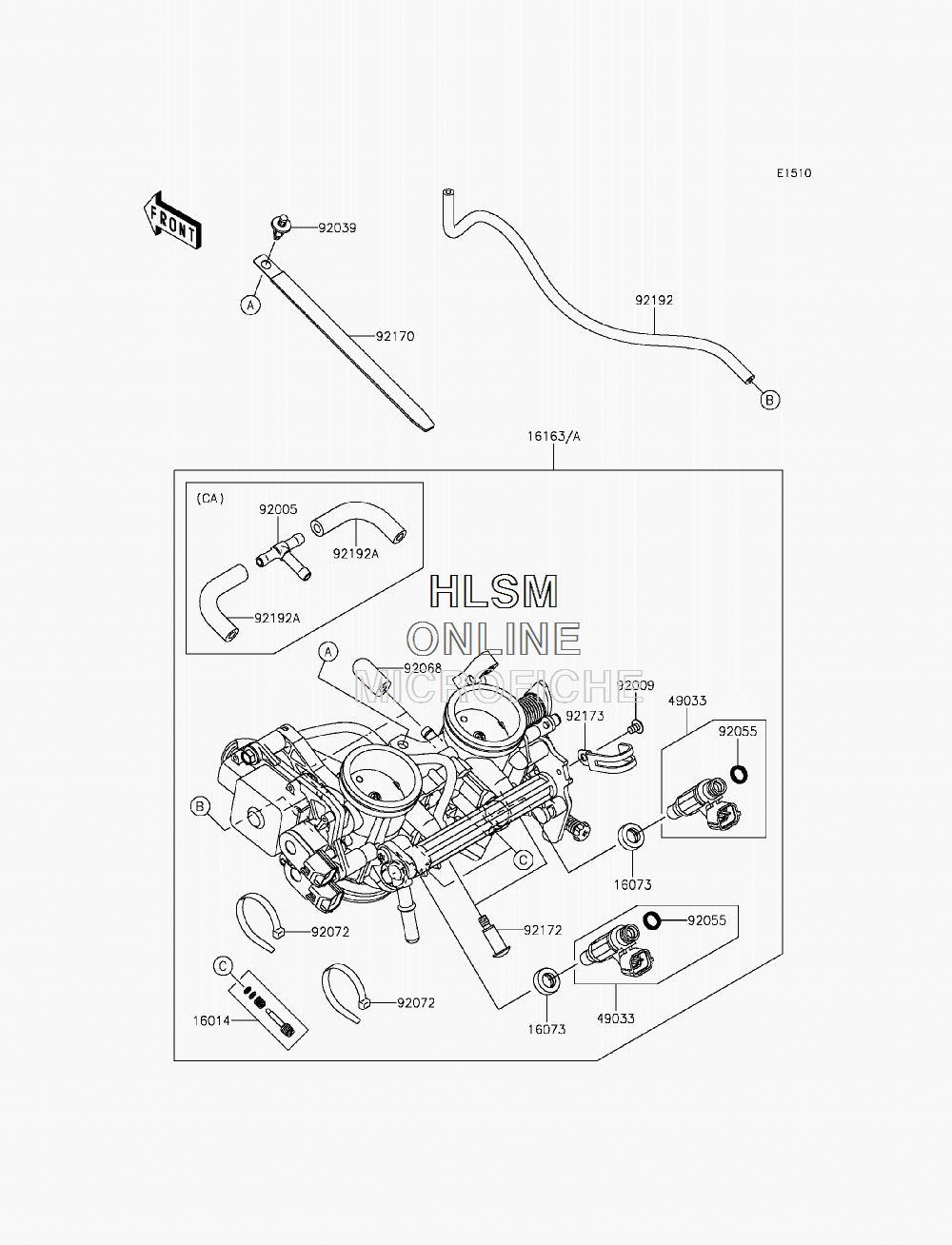

THROTTLE для Kawasaki VERSYS 650 LT (KLE650FGFAS) - 2016 года выпуска

  • №
    Артикул
    Название
  • 16014
    16014-0002 SCREW-PILOT AIR
    SCREW-PILOT AIR
  • 16073
    16073-3707 INSULATOR
    INSULATOR
  • 16163
    16163-0827 THROTTLE-ASSY (EXCEPT CALIF.)
    THROTTLE-ASSY (EXCEPT CALIF.)
  • 16163A
    16163-0838 THROTTLE-ASSY (CALIF. ONLY)
    THROTTLE-ASSY (CALIF. ONLY)
  • 49033
    49033-0011 NOZZLE-INJECTION
    NOZZLE-INJECTION
  • 92005
    92005-0730 FITTING, 3WAY (CALIF. ONLY)
    FITTING, 3WAY (CALIF. ONLY)
  • 92009
    92009-1860 SCREW, CLAMP
    SCREW, CLAMP
  • 92039
    92039-0068 RIVET
    RIVET
  • 92055
    92055-1622 RING-O, INJECTION NOZZLE
    RING-O, INJECTION NOZZLE
  • 92068
    92068-006 PLUG, 12X25 (EXCEPT CALIF.)
    PLUG, 12X25 (EXCEPT CALIF.)
  • 92072
    92072-0012 BAND, SUB-HARNESS
    BAND, SUB-HARNESS
  • 92170
    92170-1114 CLAMP, L=150
    CLAMP, L=150
  • 92172
    92172-0064 SCREW, PIPE INJECTION
    SCREW, PIPE INJECTION
  • 92173
    92173-0288 CLAMP
    CLAMP
  • 92192
    92192-0977 TUBE, 3X6.7X300
    TUBE, 3X6.7X300
  • 92192A
    92192-1045 TUBE (CALIF. ONLY)
    TUBE (CALIF. ONLY)
