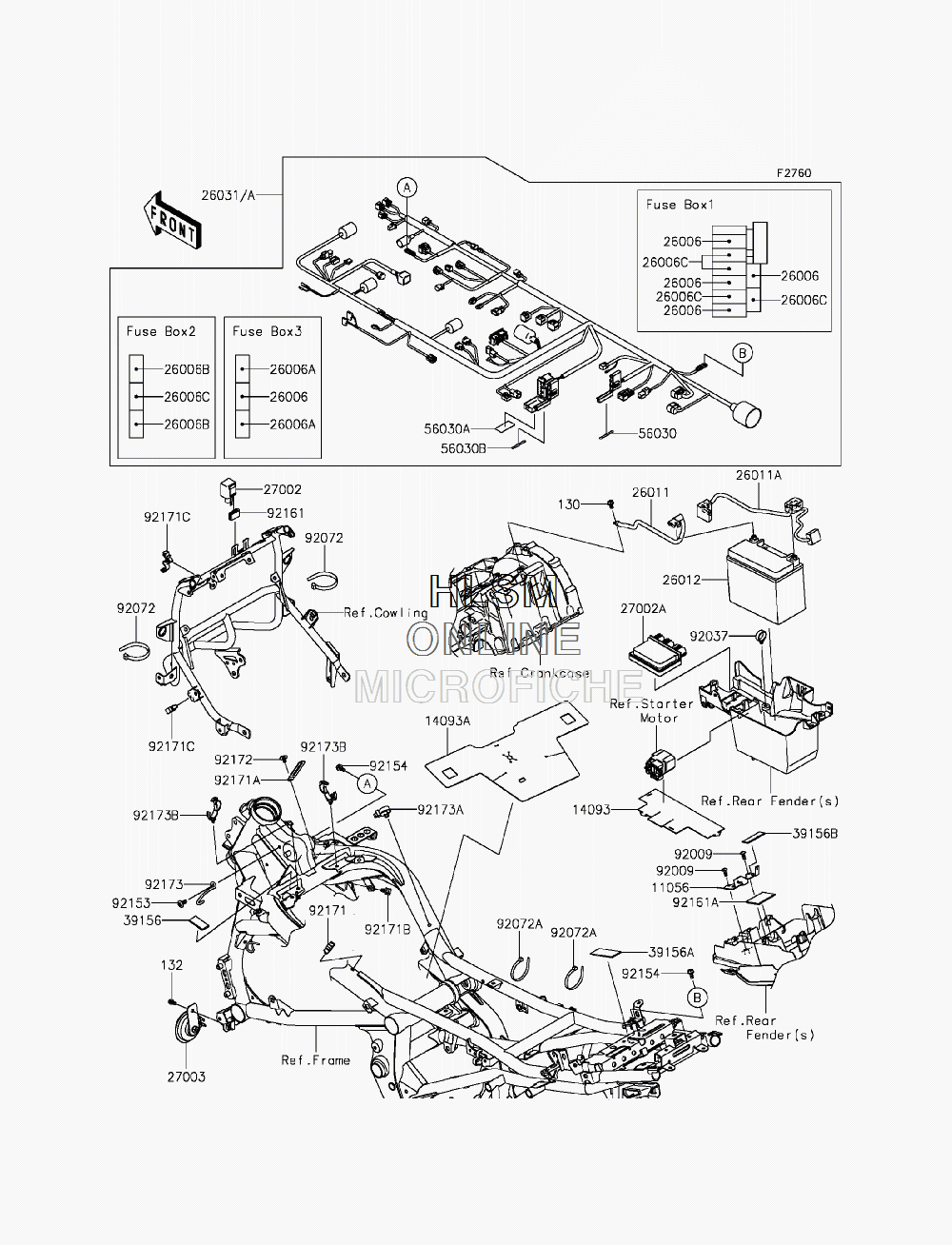

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki VERSYS 650 LT (KLE650FGFAS) - 2016 года выпуска

  • №
    Артикул
    Название
  • 130
    130BA0610 BOLT-FLANGED, 6X10
    BOLT-FLANGED, 6X10
  • 11056
    11056-4346 BRACKET, HARNESS
    BRACKET, HARNESS
  • 14093
    14093-0251 COVER, MG. SWITCH
    COVER, MG. SWITCH
  • 14093A
    14093-0309 COVER, HEAT SHIELD
    COVER, HEAT SHIELD
  • 26006
    26006-0001 FUSE, MINI BLADE, 15A, BLUE
    FUSE, MINI BLADE, 15A, BLUE
  • 26006A
    26006-0020 FUSE, MINI BLADE, 25A, NATURAL
    FUSE, MINI BLADE, 25A, NATURAL
  • 26006B
    26006-1077 FUSE, MINI BLADE, 5A, TAN
    FUSE, MINI BLADE, 5A, TAN
  • 26006C
    26006-1078 FUSE, MINI BLADE, 10A, RED
    FUSE, MINI BLADE, 10A, RED
  • 26011
    26011-0301 WIRE-LEAD, BATTERY(-)
    WIRE-LEAD, BATTERY(-)
  • 26011A
    26011-0876 WIRE-LEAD, BATTERY(+)
    WIRE-LEAD, BATTERY(+)
  • 26012
    26012-0606 BATTERY, FTX12-BS, 12V 10AH
    BATTERY, FTX12-BS, 12V 10AH
  • 26031
    26031-1890 HARNESS, MAIN (EXCEPT CALIF.)
    HARNESS, MAIN (EXCEPT CALIF.)
  • 26031A
    26031-1892 HARNESS, MAIN (CALIF. ONLY)
    HARNESS, MAIN (CALIF. ONLY)
  • 27002
    27002-0006 RELAY-ASSY, SIGNAL LAMP
    RELAY-ASSY, SIGNAL LAMP
  • 27002A
    27002-0025 RELAY-ASSY, BOX
    RELAY-ASSY, BOX
  • 27003
    27003-0056 HORN
    HORN
  • 39156
    39156-0831 PAD, 20X40X3
    PAD, 20X40X3
  • 39156A
    39156-1908 PAD, 70X27X2
    PAD, 70X27X2
  • 39156B
    39156-1909 PAD, 50X18X2
    PAD, 50X18X2
  • 56030
    56030-0400 LABEL, FUSE BOX3
    LABEL, FUSE BOX3
  • 56030A
    56030-0705 LABEL, FUSE BOX1
    LABEL, FUSE BOX1
  • 56030B
    56030-0879 LABEL, FUSE BOX2
    LABEL, FUSE BOX2
  • 92009
    92009-1197 SCREW, TAPPING, 5X14
    SCREW, TAPPING, 5X14
  • 92037
    92037-1827 CLAMP, HOSE
    CLAMP, HOSE
  • 92072
    92072-1195 BAND, L=202
    BAND, L=202
  • 92072A
    92072-1197 BAND, L=365
    BAND, L=365
  • 92153
    92153-1446 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92154
    92154-1050 BOLT, FLANGED, 6X12
    BOLT, FLANGED, 6X12
  • 92161
    92161-1443 DAMPER, 15X25X8.5
    DAMPER, 15X25X8.5
  • 92161A
    92161-1757 DAMPER, 40X50X2
    DAMPER, 40X50X2
  • 92171
    92171-0316 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92171A
    92171-0462 CLAMP
    CLAMP
  • 92171B
    92171-0640 CLAMP
    CLAMP
  • 92171C
    92171-0782 CLAMP
    CLAMP
  • 92172
    92172-0005 SCREW, 6X10
    SCREW, 6X10
  • 92173
    92173-1329 CLAMP, HEAD GUSSET, LEFT HAND
    CLAMP, HEAD GUSSET, LEFT HAND
  • 92173A
    92173-1336 CLAMP, CABLE STRAP
    CLAMP, CABLE STRAP
  • 92173B
    92173-1394 CLAMP, 20MM DIA.
    CLAMP, 20MM DIA.
  • 132
    132BB0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
