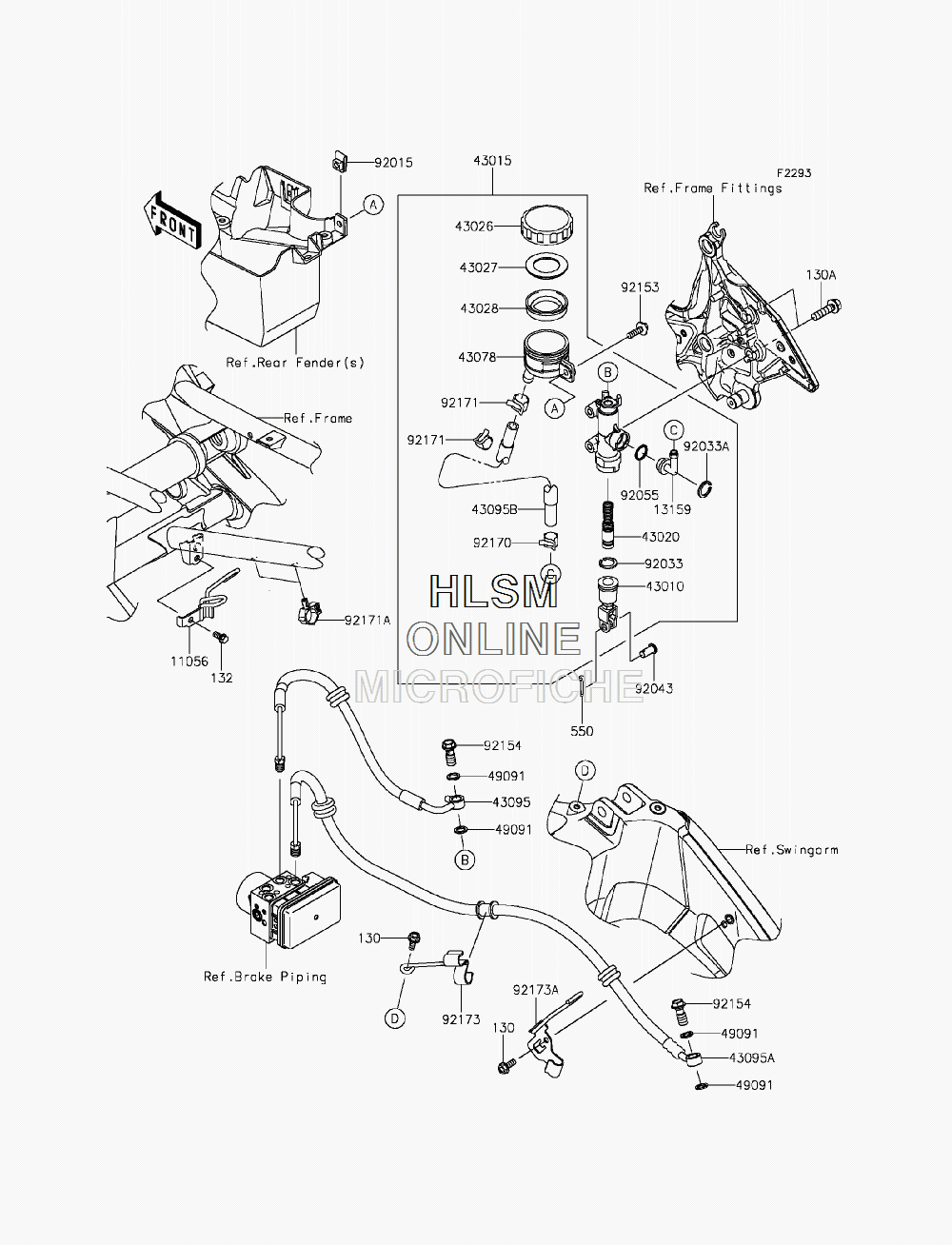

BRAKE - MASTER CYLINDER - REAR для Kawasaki VERSYS 650 LT (KLE650FGFAS) - 2016 года выпуска

  • №
    Артикул
    Название
  • 130BB0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 130A
    130CA0830 BOLT-FLANGED, 8X30
    BOLT-FLANGED, 8X30
  • 132
    132BB0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 550
    550AA2015 PIN-COTTER, 2.0X15
    PIN-COTTER, 2.0X15
  • 11056
    11056-4072 BRACKET, FRAME COMP
    BRACKET, FRAME COMP
  • 13159
    13159-1056 CONNECTOR
    CONNECTOR
  • 43010
    43010-1062 ROD-ASSY-BRAKE
    ROD-ASSY-BRAKE
  • 43015
    43015-0602 CYLINDER-ASSY-MASTER, REAR
    CYLINDER-ASSY-MASTER, REAR
  • 43020
    43020-1094 PISTON-COMP-BRAKE
    PISTON-COMP-BRAKE
  • 43026
    43026-1051 CAP-BRAKE
    CAP-BRAKE
  • 43027
    43027-1051 PLATE-DIAPHRAGM
    PLATE-DIAPHRAGM
  • 43028
    43028-1057 DIAPHRAGM, MASTER CYLINDER
    DIAPHRAGM, MASTER CYLINDER
  • 43078
    43078-1082 RESERVOIR, REAR MASTER CYLINDER
    RESERVOIR, REAR MASTER CYLINDER
  • 43095
    43095-0823 HOSE-BRAKE, REAR M/C-ABS UNIT
    HOSE-BRAKE, REAR M/C-ABS UNIT
  • 43095A
    43095-0824 HOSE-BRAKE, ABS UNIT-REAR CAL.
    HOSE-BRAKE, ABS UNIT-REAR CAL.
  • 43095B
    43095-0842 HOSE-BRAKE, 500MM
    HOSE-BRAKE, 500MM
  • 49091
    49091-0001 WASHER-SEAL, 10.1X14.5X1.5
    WASHER-SEAL, 10.1X14.5X1.5
  • 92015
    92015-1602 NUT, 6MM
    NUT, 6MM
  • 92033
    92033-0079 RING-SNAP, 20.9X24.6X1.2
    RING-SNAP, 20.9X24.6X1.2
  • 92033A
    92033-1186 RING-SNAP, 20.5MM
    RING-SNAP, 20.5MM
  • 92043
    92043-0182 PIN
    PIN
  • 92055
    92055-0741 RING-O, 14.8X2.4
    RING-O, 14.8X2.4
  • 92153
    92153-0725 BOLT, 6X22
    BOLT, 6X22
  • 92154
    92154-0732 BOLT, FLANGED, 10X23
    BOLT, FLANGED, 10X23
  • 92170
    92170-1091 CLAMP, HOSE
    CLAMP, HOSE
  • 92171
    92171-0463 CLAMP, HOSE
    CLAMP, HOSE
  • 92171A
    92171-0955 CLAMP
    CLAMP
  • 92173
    92173-1290 CLAMP, SWING ARM, FRONT
    CLAMP, SWING ARM, FRONT
  • 92173A
    92173-1291 CLAMP, SWING ARM
    CLAMP, SWING ARM
